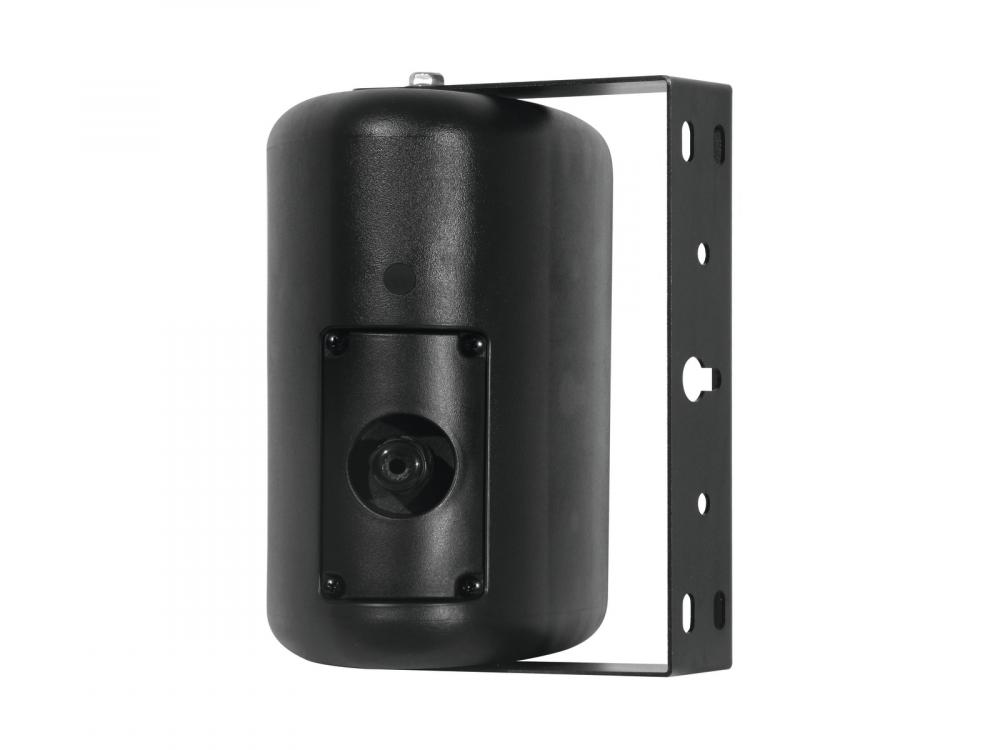

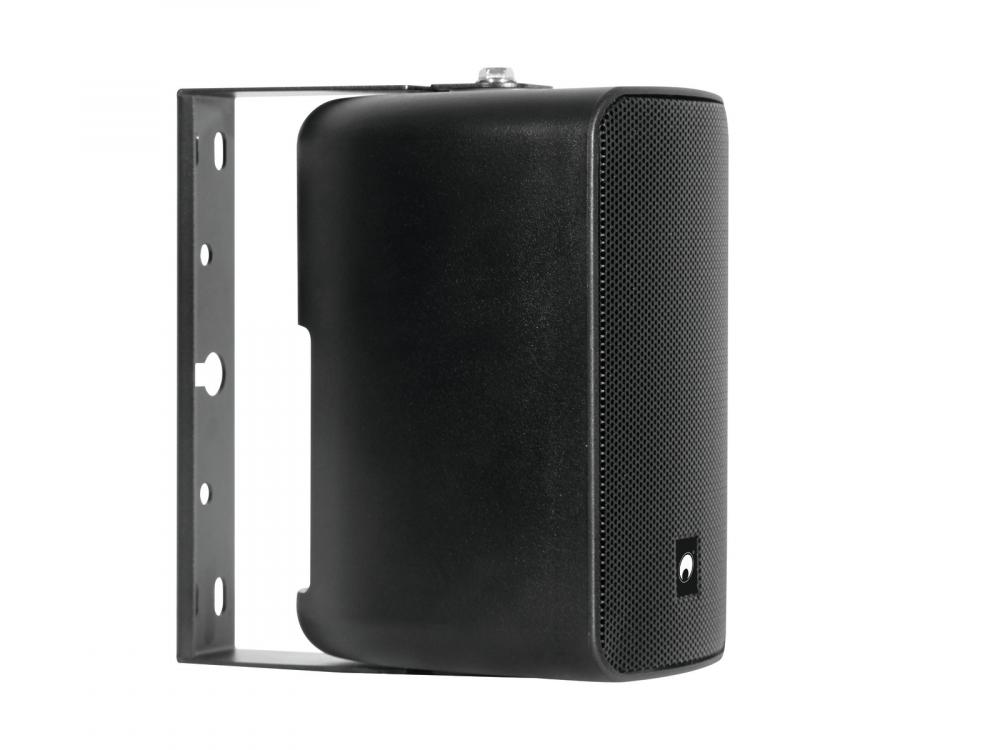

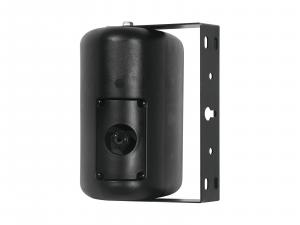

OMNITRONIC ODP-204 Installation Speaker 16 ohms black 2x

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC ODP-204 Installation Speaker 16 ohms black 2x

Info
order code
11036950
product link
EAN
4026397629682
Product Name
OMNITRONIC ODP-204 Installation Speaker 16 ohms black 2x
technical overview

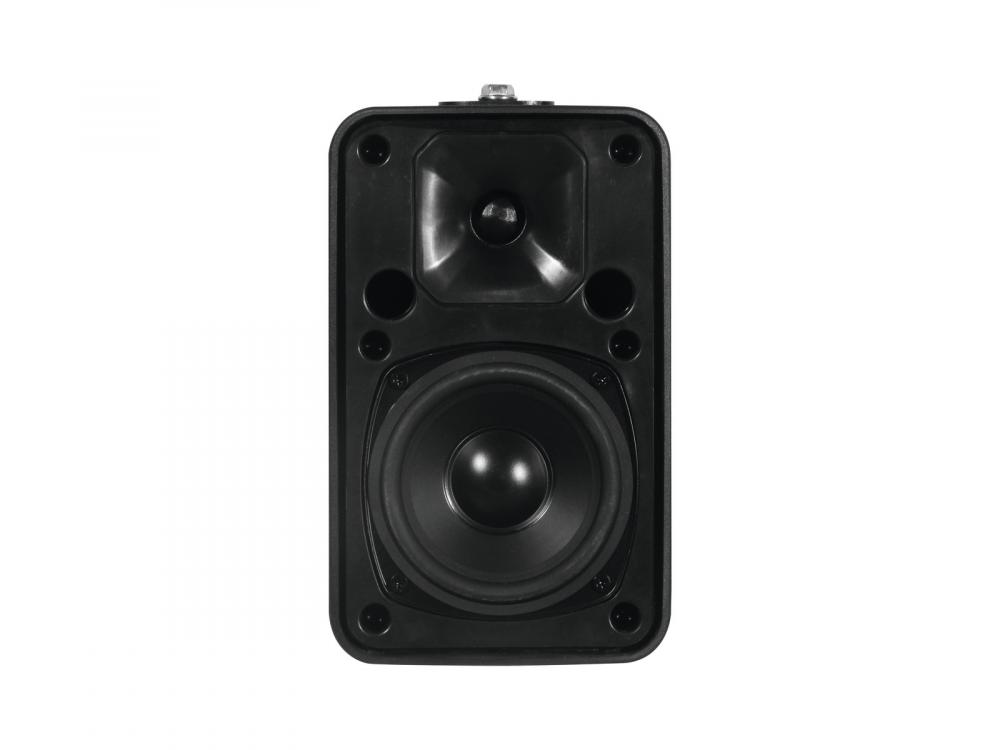

Components: 10 cm woofer (4"), 2 cm tweeter (0.8")

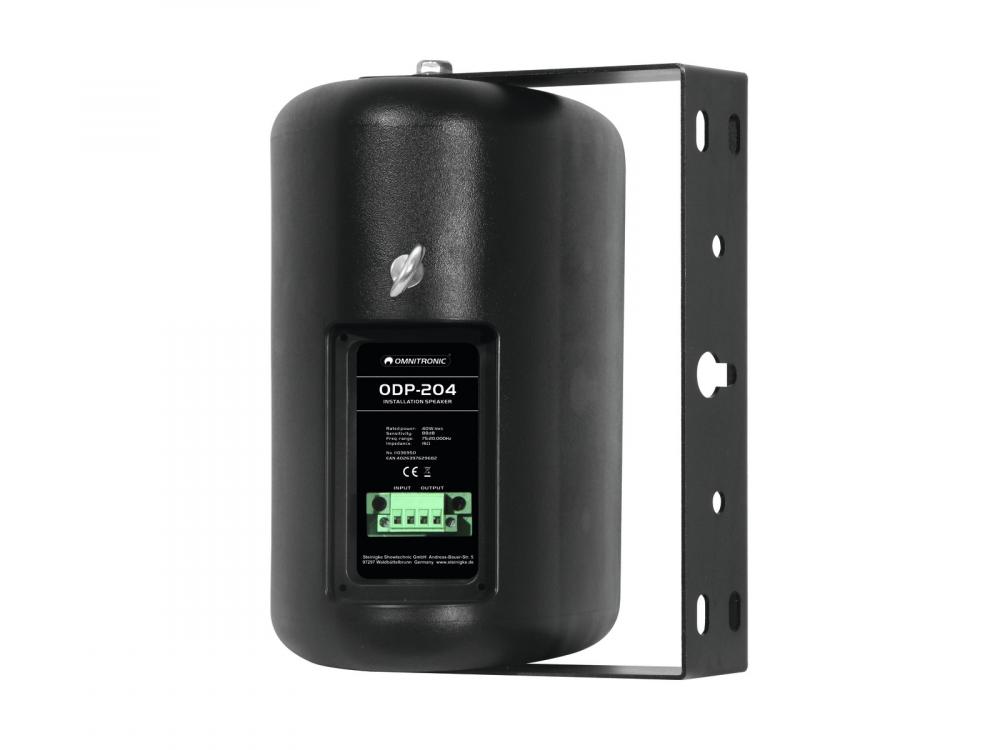

Connection: screw terminals
Sensitivity: 88 dB
Maximum SPL: 103 dB
Dispersion angle: 120° x 90°
Dimensions (L x W x H): 170 x 141 x 230 mm
IP classification: IP54
Weight: 5,10 kg
Size of woofer: (4") ca. 10 cm
Rated power: 40 W RMS
Program power: 80 W
Frequency range: 75 - 20000 Hz
Height: 23 cm
Depth: 17 cm
Width: 14,1 cm
Impedance: 16 Ohm
Attachment: Mounting incl.
main features
2 weatherproof 4" wall speakers with mount and 40 W RMS
-16-ohm PA speaker systems with an excellent sound for general applications
-2-way system with 10 cm woofer (4") and 2 cm dome tweeter (0.8")
-Weatherproof plastic cabinet (IP54)
-Swivel mounting bracket for wall installation
-Swivel and tilting wall bracket for wall installation
-Connection via screw terminals as accessory

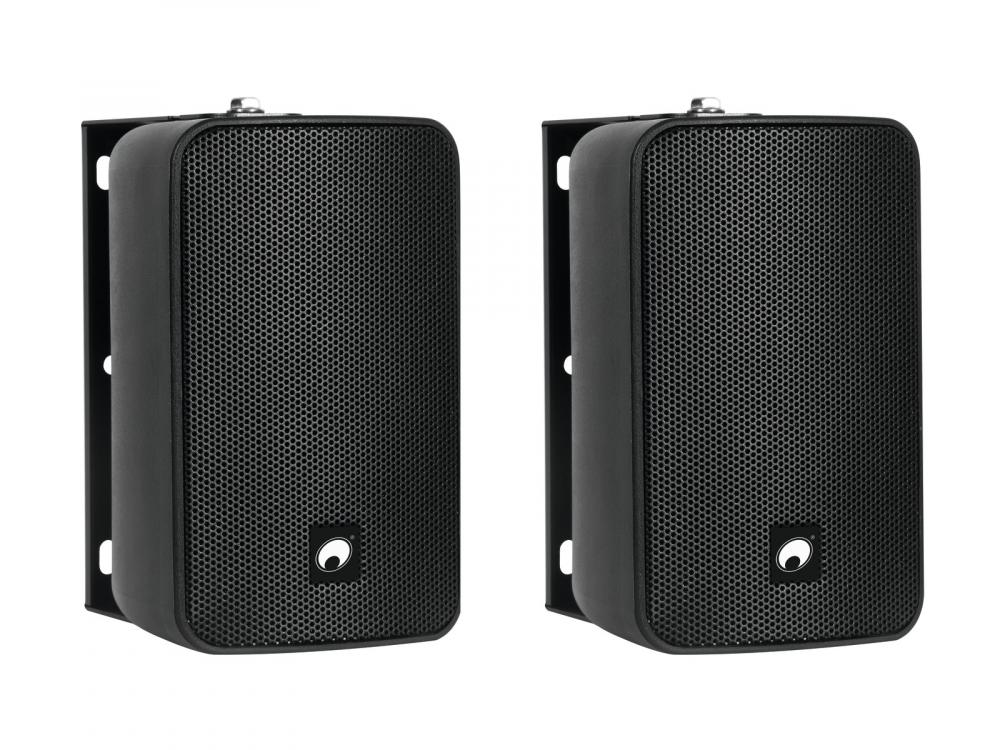

-Packed as a pair
-Ideal for PA applications in restaurants, bars, shops or conferences
Audio
Frequency response, from
75 Hz
Frequency response, to
20000 Hz
impedance
16 ohm
Electrical
IP rating
54
power consumption watt, max
40.00 W
Mechanical
weight
5.10 kg
width
141.00 mm
height
230.00 mm
length
170.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00113908.pdf
