| Info | |
|---|---|
| order code |
11036951
|
| product link | |
| EAN |
4026397629699
|
| Product Name |

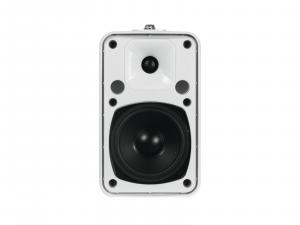

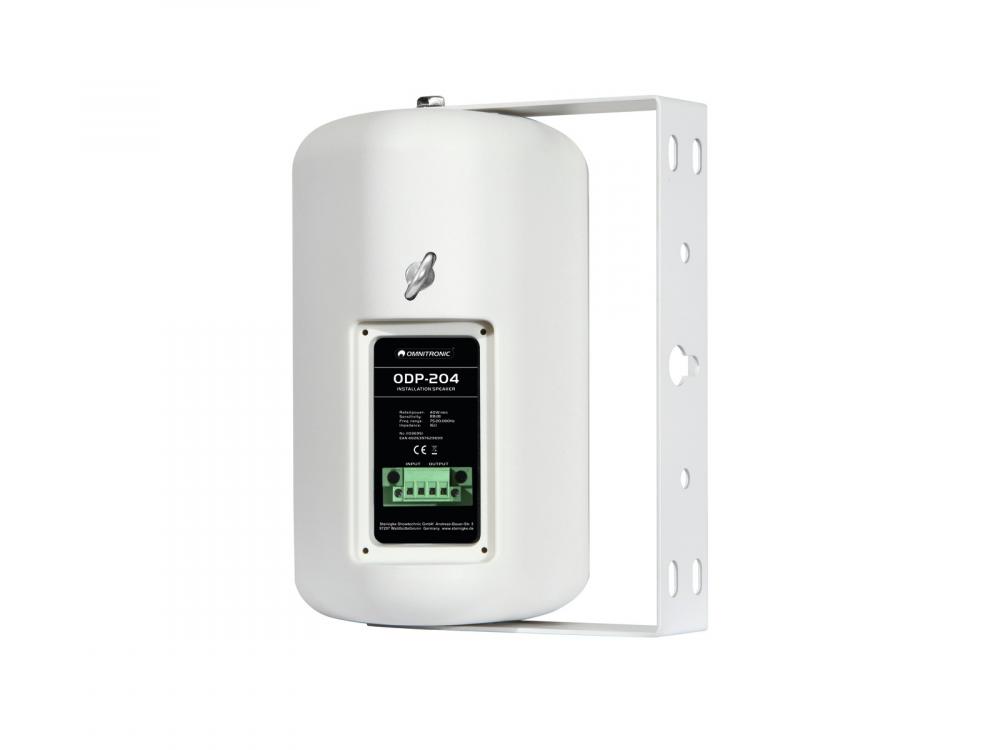

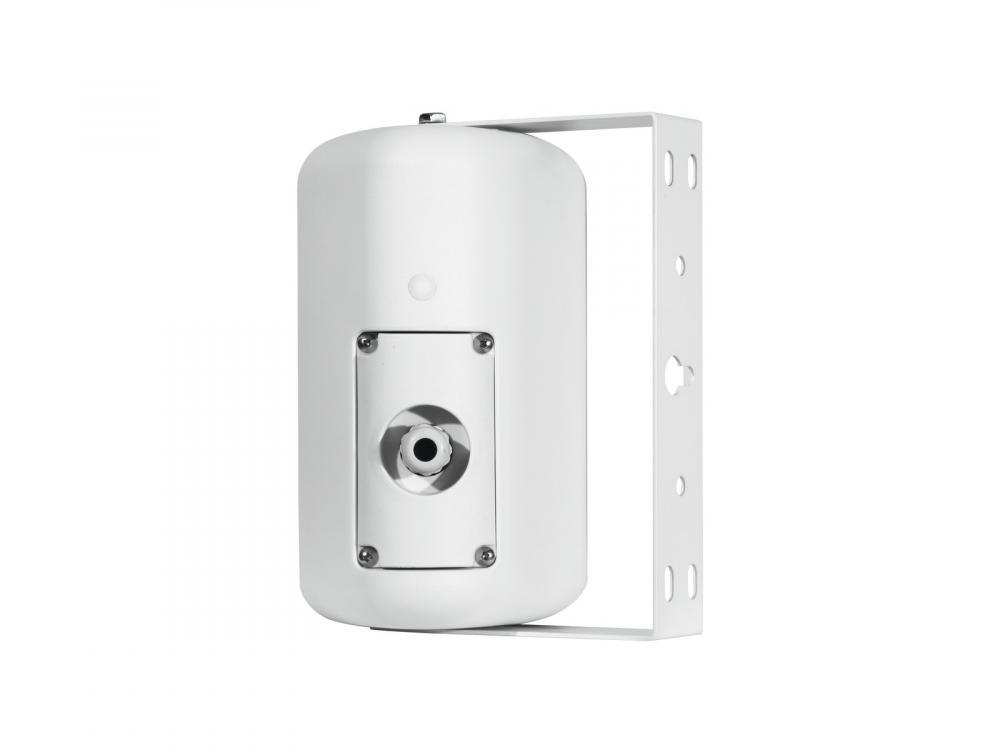

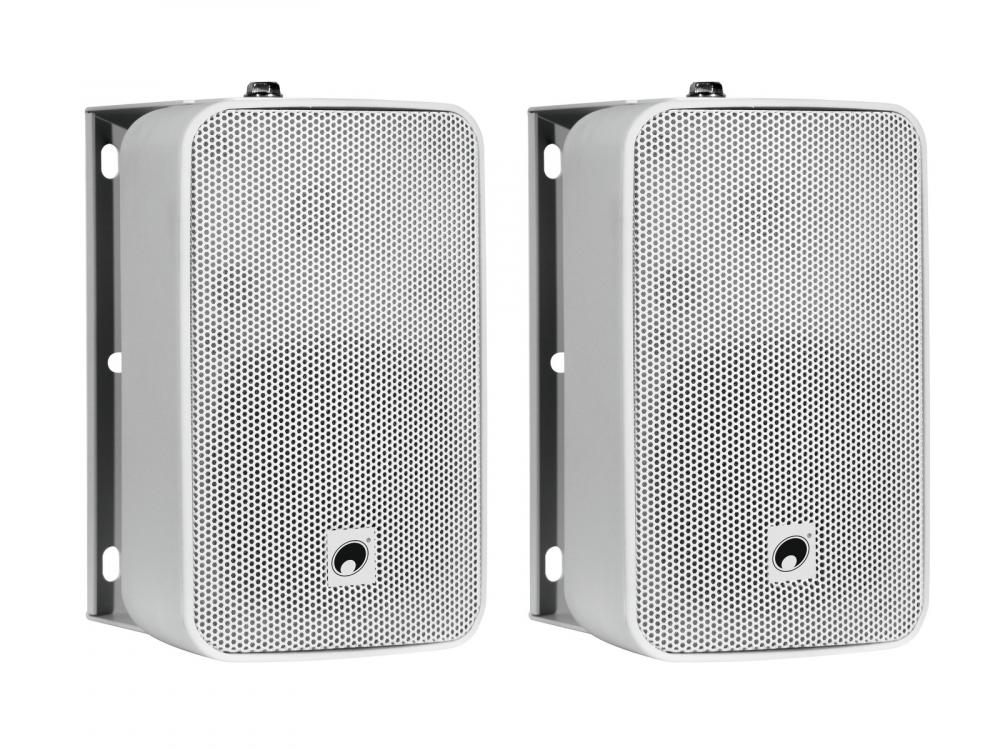

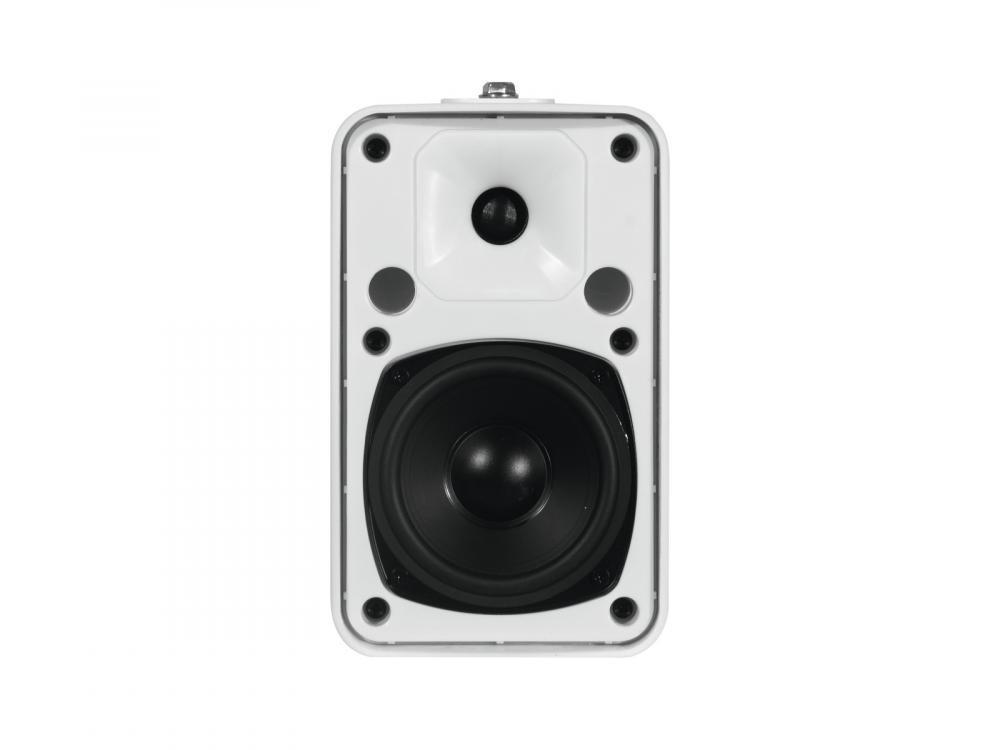

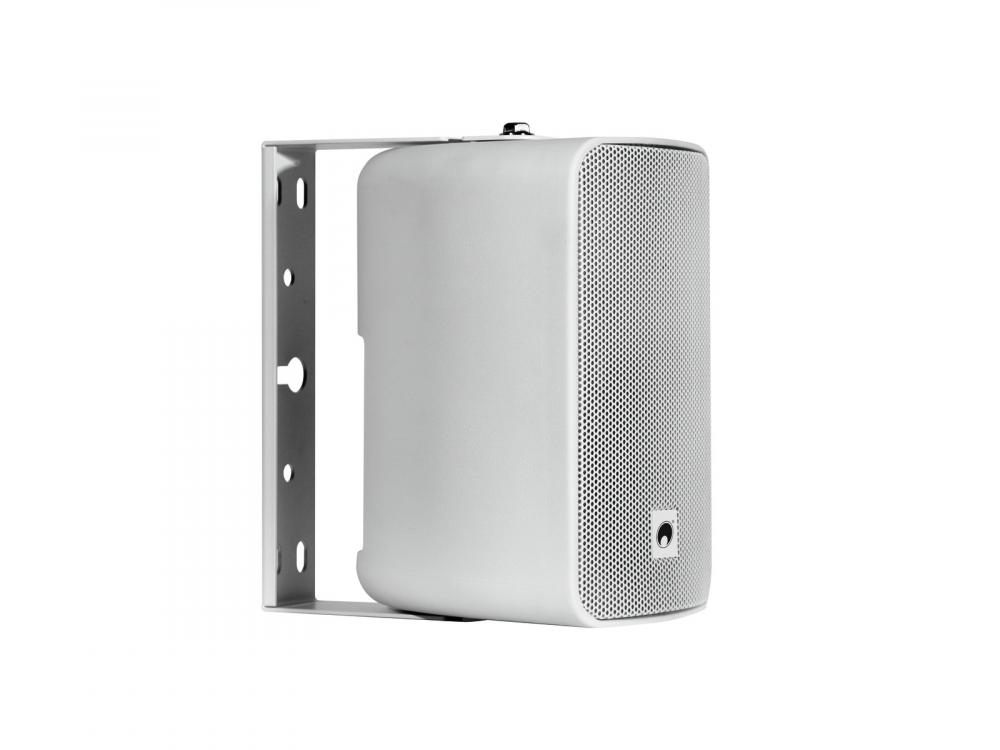

OMNITRONIC ODP-204 Installation Speaker 16 ohms white 2x
|
| technical overview |
Components: 10 cm woofer (4"), 2 cm tweeter (0.8") Connection: screw terminals Sensitivity: 88 dB Maximum SPL: 103 dB Dispersion angle: 120° x 90° Dimensions (L x W x H): 170 x 141 x 230 mm IP classification: IP54 Weight: 5,10 kg Size of woofer: (4") ca. 10 cm Rated power: 40 W RMS Program power: 80 W Frequency range: 75 - 20000 Hz Height: 23 cm Depth: 17 cm Width: 14,1 cm Impedance: 16 Ohm Attachment: Mounting incl. |
| main features |
2 weatherproof 4" wall speakers with mount and 40 W RMS -16-ohm PA speaker systems with an excellent sound for general applications -2-way system with 10 cm woofer (4") and 2 cm dome tweeter (0.8") -Weatherproof plastic cabinet (IP54) -Swivel mounting bracket for wall installation -Swivel and tilting wall bracket for wall installation -Connection via screw terminals as accessory -Packed as a pair -Ideal for PA applications in restaurants, bars, shops or conferences |
| Audio | |
| Frequency response, from |
75 Hz
|
| Frequency response, to |
20000 Hz
|
| impedance |
16 ohm
|
| Electrical | |
| IP rating |
54
|
| power consumption watt, max |
40.00 W
|
| Mechanical | |
| weight |
5.10 kg
|
| width |
141.00 mm
|
| height |
230.00 mm
|
| length |
170.00 mm
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00113908.pdf |
