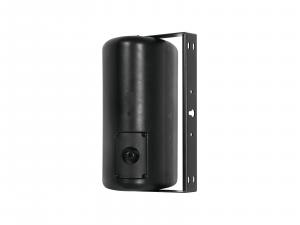

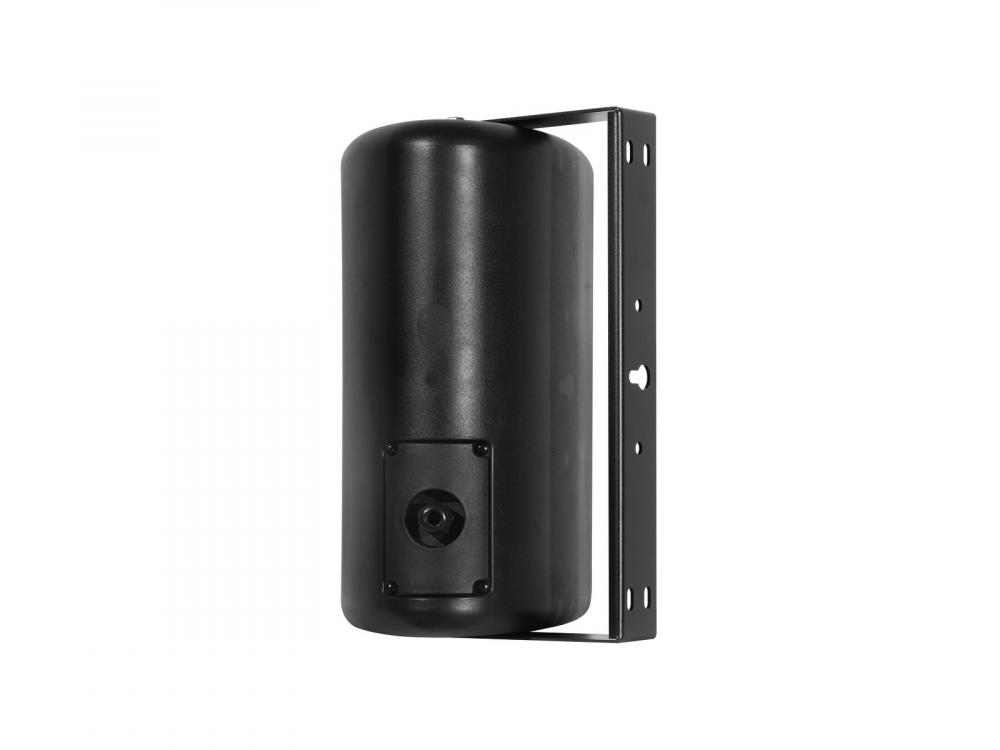

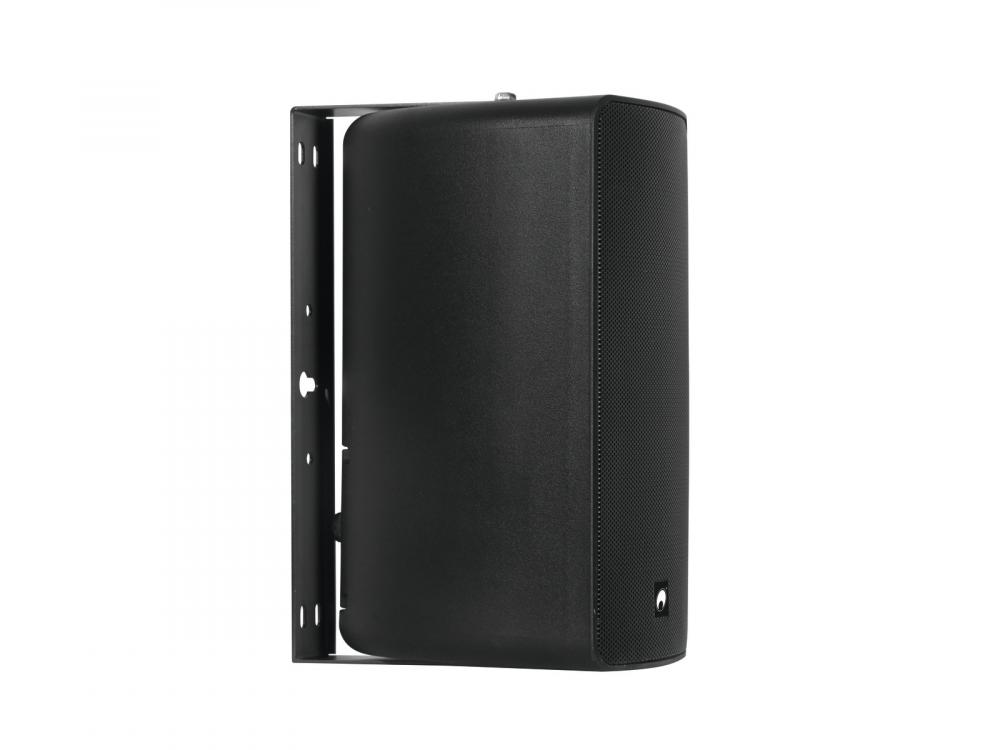

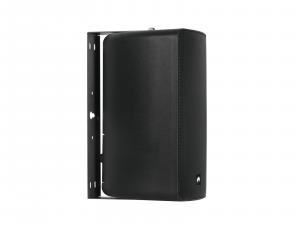

OMNITRONIC ODP-206 Installation Speaker 16 ohms black 2x

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC ODP-206 Installation Speaker 16 ohms black 2x

Info
order code
11036954
product link
EAN
4026397629729
Product Name
OMNITRONIC ODP-206 Installation Speaker 16 ohms black 2x
technical overview

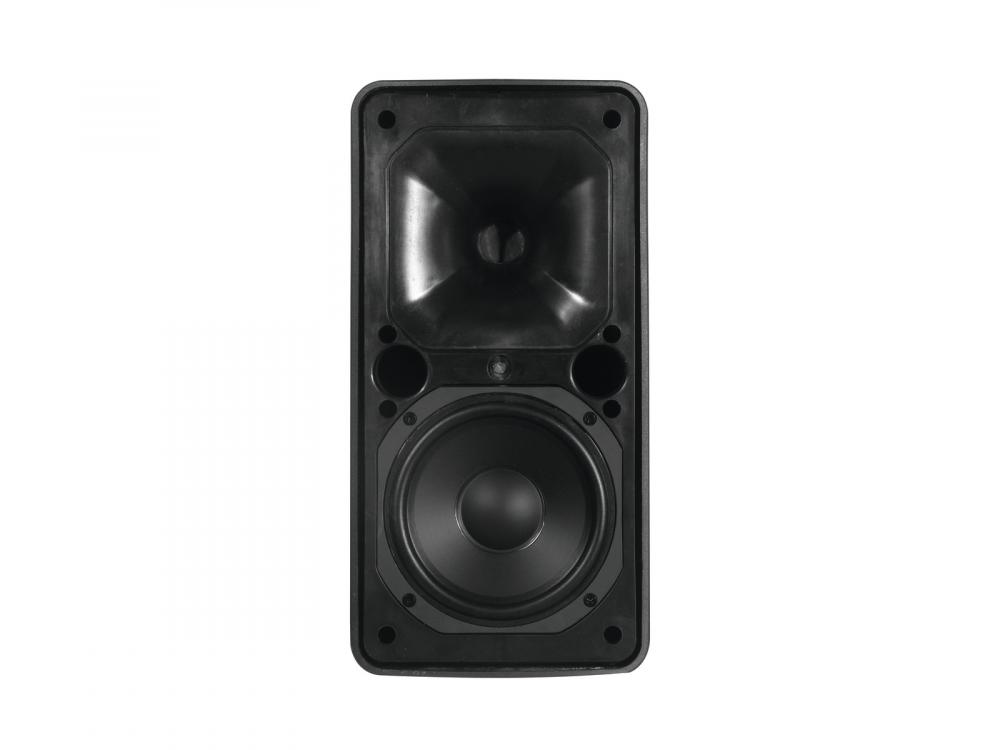

Components: 15 cm woofer (6"), 2.5 cm tweeter (1")

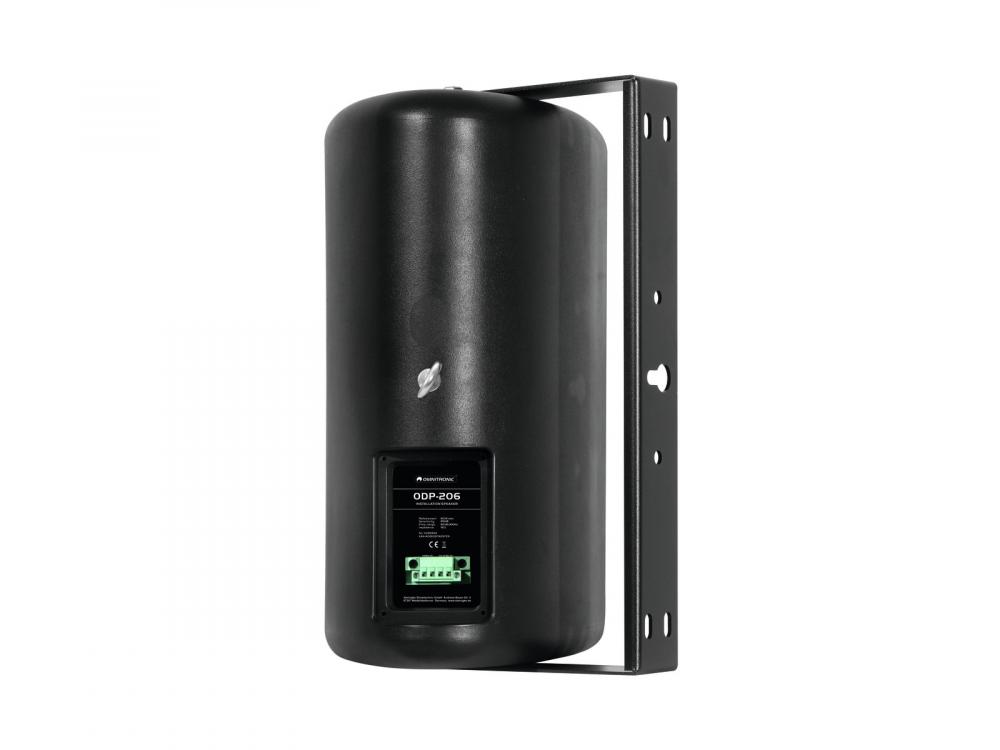

Connection: screw terminals
Sensitivity: 89 dB
Maximum SPL: 110 dB
Dispersion angle: 90° x 60°
Dimensions (L x W x H): 224 x 182 x 362 mm
IP classification: IP54
Weight: 12,1 kg
Size of woofer: (6,5") ca. 17 cm
Rated power: 80 W RMS
Program power: 160 W
Frequency range: 60 - 18000 Hz
Height: 36,2 cm
Depth: 22,4 cm
Width: 18,2 cm
Impedance: 16 Ohm
Attachment: Mounting incl.
main features

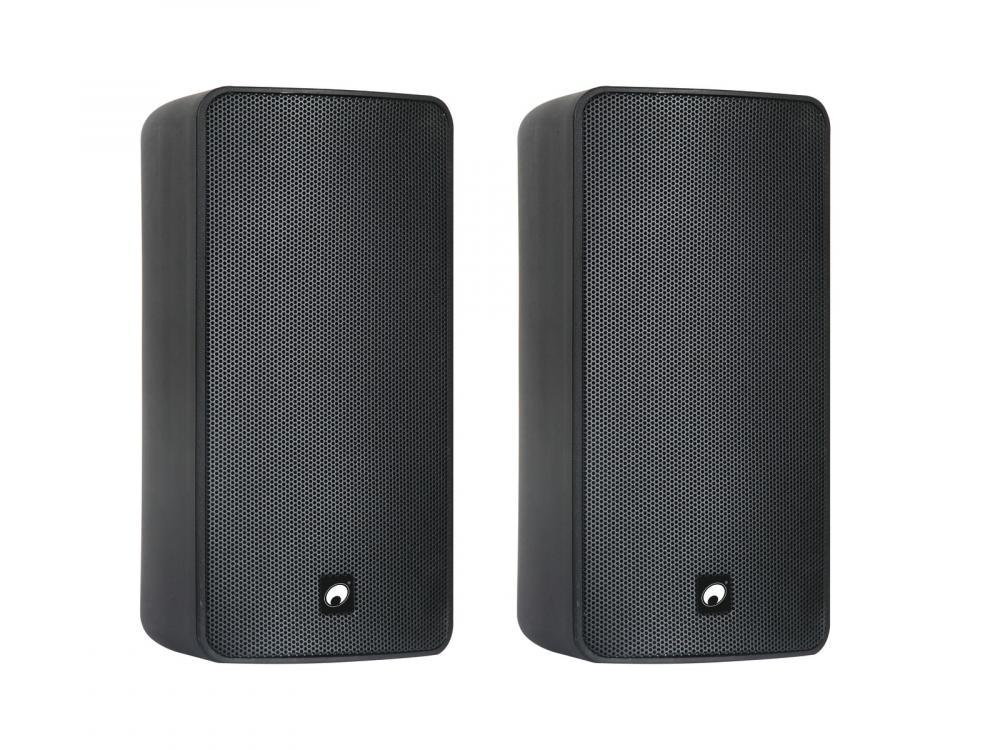

2 weatherproof 6" wall speakers with mount and 80 W RMS
-16-ohm PA speaker systems with an excellent sound for general applications
-2-way system with 15 cm woofer (6") and 2.5 cm dome tweeter (1")
-Weatherproof plastic cabinet (IP54)
-Swivel mounting bracket for wall installation
-Swivel and tilting wall bracket for wall installation
-Connection via screw terminals as accessory
-Packed as a pair
-Ideal for PA applications in restaurants, bars, shops or conferences
Audio
Frequency response, from
60 Hz
Frequency response, to
18000 Hz
impedance
16 ohm
Electrical
IP rating
54
power consumption watt, max
80.00 W
Mechanical
weight
12.10 kg
width
182.00 mm
height
362.00 mm
length
224.00 mm
