Info | |
---|---|
order code |
11038940
|
product link | |
EAN |
4026397565348
|
Product Name |

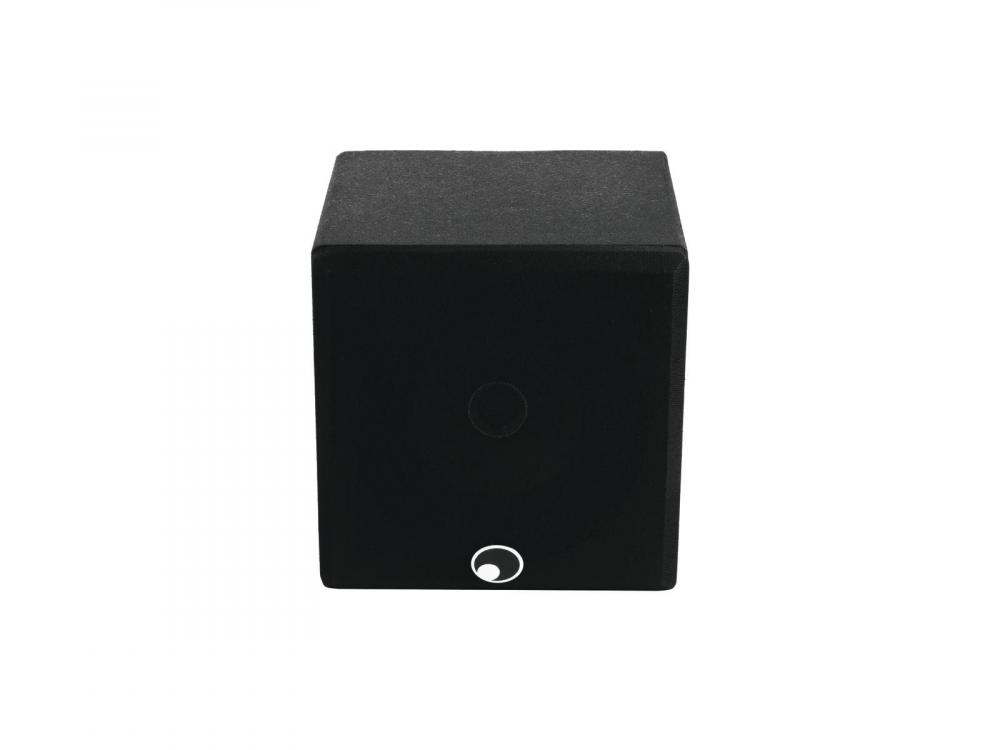

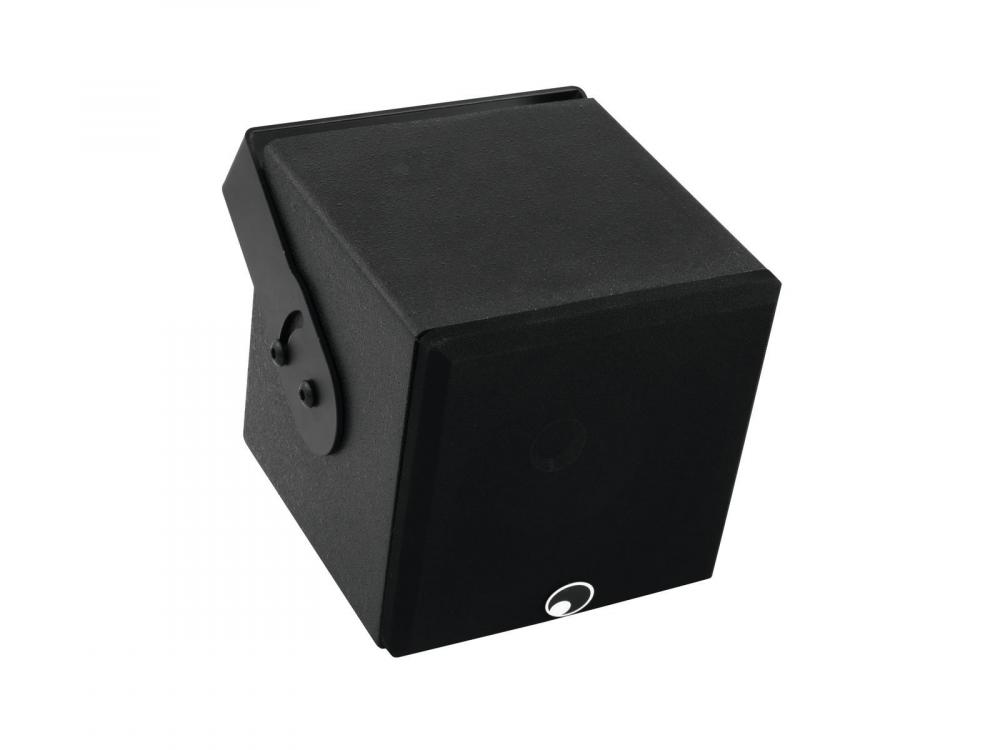

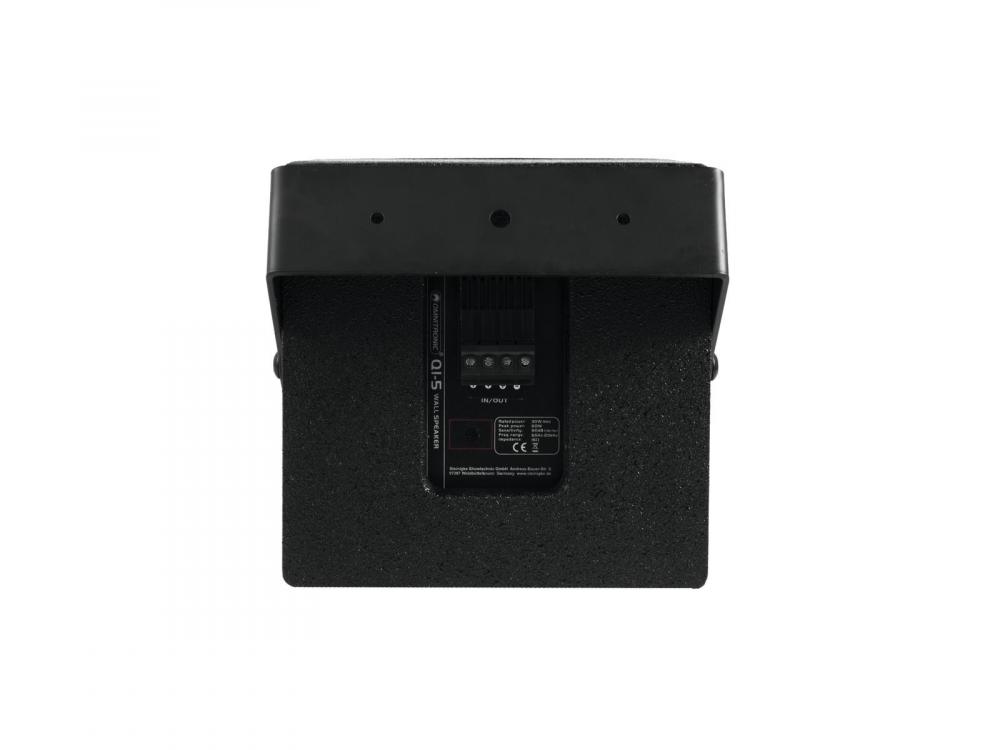

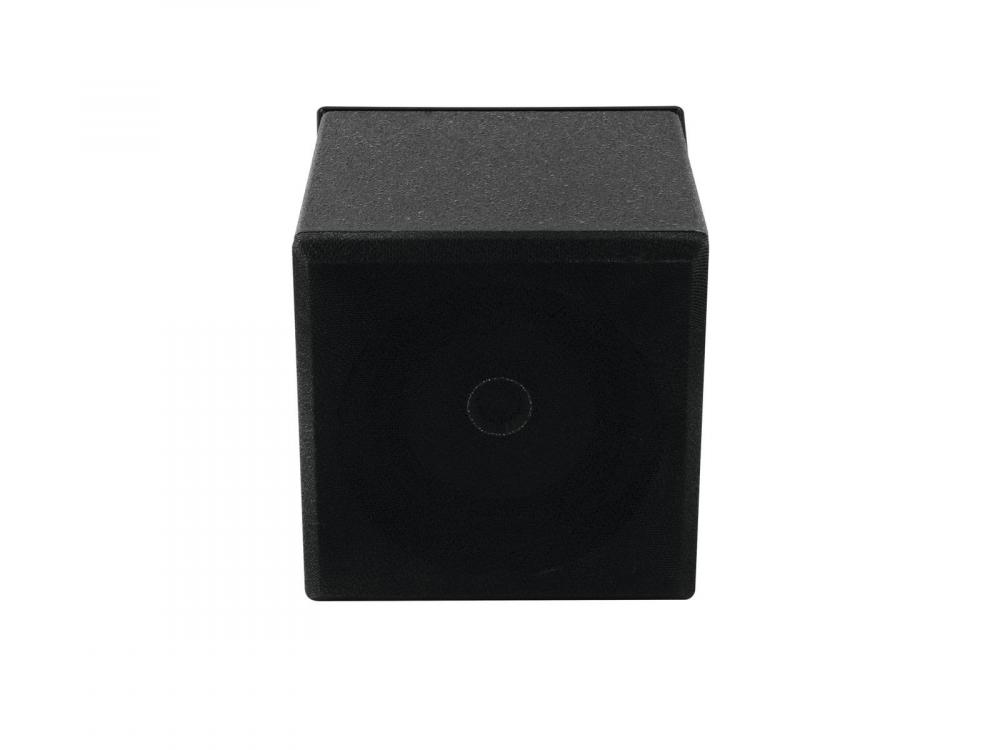

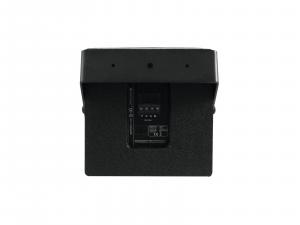

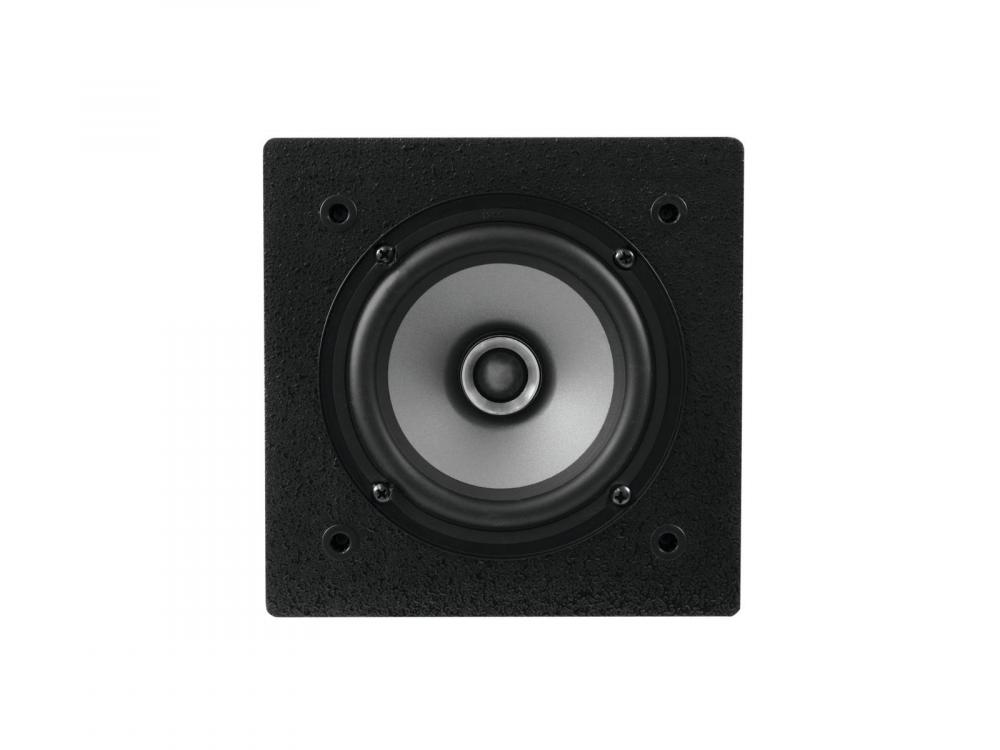

OMNITRONIC QI-5 Coaxial Wall Speaker black
|
technical overview |
Components: 13 cm woofer (5"), 18 mm dome tweeter Connection: Screw plug terminal Sensitivity: 90 dB Dimensions (L x W x H): 188 x 182 x 181 mm Weight: 4 kg Program power: 60 W Rated power: 30 W RMS Size of woofer: (5") ca. 13 cm Frequency range: 65 - 20000 Hz Height: 18,1 cm Depth: 18,2 cm Width: 18,8 cm Impedance: 16 Ohm |
main features |
Speaker with mount, 5" woofer, 0,7" dome tweeter, 30 W RMS -16-ohm PA wall speaker with an excellent sound for general applications -2-way coaxial system with 13 cm woofer (5") -Quality MDF cabinet 16 mm -Scratch-resistant lacquer surface in black or white -Movable mounting bracket for ceiling or wall installation -Screw plug terminal for parallel connection -4 x M8 threaded inserts -Ideal for PA applications in restaurants, bars, shops or conferences |
Audio | |
Frequency response, from |
65 Hz
|
Frequency response, to |
20000 Hz
|
impedance |
16 ohm
|
Electrical | |
power consumption watt, max |
30.00 W
|
Mechanical | |
weight |
4.00 kg
|
width |
182.00 mm
|
height |
181.00 mm
|
length |
188.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00096369.pdf |
