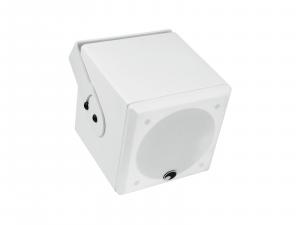

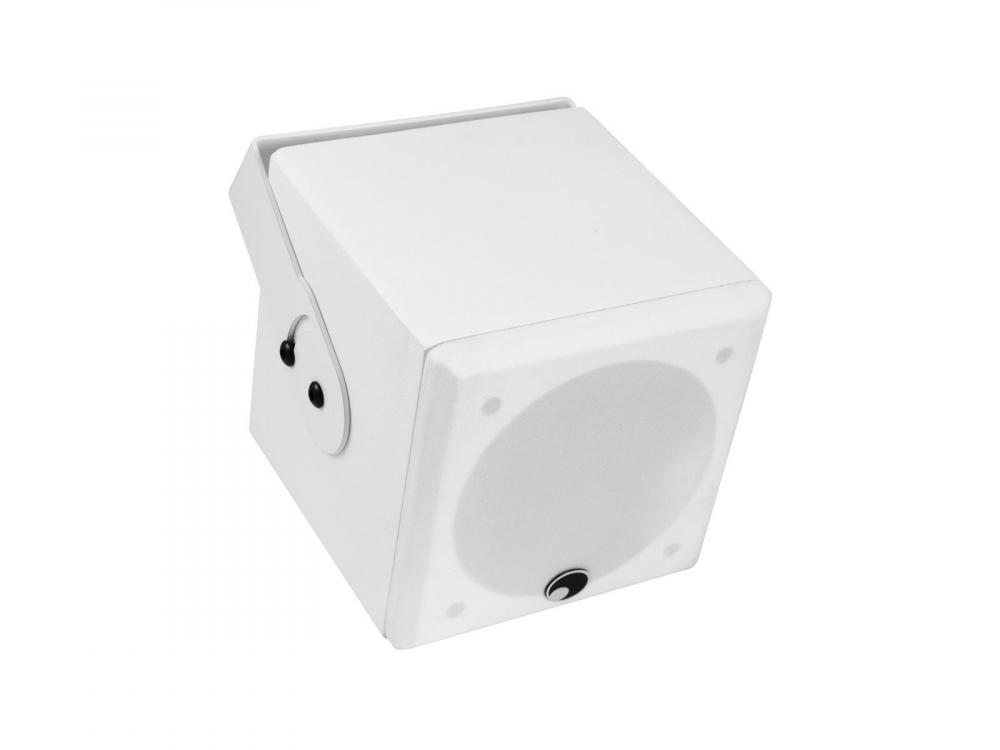

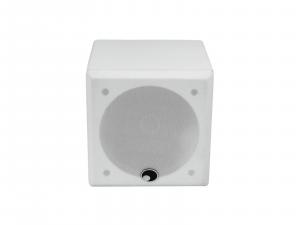

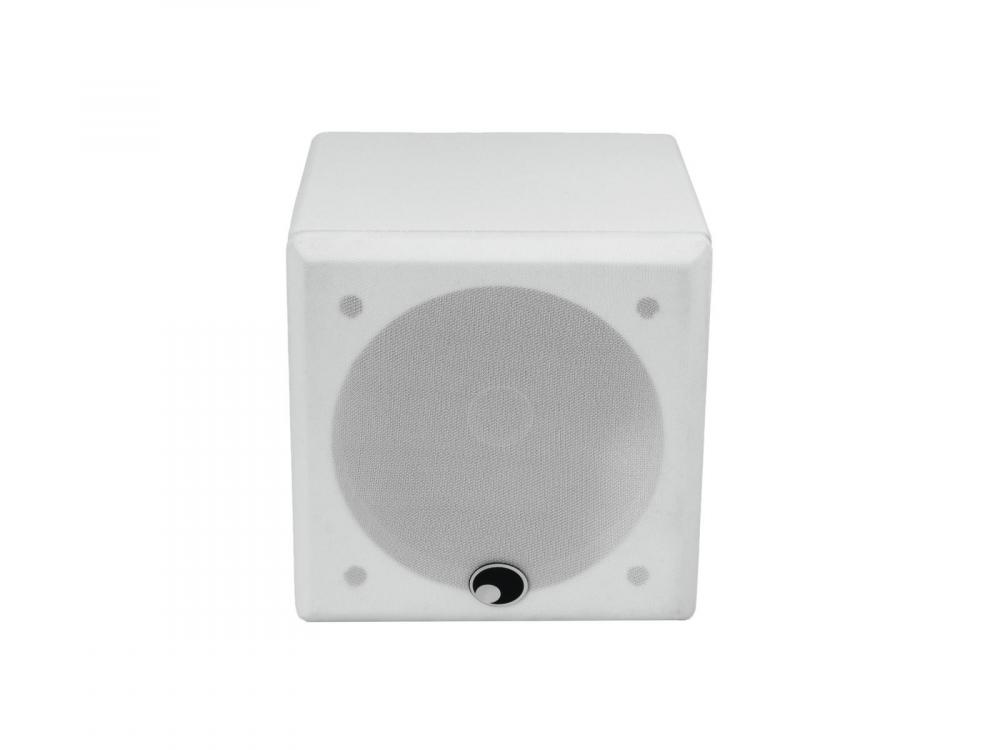

OMNITRONIC QI-5 Coaxial Wall Speaker white

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC QI-5 Coaxial Wall Speaker white

Info
order code
11038941
product link
EAN
4026397565362
Product Name
OMNITRONIC QI-5 Coaxial Wall Speaker white
technical overview
Components: 13 cm woofer (5"), 18 mm dome tweeter
Connection: Screw plug terminal
Sensitivity: 90 dB
Dimensions (L x W x H): 188 x 182 x 181 mm
Weight: 4 kg
Program power: 60 W
Rated power: 30 W RMS
Size of woofer: (5") ca. 13 cm
Frequency range: 65 - 20000 Hz
Height: 18,1 cm
Depth: 18,2 cm
Width: 18,8 cm
Impedance: 16 Ohm
main features
Speaker with mount, 5" woofer, 0,7" dome tweeter, 30 W RMS
-16-ohm PA wall speaker with an excellent sound for general applications
-2-way coaxial system with 13 cm woofer (5")
-Quality MDF cabinet 16 mm
-Scratch-resistant lacquer surface in black or white
-Movable mounting bracket for ceiling or wall installation

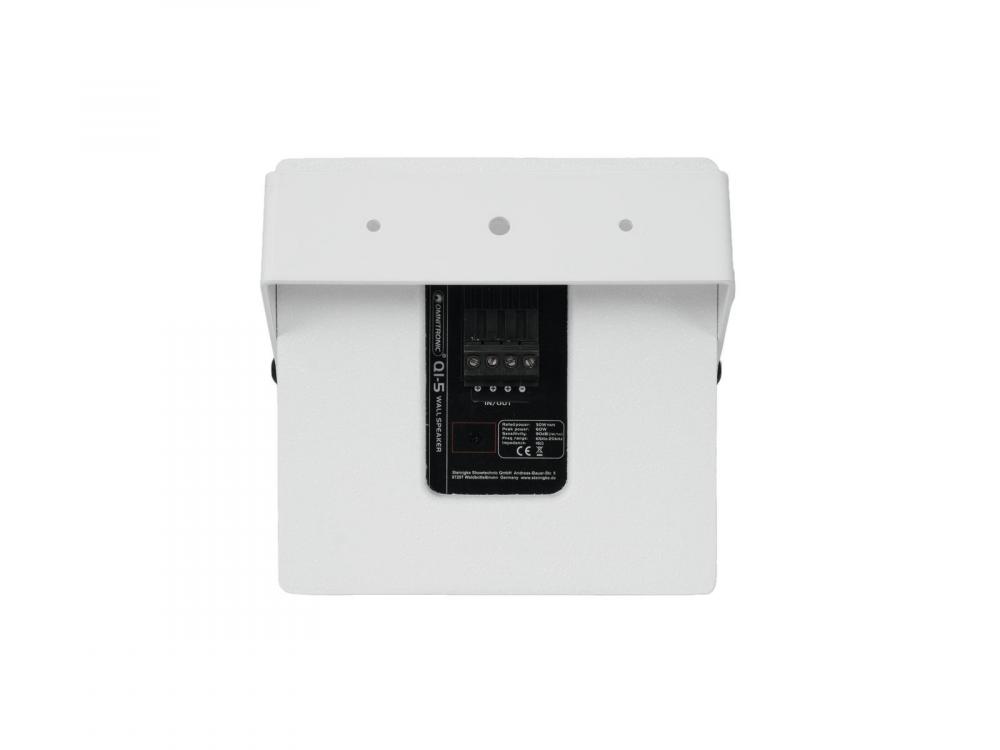

-Screw plug terminal for parallel connection
-4 x M8 threaded inserts
-Ideal for PA applications in restaurants, bars, shops or conferences
Audio
Frequency response, from
65 Hz
Frequency response, to
20000 Hz
impedance
16 ohm
Electrical
power consumption watt, max
30.00 W
Mechanical
weight
4.00 kg
width
188.00 mm
height
181.00 mm
length
188.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00096369.pdf
