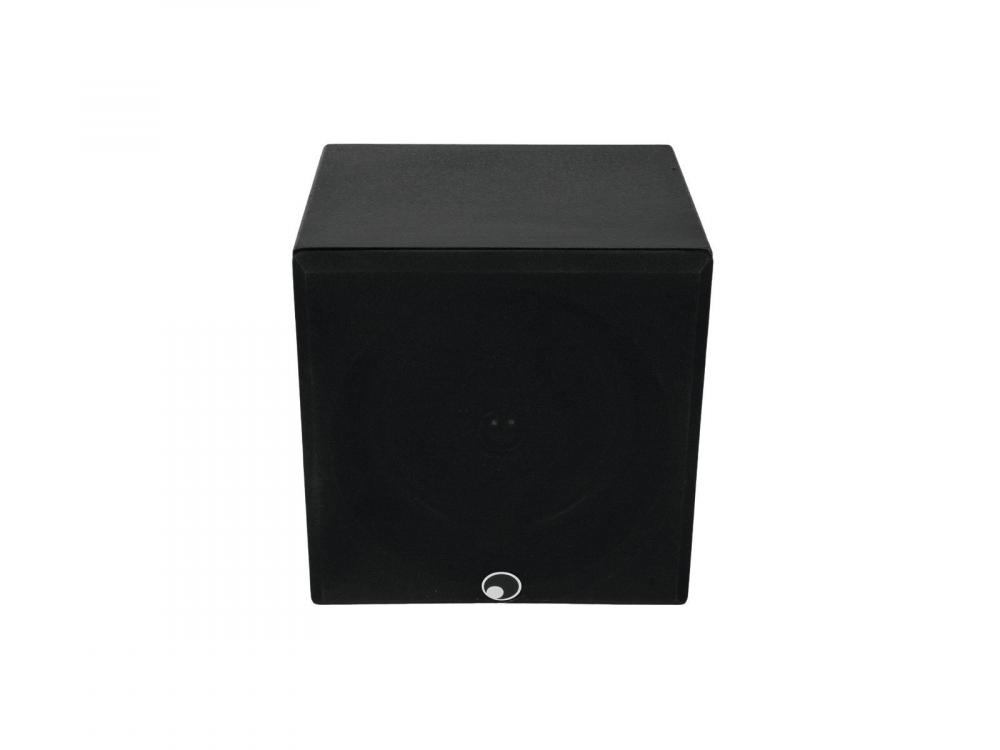

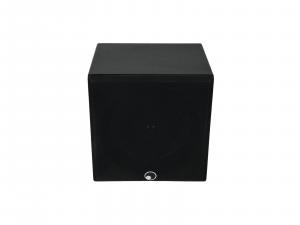

OMNITRONIC QI-8 Coaxial Wall Speaker black

OMNITRONIC

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC QI-8 Coaxial Wall Speaker black

Info
order code
11038945
product link
EAN
4026397565386
Product Name
OMNITRONIC QI-8 Coaxial Wall Speaker black
technical overview
Components: 20 cm woofer (8"), 25 mm dome tweeter
Connection: Screw plug terminal
Sensitivity: 91 dB
Dimensions (L x W x H): 222 x 252 x 252 mm
Weight: 5,5 kg
Program power: 80 W
Rated power: 40 W RMS
Size of woofer: (8") ca. 20 cm
Frequency range: 60 - 20000 Hz
Height: 25,2 cm
Depth: 25,2 cm
Width: 22,2 cm
Impedance: 16 Ohm
main features
Speaker with mount, 8" woofer, 1" dome tweeter, 40 W RMS
-16-ohm PA wall speaker with an excellent sound for general applications

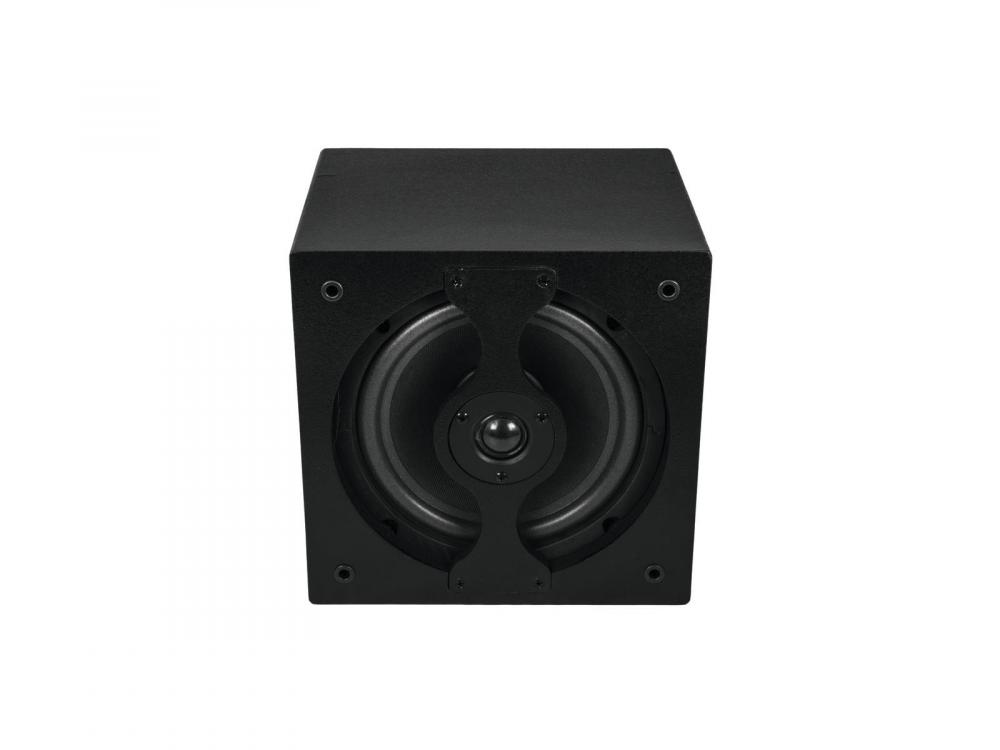

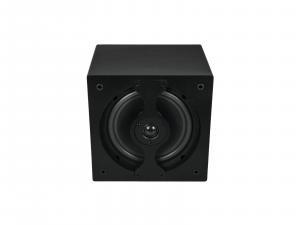

-2-way coaxial system with 20 cm woofer (8")
-Quality MDF cabinet 16 mm
-Scratch-resistant lacquer surface in black or white

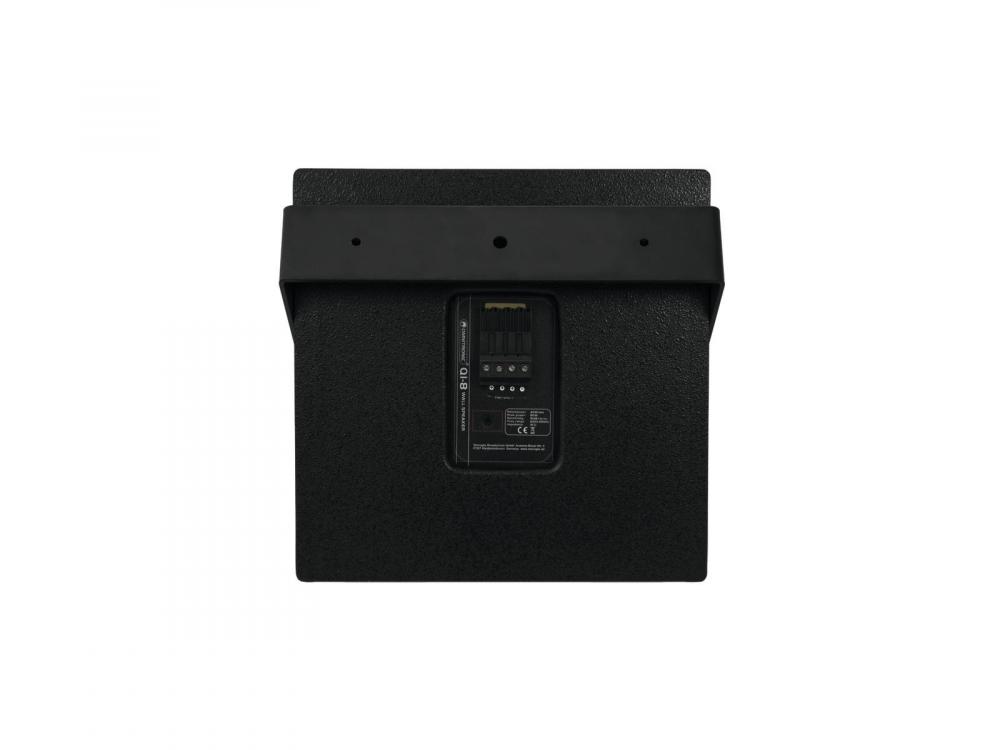

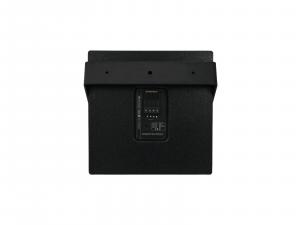

-Movable mounting bracket for ceiling or wall installation
-Screw plug terminal for parallel connection
-4 x M8 threaded inserts
-Ideal for PA applications in restaurants, bars, shops or conferences
Audio
Frequency response, from
60 Hz
Frequency response, to
20000 Hz
impedance
16 ohm
Electrical
power consumption watt, max
40.00 W
Mechanical
weight
5.50 kg
width
252.00 mm
height
252.00 mm
length
252.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00096369.pdf
