Info | |
---|---|
order code |
11038987
|
product link | |
EAN |
4026397493948
|
Product Name |

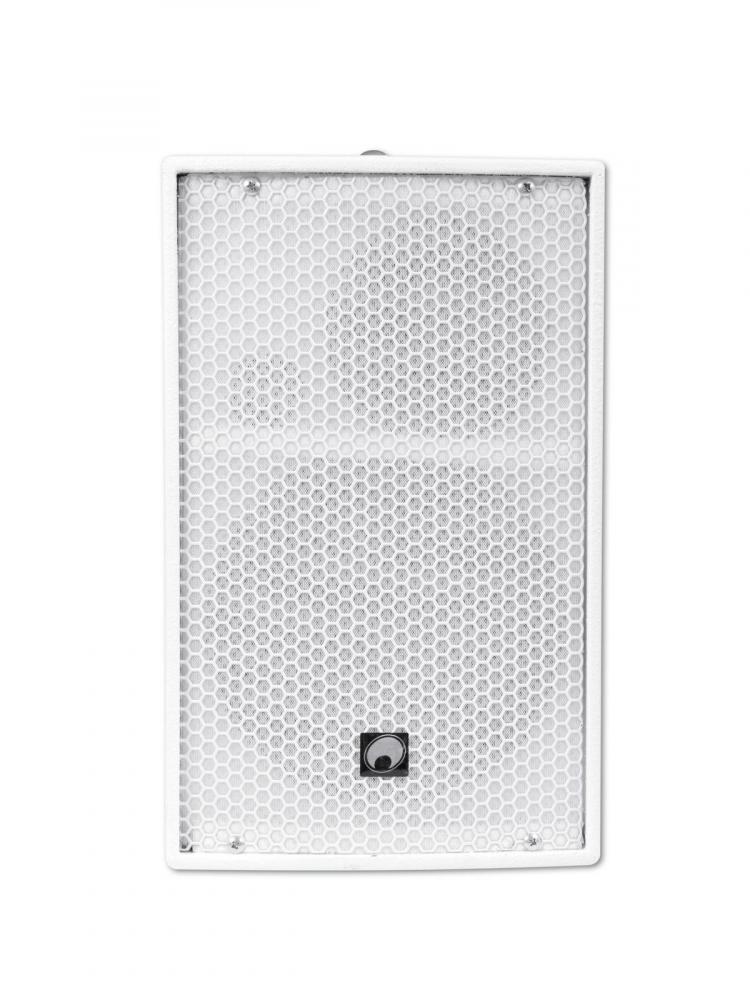

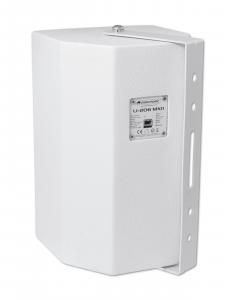

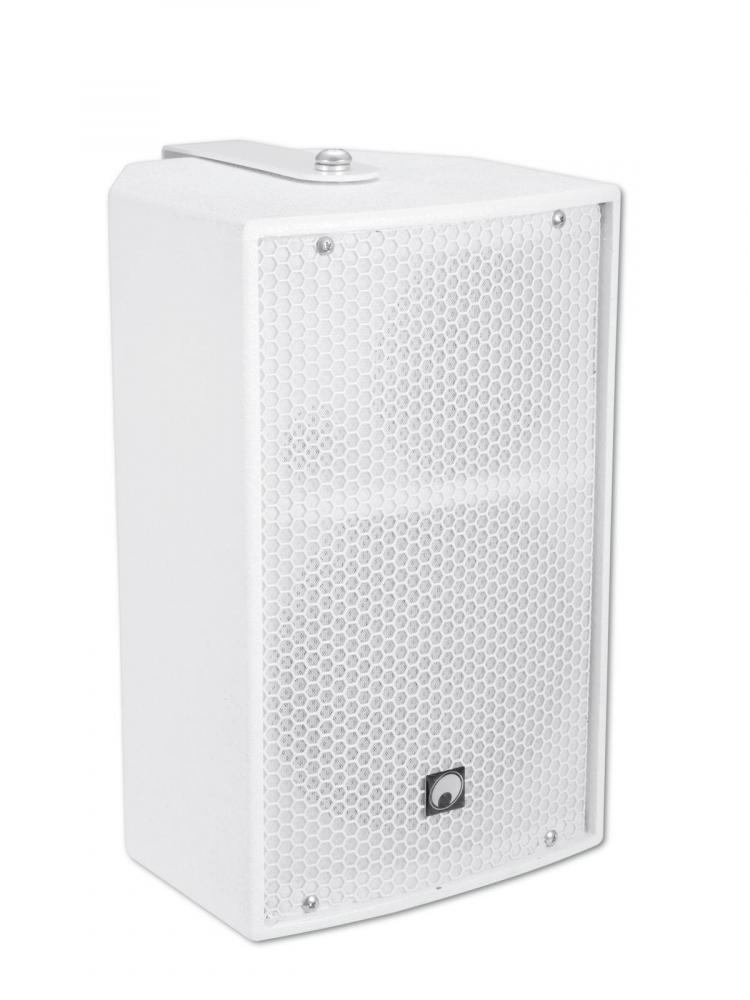

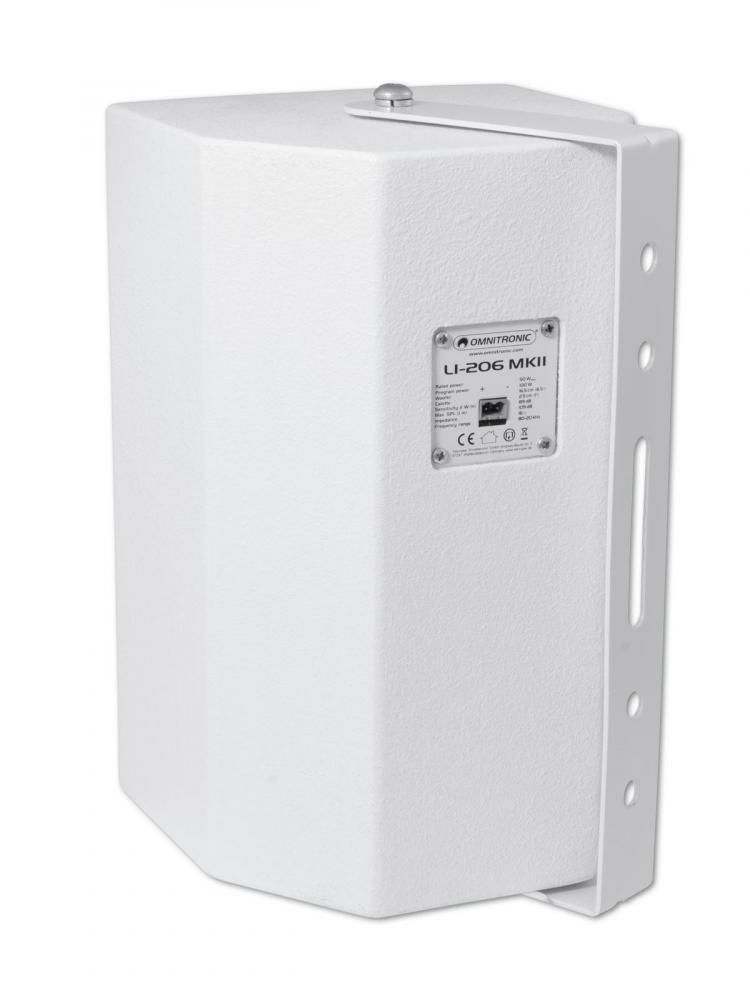

OMNITRONIC LI-206W MK2 2-Way Top
|
technical overview |
Components: 16.5 cm woofer (6.5"), 2.5 cm calotte (1") Connection: 2-pole plug-in screw terminal Sensitivity: 89 dB Maximum SPL: 109 dB Crossover frequency: 2200 kHz Dispersion angle: 120° Dimensions (H x W x D): 320 x 200 x 200 mm Weight: 4,4 kg Program power: 100 W Rated power: 50 W RMS Color: White Size of woofer: (6,5") ca. 17 cm Frequency range: 80 - 20000 Hz Height: 32 cm Depth: 20 cm Width: 20 cm Attachment: Panning and tilting mounting bracket for ceiling or wall installation in most varying angles |
main features |
Speaker with mount,, 6.5" full-range speaker and 1" horn tweeter, 50 W RMS -Dedicated full-range bassreflex system for fixed installation -16.5 cm (6.5") bass speaker and 25 mm (1") horn tweeter, with PTC tweeter protection -Attractive trapezoidal cabinet made of 8/12 mm plywood -Scratch-resistant lacquer surface in black or white -Supplied with movable mounting bracket for ceiling or wall installation -Impact-resistant steel grille with acoustic foam -2 x M10 thread inserts -For PA applications in restaurants, bars, discos and shops |
Audio | |
Frequency response, from |
80 Hz
|
Frequency response, to |
20000 Hz
|
Electrical | |
power consumption watt, max |
50.00 W
|
Mechanical | |
weight |
4.40 kg
|
width |
200.00 mm
|
height |
320.00 mm
|
length |
200.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00076709.pdf |
