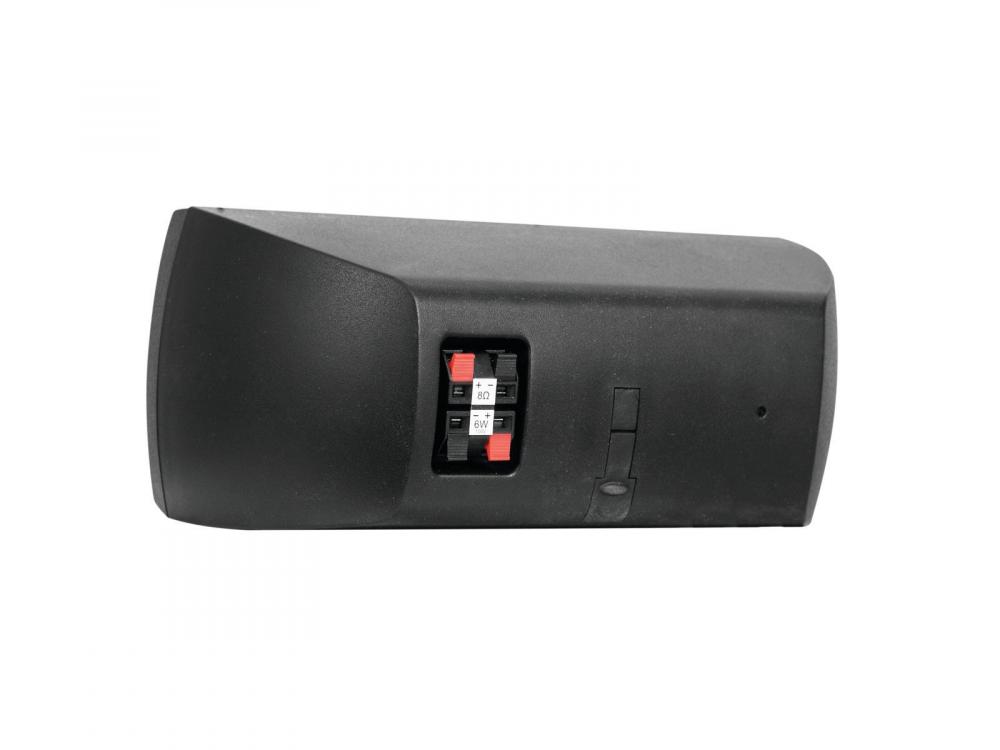

OMNITRONIC OD-22T Wall Speaker 100V black

OMNITRONIC

1
2
3

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC OD-22T Wall Speaker 100V black

Info
order code
11036908
product link
EAN
4026397543520
Product Name
OMNITRONIC OD-22T Wall Speaker 100V black
technical overview
Input voltage: 100 V
Speaker: 2 x 6 cm (2 x 2.5")
Connection: spring clamps with parallel output
Sensitivity: 88 dB
Maximum SPL: 92 dB
Dispersion angle: 60° x 60°
Dimensions (H x W x D): 110 x 209 x 109 mm
Weight: 1 kg
Size of woofer: (2,5") ca. 6 cm
Rated power: 15 W RMS
Program power: 30 W
Frequency range: 120 - 22000 Hz
Height: 11 cm
Depth: 10,9 cm
Width: 20,9 cm
Impedance: 100 V ELA
main features
Universal wall speaker system
-100 V PA speaker system for general applications
-2 x 6 cm full-range speaker (2 x 2.5")
-3.5 x 6 cm passive membrane
-100 V transformer
-Attractive ABS plastic cabinet (scratch-resistant) with metal grille
-Durable mounting plate with joint for panning and tilting allows ceiling or wall installation in most varying angles
-Spring clamps
-Ideal for PA applications in restaurants, bars, shops or conferences
Audio
Frequency response, from
120 Hz
Frequency response, to
22000 Hz
Electrical
power consumption watt, max
15.00 W
Mechanical
weight
1.00 kg
width
209.00 mm
height
110.00 mm
length
109.00 mm
