Info | |
---|---|
order code |
80710139
|
product link | |
EAN |
4026397349214
|
Product Name |

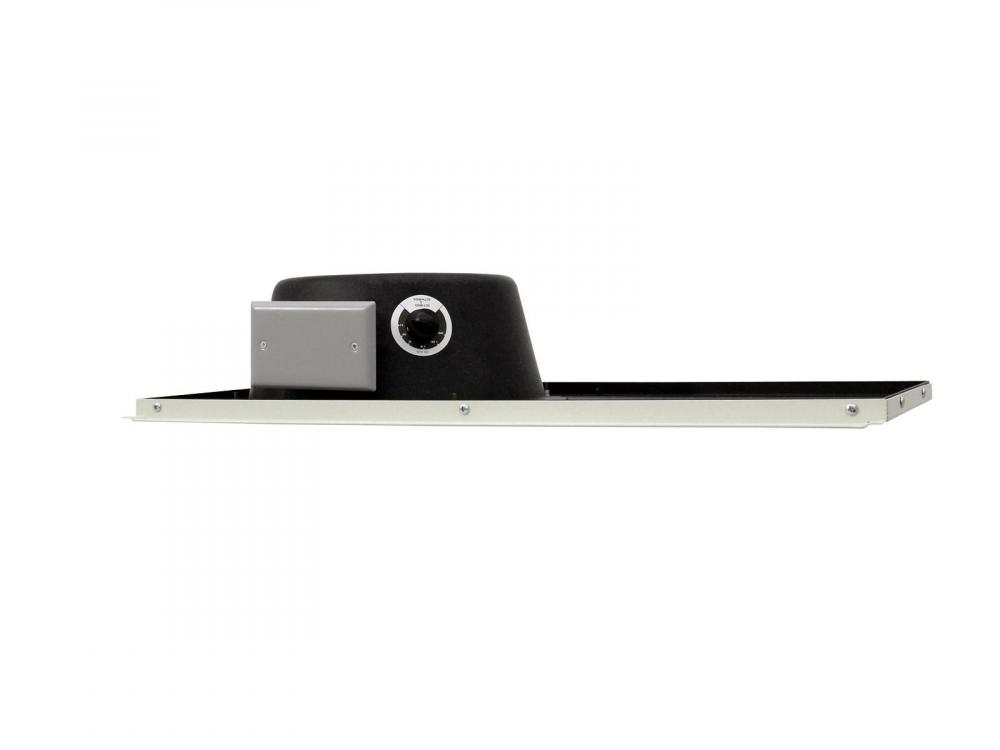

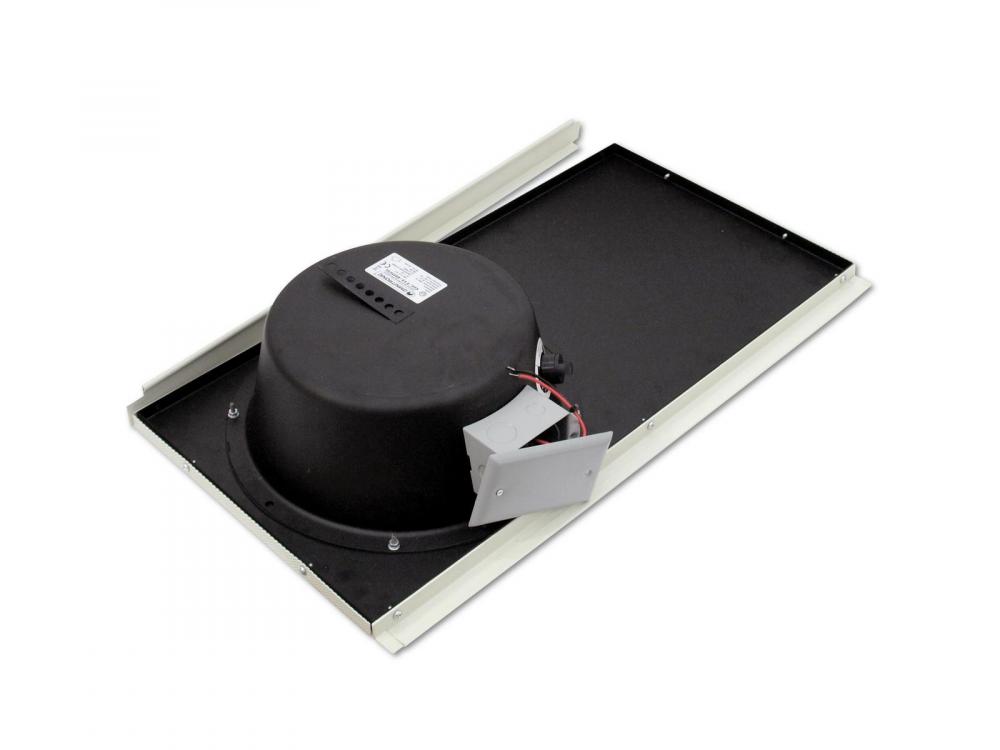

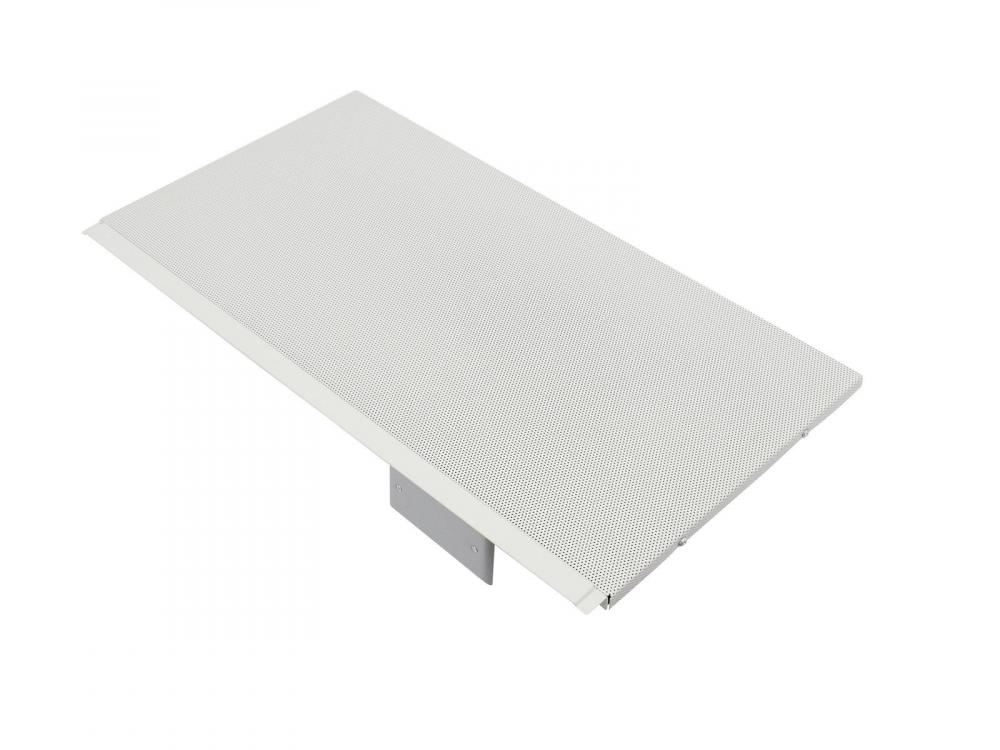

OMNITRONIC GCTH-815S Ceiling Panel 15W/pa
|
technical overview |
Input: 100 V or 8 ohms Components: 20 cm woofer (8"), 4 cm tweeter (1.5") Sensitivity: 92 dB Dimensions (L x W x H): 606 x 310 x 115 mm Size of woofer: (8") ca. 20 cm Rated power: 15 W RMS Program power: 30 W Frequency range: 55 - 18000 Hz Height: 31 cm Depth: 11,5 cm Width: 60,6 cm Weight: 9,2 kg Impedance: 100 V ELA |
main features |

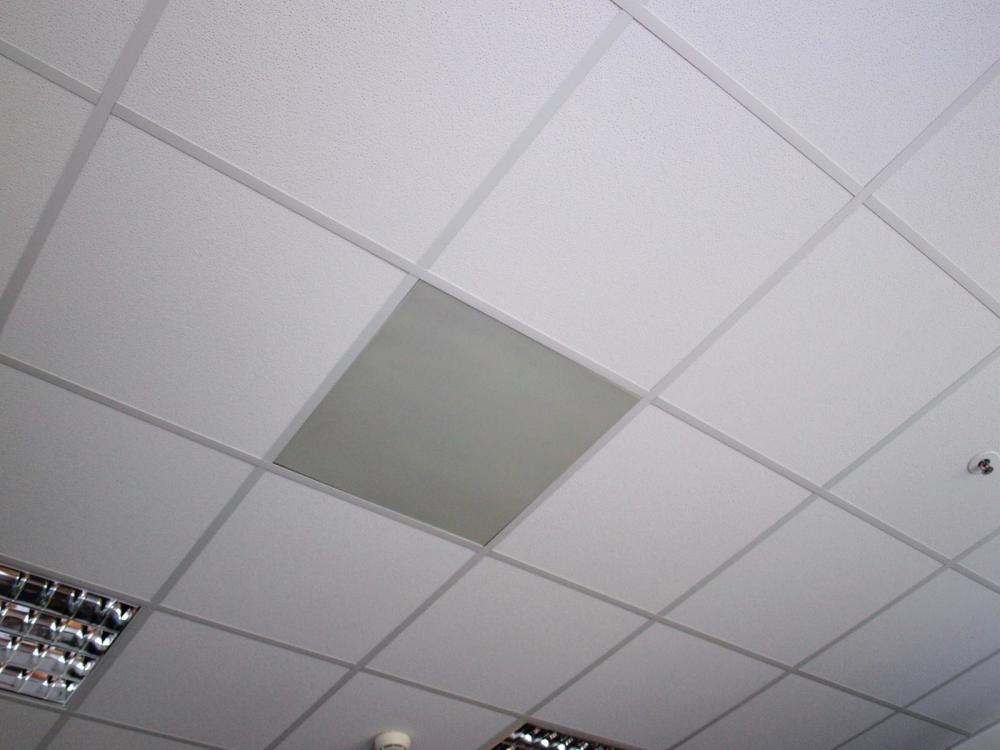

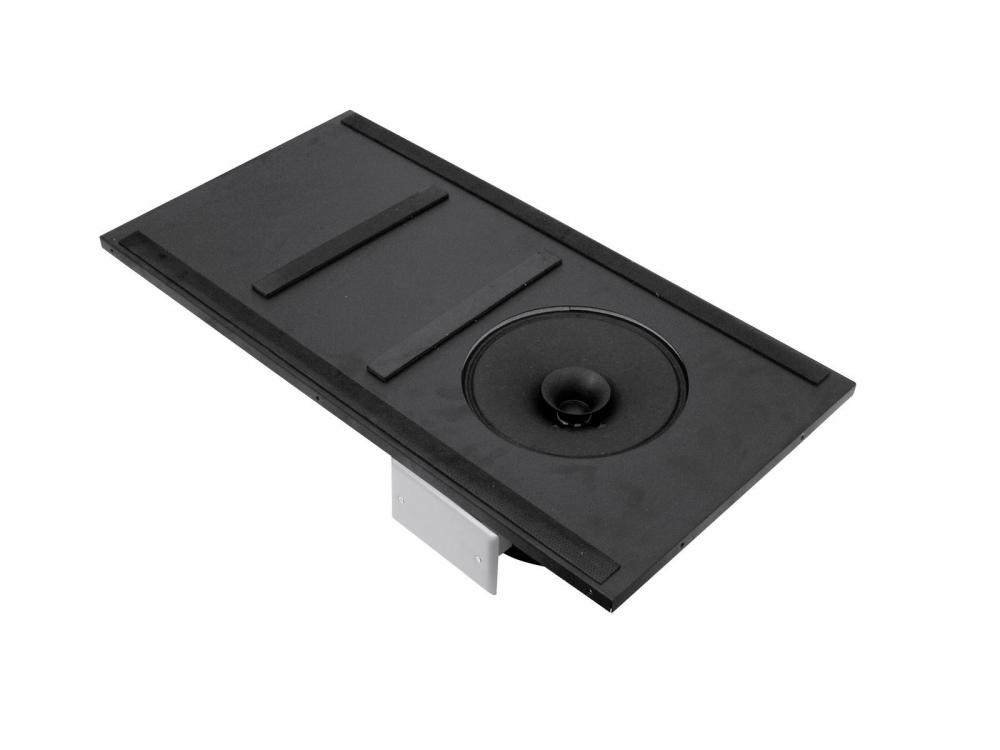

Drop-in ceiling speaker -2-way coaxial chassis with 20 cm woofer (8") and 4 cm silk dome tweeter (1.5") -Easiest installation by simply resting the speaker on the ceiling grid -Suitable for 60 x 60 cm grids - ceiling tile cutting neccessary -For 8-ohm and 100 V systems -4-step power selector -Steel firedome for safety in case of fire -Loose cable ends -Seismic safety points -Sturdy steel grille in off-white -Incl. mounting bracket and adaptor crossbar - no additional accessories needed |
Audio | |
Frequency response, from |
55 Hz
|
Frequency response, to |
18000 Hz
|
impedance |
8 ohm
|
Electrical | |
power consumption watt, max |
15.00 W
|
Mechanical | |
weight |
9.20 kg
|
width |
606.00 mm
|
height |
310.00 mm
|
length |
606.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00043190.pdf |
