Info | |
---|---|
order code |
80710154
|
product link | |
EAN |
4026397571196
|
Product Name |

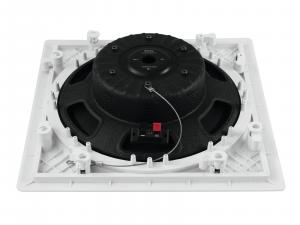

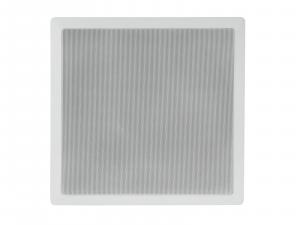

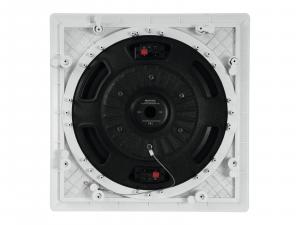

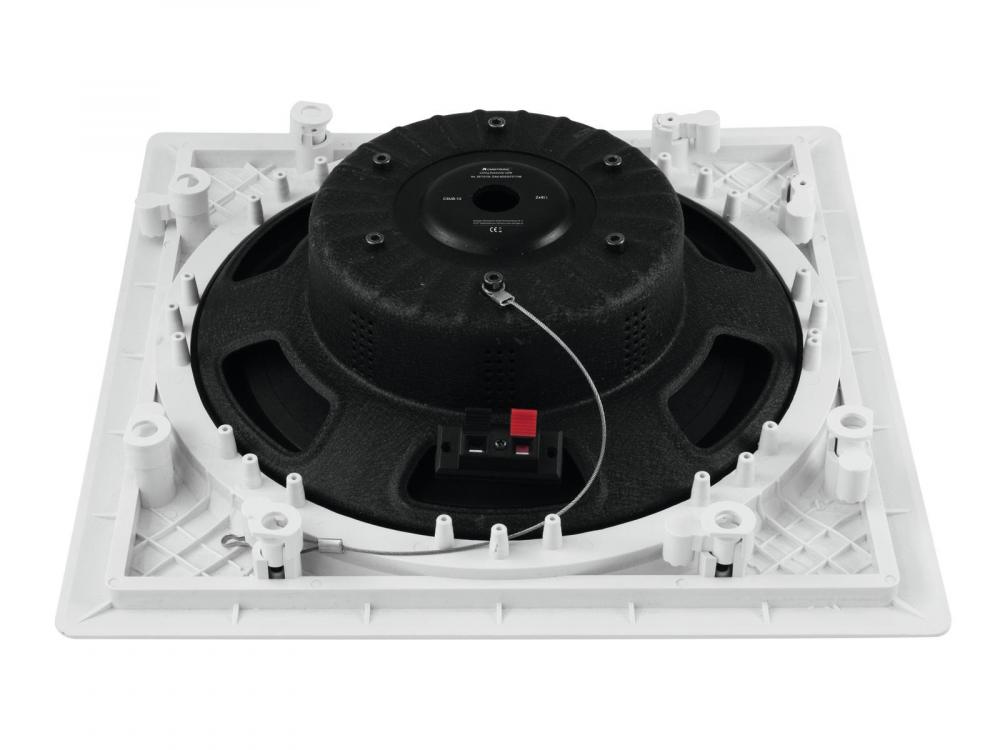

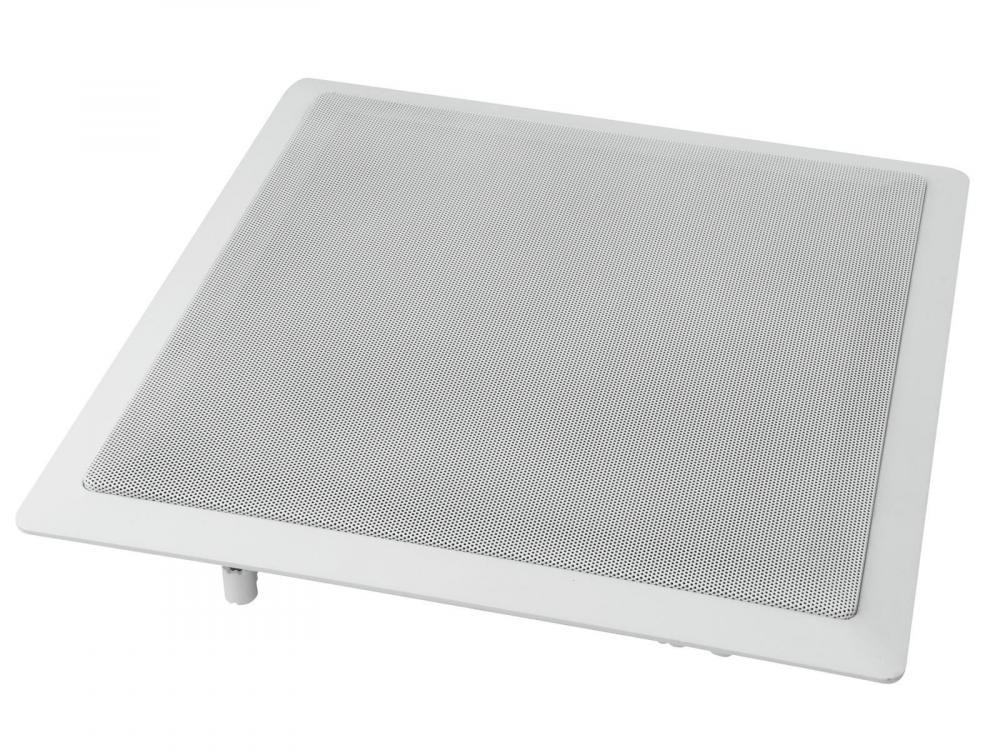

OMNITRONIC CSUB-12 Ceiling Subwoofer
|
technical overview |
Components: 30 cm woofer (12"), 30 oz magnet Connection: Spring clamps Impedance: 2 x 8 ohms Sensitivity: 89 dB Dimensions (L x W x H): 367 x 367 x 110 mm Mounting cutout: 328 x 328 mm Mounting depth: 90 mm Weight: 3,5 kg Size of woofer: (12") ca. 30 cm Rated power: 110 W RMS Program power: 220 W Frequency range: 20 - 3000 Hz Height: 11 cm Depth: 36,7 cm Width: 36,7 cm Impedance: 8 Ohm 8 Ohm |
main features |
12" flush-mount speaker, dual voice coil, 110 W RMS, 2 x 8 ohms, 328 x 328 mm -Flush-mount speaker for the bass support of PA systems -Dual voice coil 2 x ohms -Safe and easy installation with screw clips -Plastic housing with protective metal grille -Flat profile for inconspicuous installation -For a ceiling thickness up to 15 mm -A crossover is required for system integration -Matching transformers for use in 100 V lines available as accessory |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
3000 Hz
|
impedance |
8 ohm
|
Electrical | |
power consumption watt, max |
110.00 W
|
Mechanical | |
weight |
3.50 kg
|
width |
367.00 mm
|
height |
110.00 mm
|
length |
367.00 mm
|
