Info | |
---|---|
order code |
80710208
|
product link | |
EAN |
4026397316988
|
Product Name |

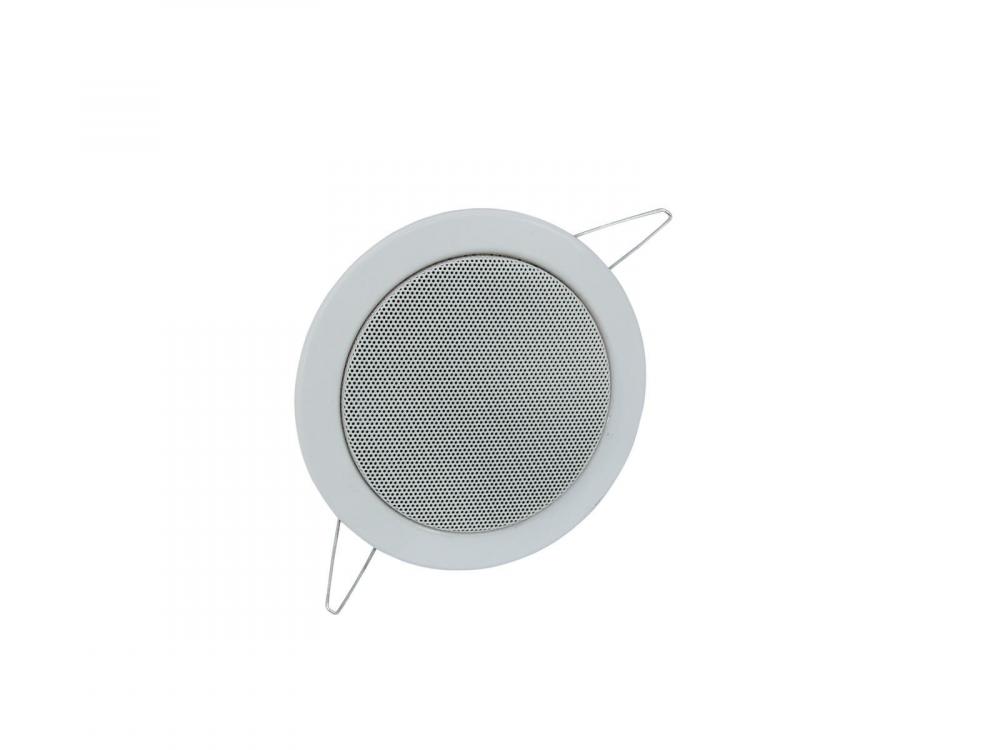

OMNITRONIC CS-4C Ceiling Speaker silver
|
technical overview |

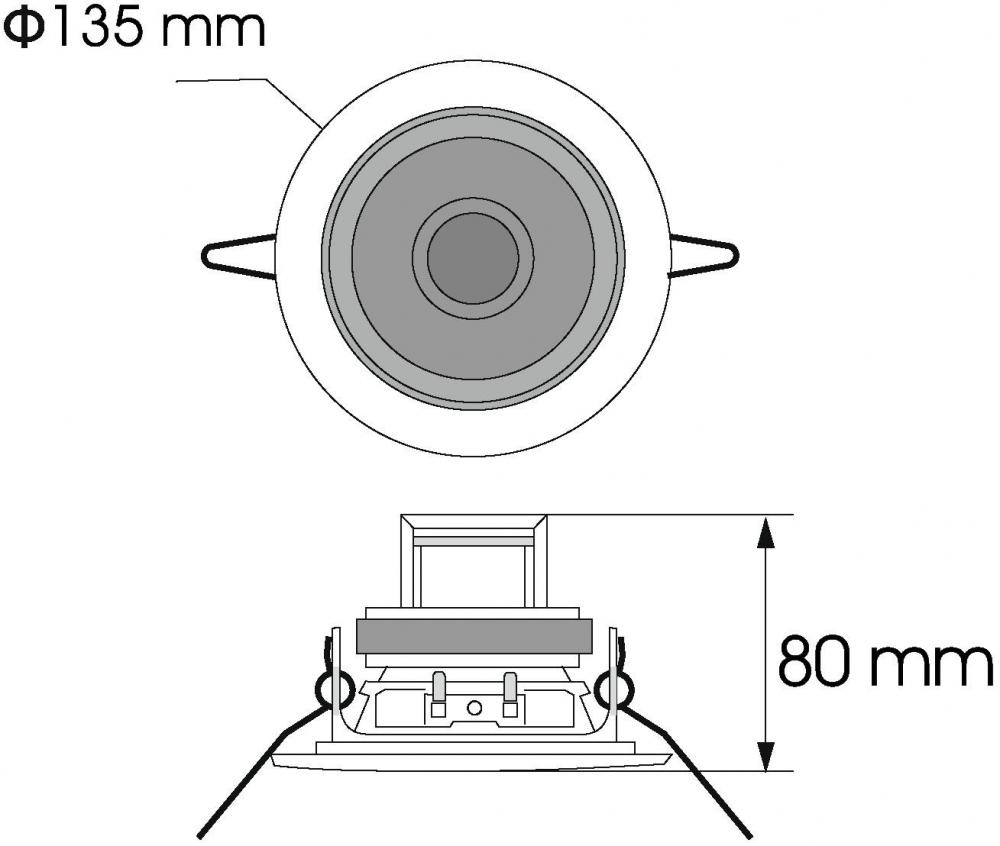

Input voltage: 100 V Components: 10 cm speaker (4") 6 W RMS (red) COM (black) Sensitivity: 89 dB, ±3 dB Maximum SPL: 91 dB Dimensions (D x D): 135 x 80 mm Mounting cutout: 110 mm ø Weight: 0,5 kg Size of woofer: (4") ca. 10 cm Rated power: 6 W RMS Program power: 12 W Frequency range: 100 - 20000 Hz Diameter: 13,5 cm Depth: 8 cm Impedance: 100 V ELA |
main features |

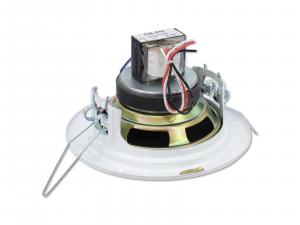

2-way 4" flush-mount speakerr, 100 V, 6 W RMS, Ø 110 mm -10 cm full-range speaker (4") -100 V transformer with 2 power taps -Easy mounting, similar to standard flush-mount lights -For speech and background music in indoor PA systems -Cover with metal grille available in black, white, gold and silver |
Audio | |
Frequency response, from |
100 Hz
|
Frequency response, to |
20000 Hz
|
Electrical | |
power consumption watt, max |
6.00 W
|
Mechanical | |
weight |
0.50 kg
|
length |
80.00 mm
|
outer diameter |
135 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00036648.pdf |
