OMNITRONIC CSC-4 Ceiling Speaker
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC CSC-4 Ceiling Speaker
| Info | |
|---|---|
| order code |
80710260
|
| product link | |
| EAN |
4026397289046
|
| Product Name |
OMNITRONIC CSC-4 Ceiling Speaker
|
| technical overview |

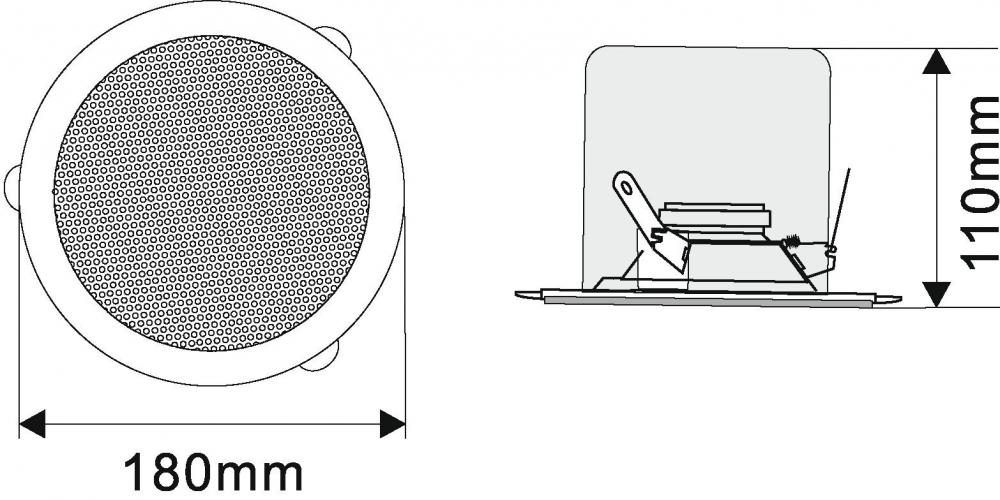

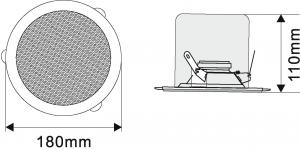

Input voltage: 100 V Components: 10 cm speaker (4") 6 W RMS (red) COM (black) Sensitivity: 90 dB, ±3 dB Maximum SPL: 94 dB Dimensions (D x D): 180 x 110 mm Mounting cutout: 150 mm ø Weight: 0,8 kg Size of woofer: (4") ca. 10 cm Rated power: 6 W RMS Program power: 12 W Frequency range: 150 - 15000 Hz Diameter: 18 cm Depth: 11 cm Impedance: 100 V ELA |
| main features |
4" full-range speaker with firedome, 100 V, 6 W RMS, Ø 150 mm -100 V transformer with 2 power taps -Metal firedome for safety in case of fire -Easy mounting, similar to standard flush-mount lights -For amplifying systems in indoor PA systems |
| Audio | |
| Frequency response, from |
150 Hz
|
| Frequency response, to |
15000 Hz
|
| Electrical | |
| power consumption watt, max |
6.00 W
|
| Mechanical | |
| weight |
0.80 kg
|
| length |
110.00 mm
|
| outer diameter |
180 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| no files provided by the manufacturer |
