OMNITRONIC CSC-6 Ceiling Speaker
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC CSC-6 Ceiling Speaker
| Info | |
|---|---|
| order code |
80710280
|
| product link | |
| EAN |
4026397289060
|
| Product Name |
OMNITRONIC CSC-6 Ceiling Speaker
|
| technical overview |

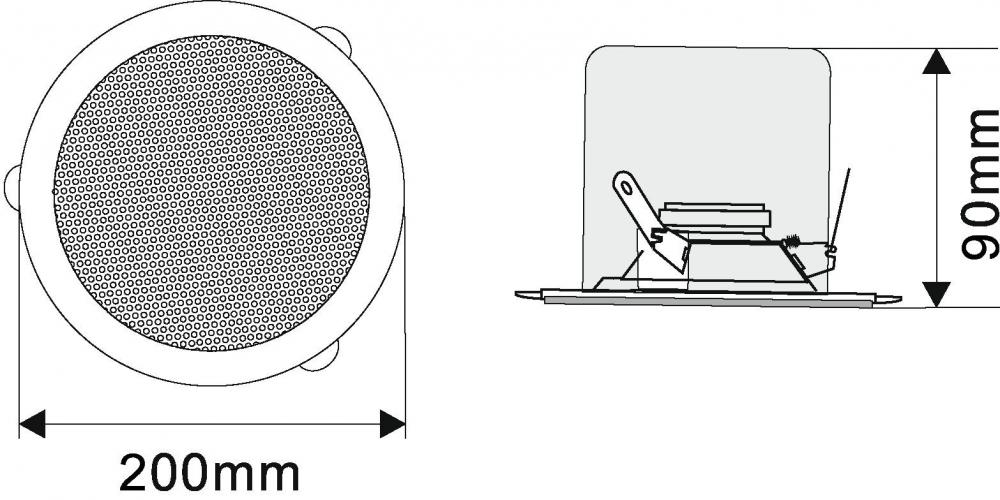

Input voltage: 100 V Components: 15 cm speaker (6") 6 W RMS (red) COM (black) Sensitivity: 92 dB, ±3 dB Maximum SPL: 96 dB Dimensions (D x D): 200 x 90 mm Mounting cutout: 185 mm ø Weight: 0,9 kg Size of woofer: (6") ca. 15 cm Rated power: 6 W RMS Program power: 12 W Frequency range: 100 - 18000 Hz Diameter: 20 cm Depth: 9 cm Impedance: 100 V ELA |
| main features |
6" full range speaker with firedome, 100 V, 6 W RMS, Ø 185 mm -100 V transformer with 2 power taps -Metal firedome for safety in case of fire -Easy mounting, similar to standard flush-mount lights -For amplifying systems in indoor PA systems |
| Audio | |
| Frequency response, from |
100 Hz
|
| Frequency response, to |
18000 Hz
|
| Electrical | |
| power consumption watt, max |
6.00 W
|
| Mechanical | |
| weight |
0.90 kg
|
| length |
90.00 mm
|
| outer diameter |
200 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00054292.pdf |
