OMNITRONIC CSQ-5 Ceiling Speaker

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC CSQ-5 Ceiling Speaker

Info
order code
80710345
product link
EAN
4026397289107
Product Name
OMNITRONIC CSQ-5 Ceiling Speaker
technical overview
Input voltage: 100 V
Components: 13 cm woofer (5"), 1.5 cm tweeter (0.5")
15 W RMS (yellow)
30 W RMS (red)
COM (blue)
Sensitivity: 89 dB, ±3 dB
Dimensions (H x W x D): 220 x 220 x 90 mm
Mounting cutout: 185 x 185 mm
Weight: 1,7 kg
Size of woofer: (5") ca. 13 cm
Rated power: 30 W RMS
Program power: 60 W
Frequency range: 90 - 18000 Hz
Height: 9 cm
Depth: 22 cm
Width: 22 cm
Impedance: 100 V ELA
main features
2-way coaxial speaker (185 x 185 mm), LF: 5", HF: 0.5", 100 V, 30 W RMS

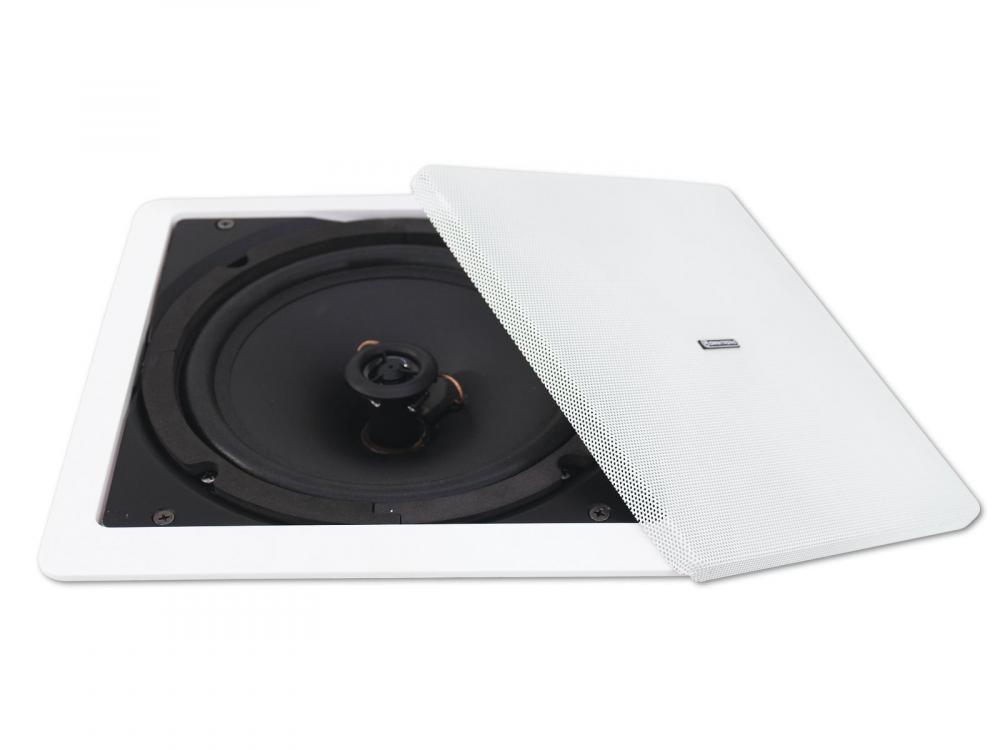

-2-way coaxial speaker with 13 cm woofer (5") and 1.5 cm tweeter (0.5")

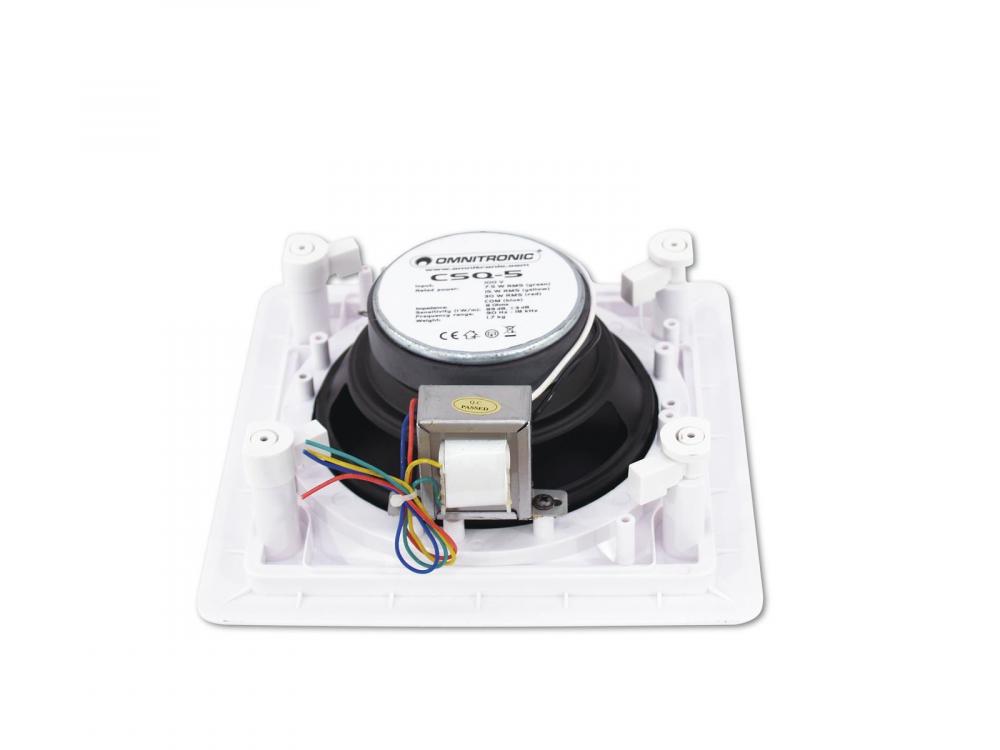

-100 V transformer with 3 power taps

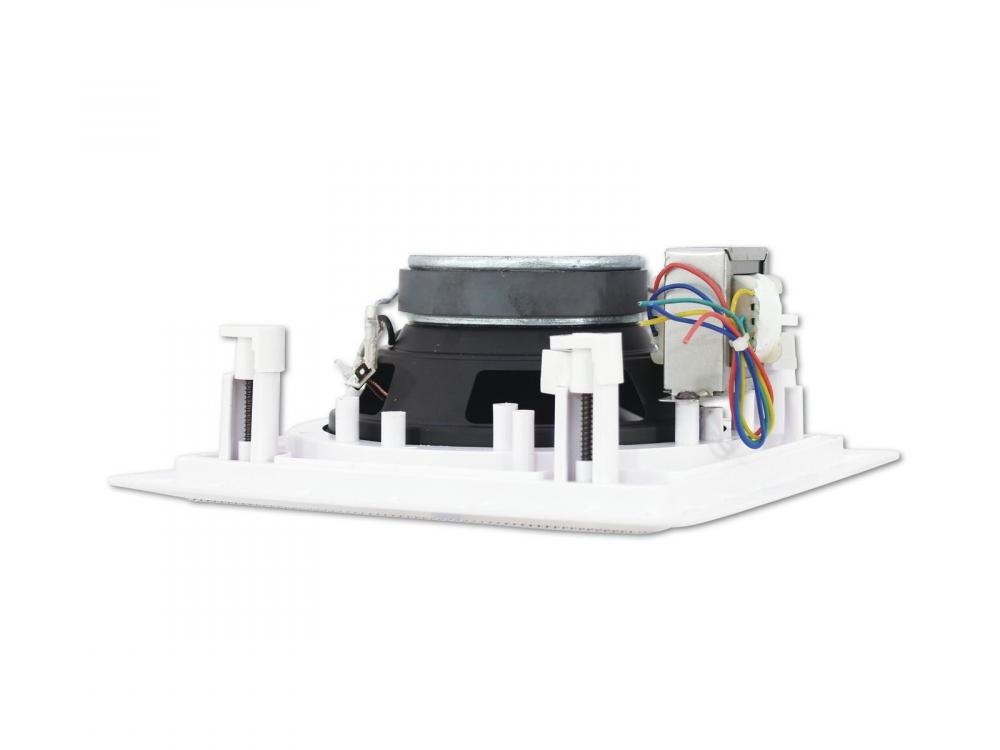

-Easy installation with clips

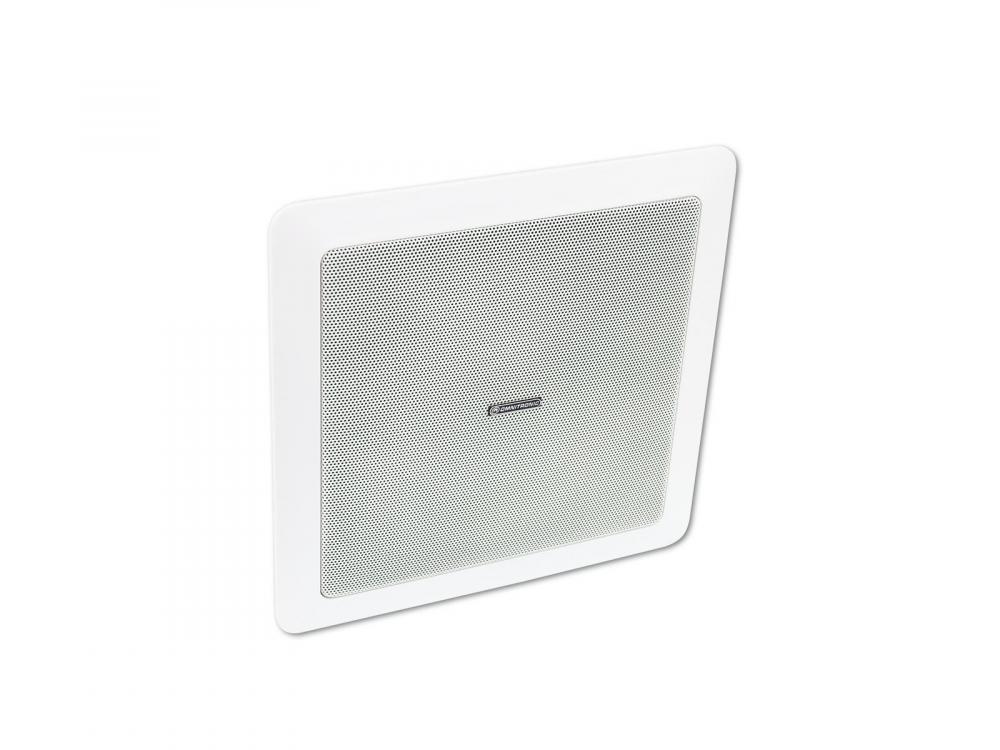

-Plastic housing with metal grille in white
-For amplifying systems in indoor PA systems
Audio
Frequency response, from
90 Hz
Frequency response, to
18000 Hz
Electrical
power consumption watt, max
30.00 W
Mechanical
weight
1.70 kg
width
220.00 mm
height
90.00 mm
length
220.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00061189.pdf
