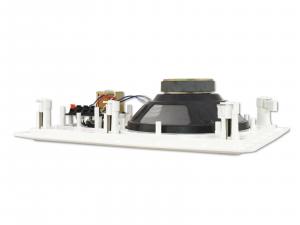

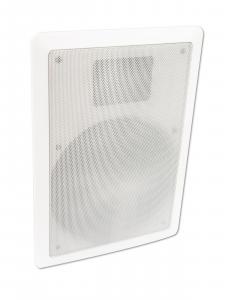

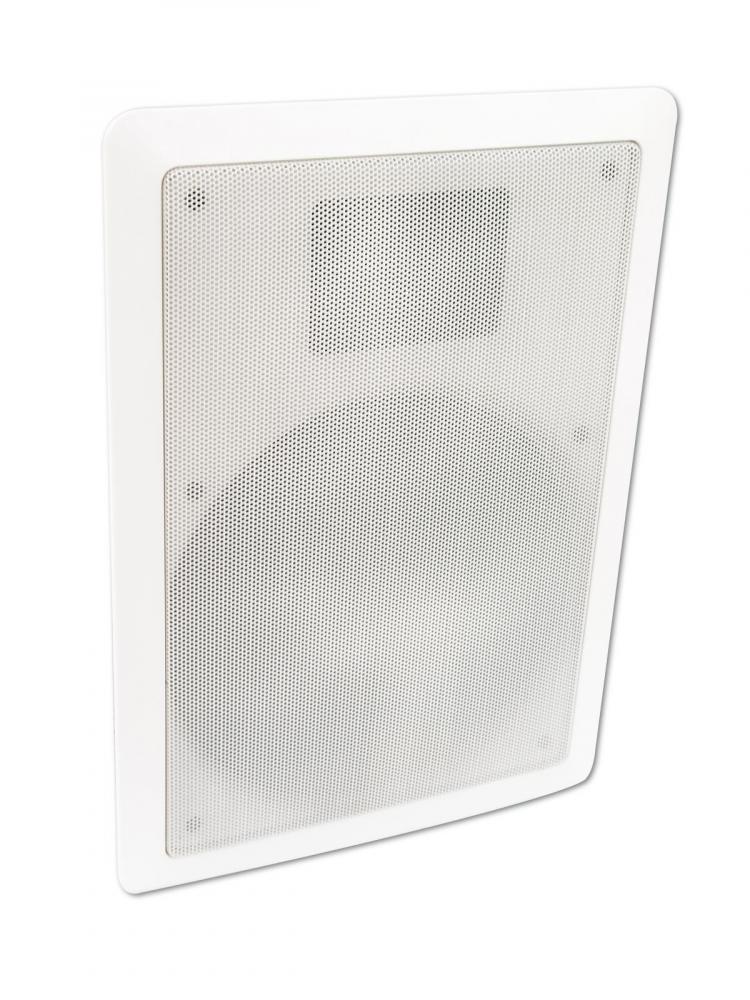

OMNITRONIC CSS-8 Ceiling Speaker
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC CSS-8 Ceiling Speaker
| Info | |
|---|---|
| order code |
80710350
|
| product link | |
| EAN |
4026397321272
|
| Product Name |
OMNITRONIC CSS-8 Ceiling Speaker
|
| technical overview |
Input voltage: 100 V Components: 20 cm woofer (8"), 2.5 cm tweeter (1") 5 W RMS (yellow) 10 W RMS (red) COM (black) Sensitivity: 92 dB Dimensions (H x W x D): 373 x 273 x 60 mm Mounting cutout: 326 x 226 mm Weight: 1,5 kg Size of woofer: (8") ca. 20 cm Rated power: 10 W RMS Program power: 20 W Frequency range: 80 - 15000 Hz Height: 6 cm Depth: 27,3 cm Width: 37,3 cm Impedance: 100 V ELA |
| main features |

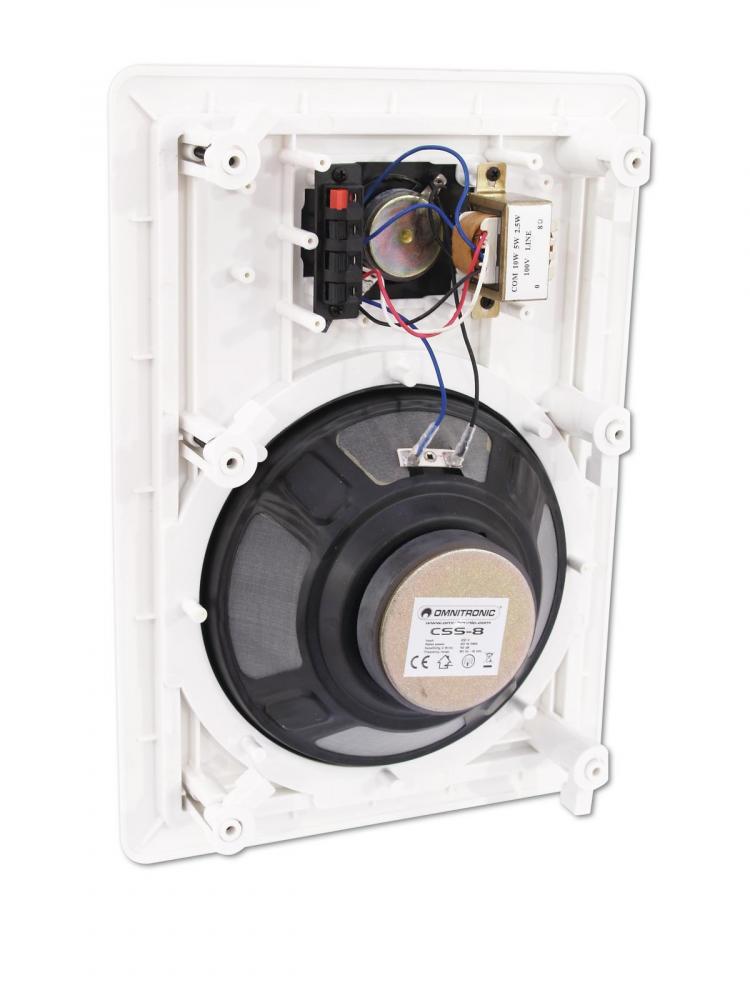

2-way flush-mount speaker, LF: 8" HF: 1" 100 V, 10 W RMS, 326 x 226 mm -2-way coaxial speaker with 20 cm woofer (8") and 2.5 cm tweeter (1") -100 V transformer with 3 power taps -Easy installation with clips -Plastic housing with metal grille in white -For amplifying systems in indoor PA systems |
| Audio | |
| Frequency response, from |
80 Hz
|
| Frequency response, to |
15000 Hz
|
| Electrical | |
| power consumption watt, max |
10.00 W
|
| Mechanical | |
| weight |
1.50 kg
|
| width |
373.00 mm
|
| height |
60.00 mm
|
| length |
273.00 mm
|
