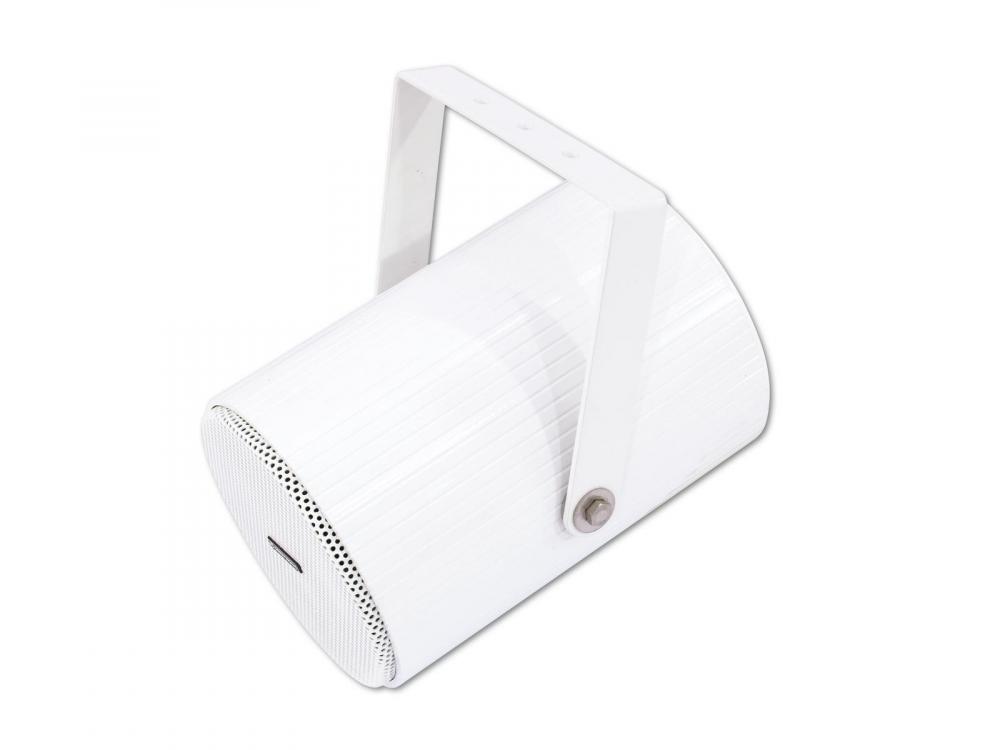

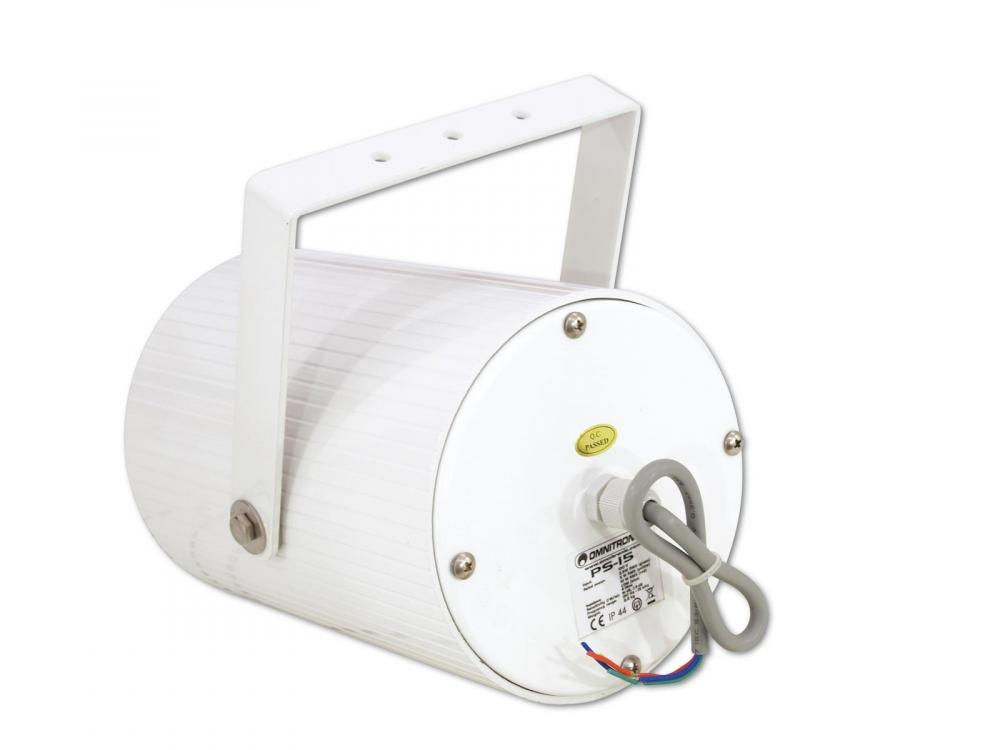

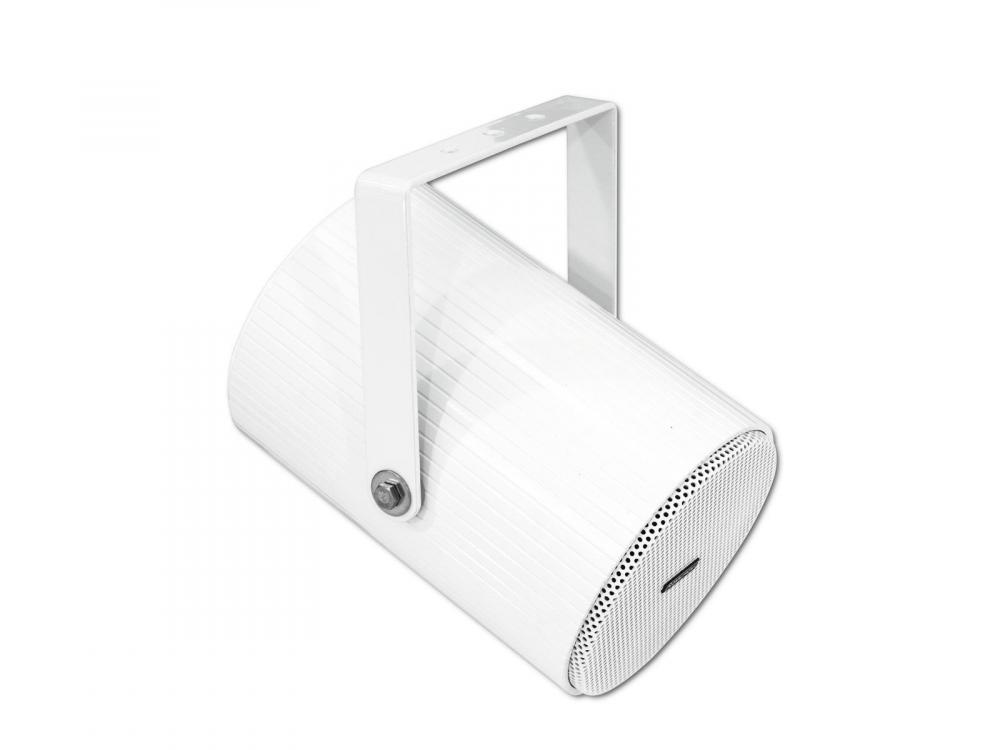

OMNITRONIC PS-15 Projector Speaker
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC PS-15 Projector Speaker
| Info | |
|---|---|
| order code |
80710366
|
| product link | |
| EAN |
4026397279542
|
| Product Name |
OMNITRONIC PS-15 Projector Speaker
|
| technical overview |

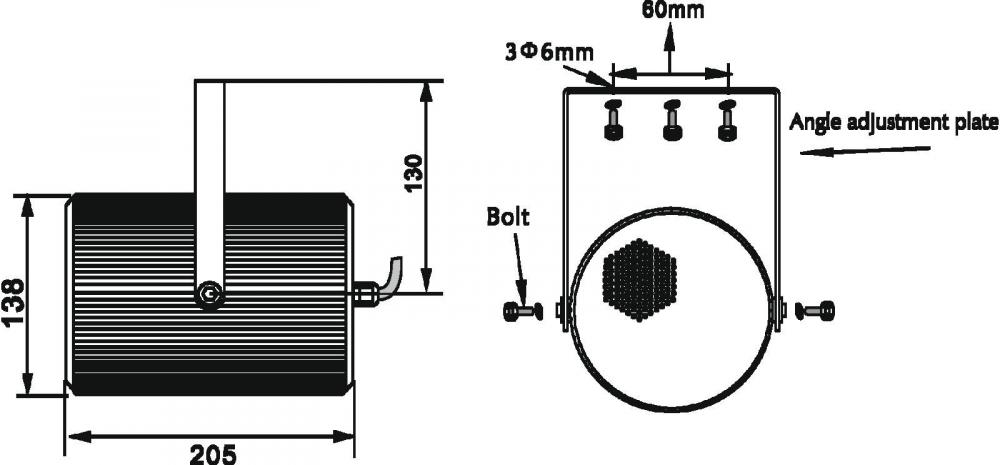

Input voltage: 100 V Components: 13 cm speaker (5") 5 W RMS (yellow) 10 W RMS (red) COM (blue) Sensitivity: 91 dB, ±3 dB Maximum SPL: 100 dB Dimensions (D x D): 138 x 205 mm Weight: 2,25 kg IP classification: IP44 Size of woofer: (5") ca. 13 cm Rated power: 10 W RMS Program power: 20 W Frequency range: 130 - 15000 Hz Diameter: 13,8 cm Depth: 20,5 cm Impedance: 100 V ELA |
| main features |
Weatherproof 5" speaker with mount, 100 V 5/10 W RMS -100 V speaker system for wall and ceiling installation -Weather-proof (IP44), scratch-resistant aluminum housing -Connection cable with 3 power taps -Movable mounting bracket -For outdoor and indoor amplifying systems |
| Audio | |
| Frequency response, from |
130 Hz
|
| Frequency response, to |
15000 Hz
|
| Electrical | |
| power consumption watt, max |
10.00 W
|
| IP rating |
44
|
| Mechanical | |
| weight |
2.25 kg
|
| length |
205.00 mm
|
| outer diameter |
138 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| no files provided by the manufacturer |
