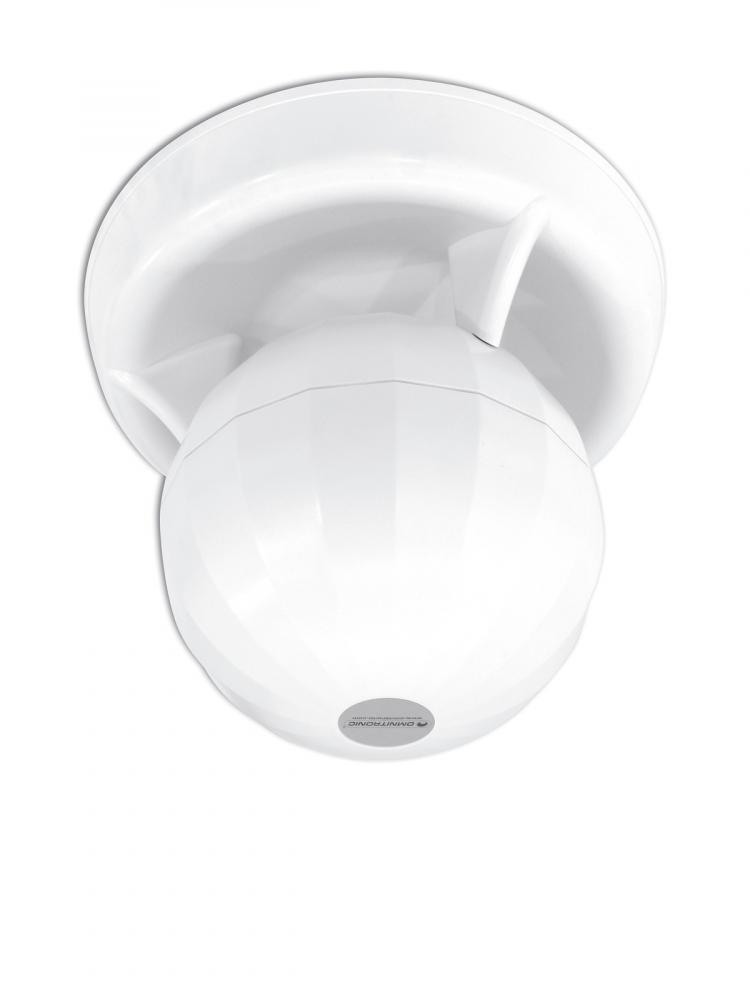

OMNITRONIC WP-10H Ceiling Speaker

OMNITRONIC

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC WP-10H Ceiling Speaker

Info
order code
80710403
product link
EAN
4026397279771
Product Name
OMNITRONIC WP-10H Ceiling Speaker
technical overview
Input voltage: 100 V
Components: 15 cm speaker (6")
15 W RMS (yellow)
30 W RMS (red)
COM (blue)
Sensitivity: 90 dB, ±3 dB
Weight: 2,5 kg
Size of woofer: (6") ca. 15 cm
Rated power: 20 W RMS
Program power: 40 W
Frequency range: 110 - 18000 Hz

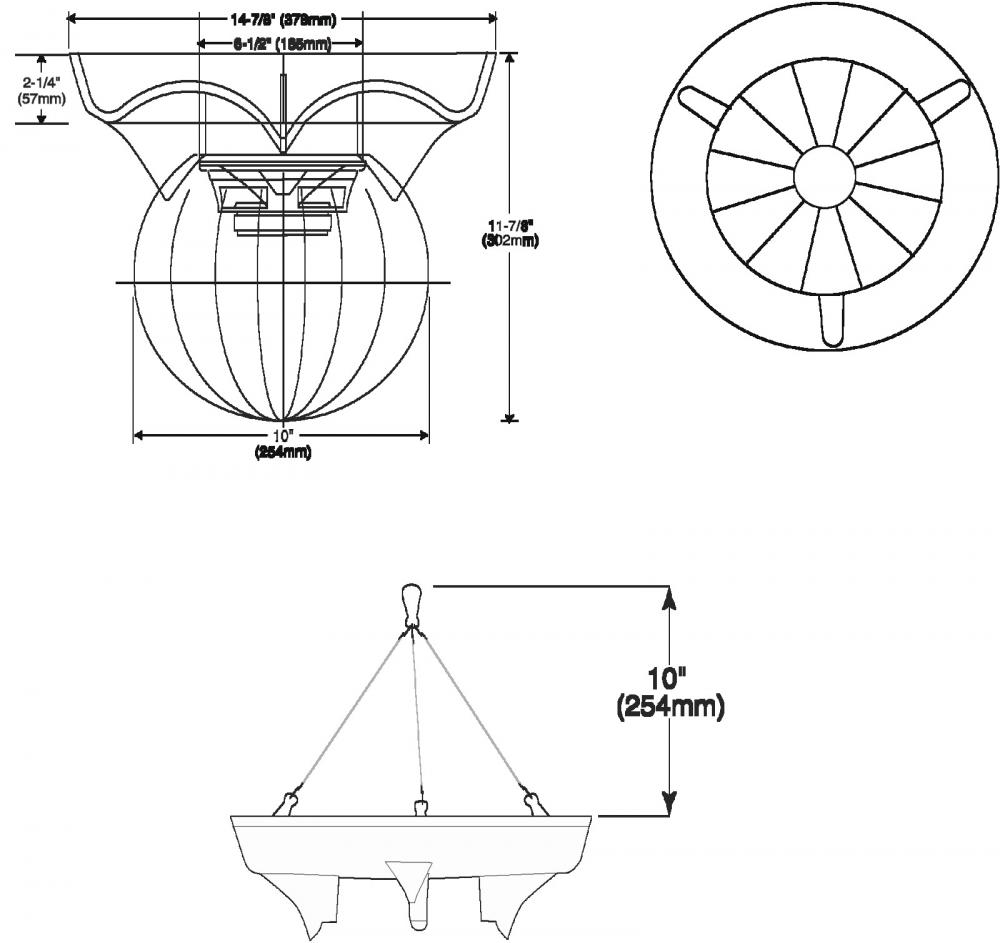

Height: 37,8 cm
Depth: 30,2 cm
Impedance: 100 V ELA
Diameter: 37,8 cm
main features
6" speaker, 100 V, 30 W RMS
-100 V speaker system with 3 power taps

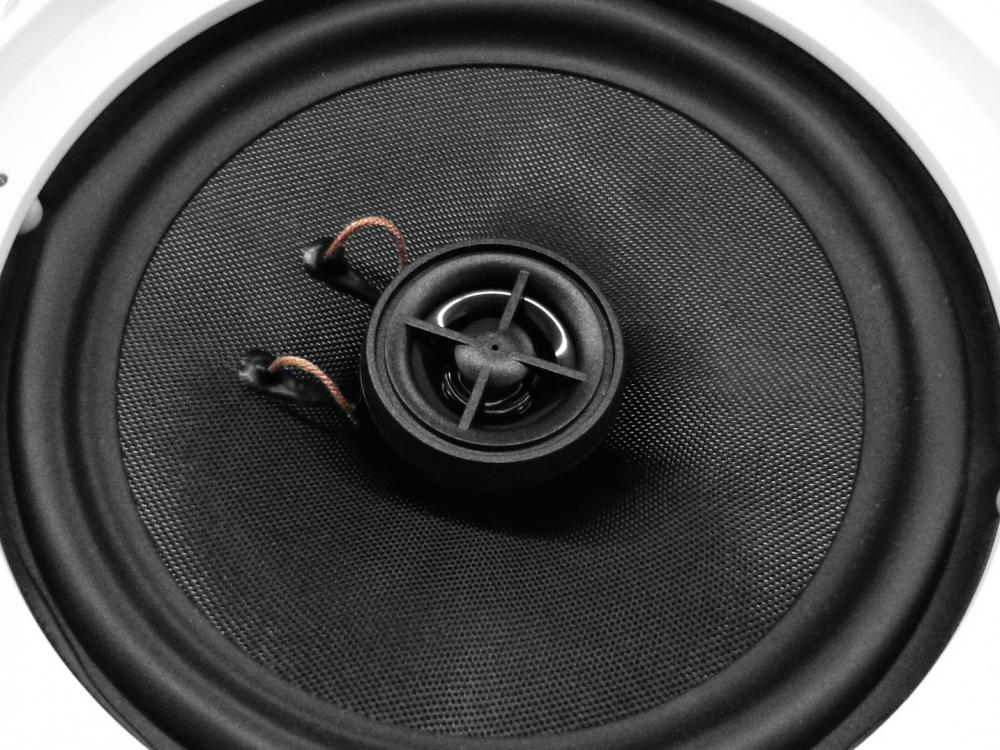

-2-way coaxial speaker
-Scratch-resistant plastic housing (ABS)
-Ceiling installation with supplied steel wires
-Independent audio cable
-For indoor amplifying systems
Audio
Frequency response, from
110 Hz
Frequency response, to
18000 Hz
Electrical
power consumption watt, max
20.00 W
Mechanical
weight
2.50 kg
height
378.00 mm
length
302.00 mm
outer diameter
378 mm
