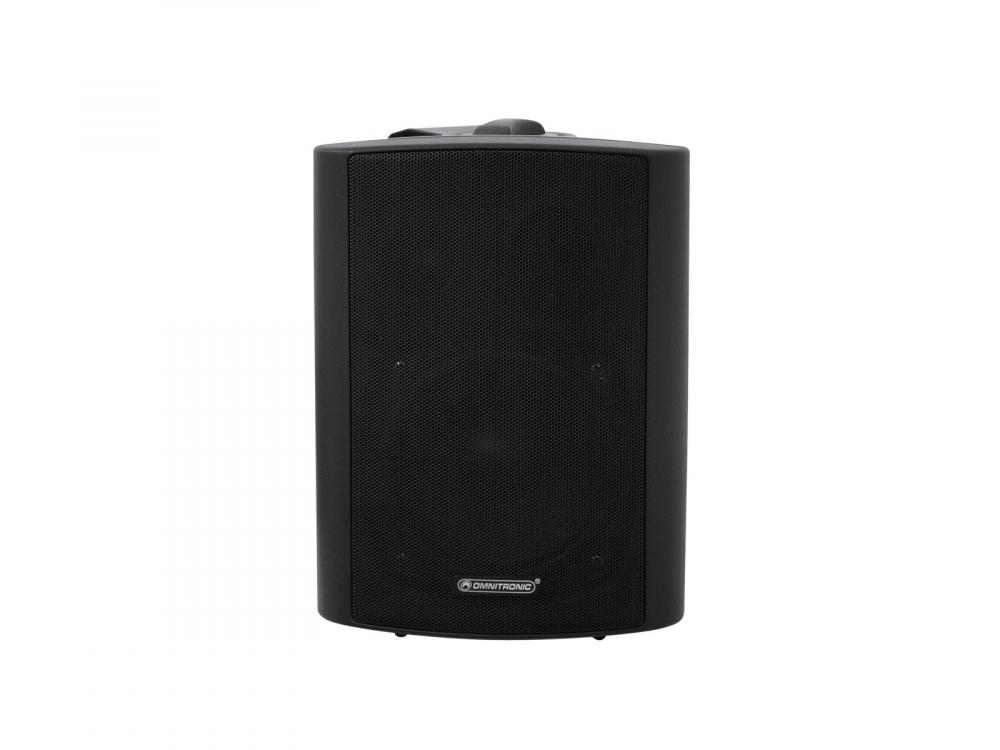

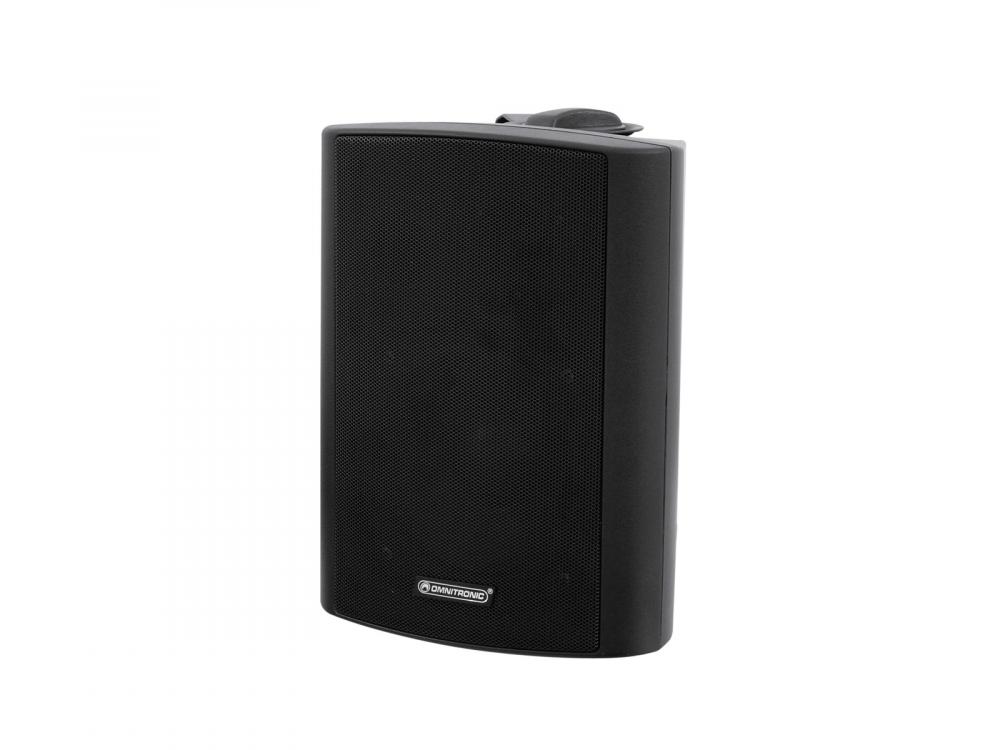

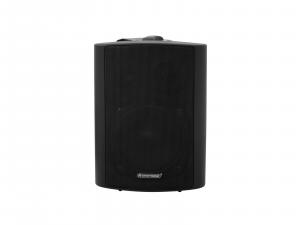

OMNITRONIC WPS-5S PA Wall Speaker

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC WPS-5S PA Wall Speaker

Info
order code
80710522
product link
EAN
4026397315714
Product Name
OMNITRONIC WPS-5S PA Wall Speaker
technical overview
Input voltage: 100 V
Sensitivity: 89 dB, ±3 dB
Maximum SPL: 103 dB
Weight: 2,6 kg
Size of woofer: (5") ca. 13 cm
Rated power: 30 W RMS
Program power: 60 W
Frequency range: 100 - 20000 Hz
Height: 24,2 cm
Depth: 16,2 cm
Width: 18,2 cm
Impedance: 100 V ELA
main features
2-way speaker with mount, 100 V, 3.75/7.5/15/30 W RMS
-100 V technology with high-quality components for hifi sound
-Multi-step power selector: 3.75 W, 7.5 W, 15 W, 30 W, OFF
-2-way bass-reflex system for powerful bass
-Black plastic housing (ABS) with metal grille
-Trapezoidal cabinet for corner installation

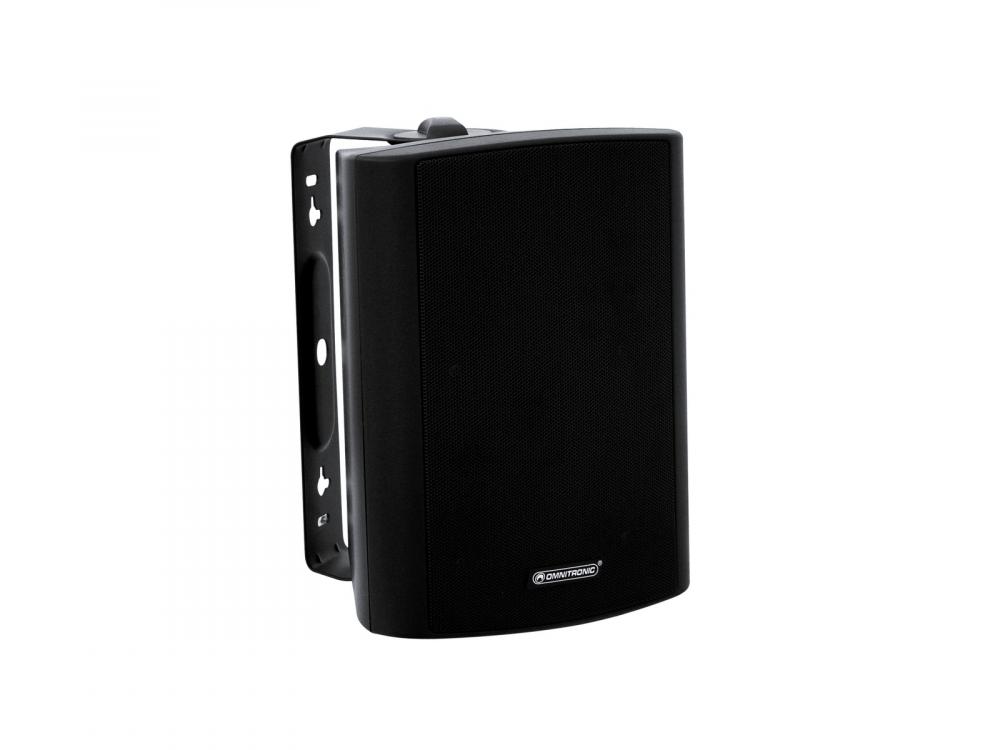

-Movable mounting bracket

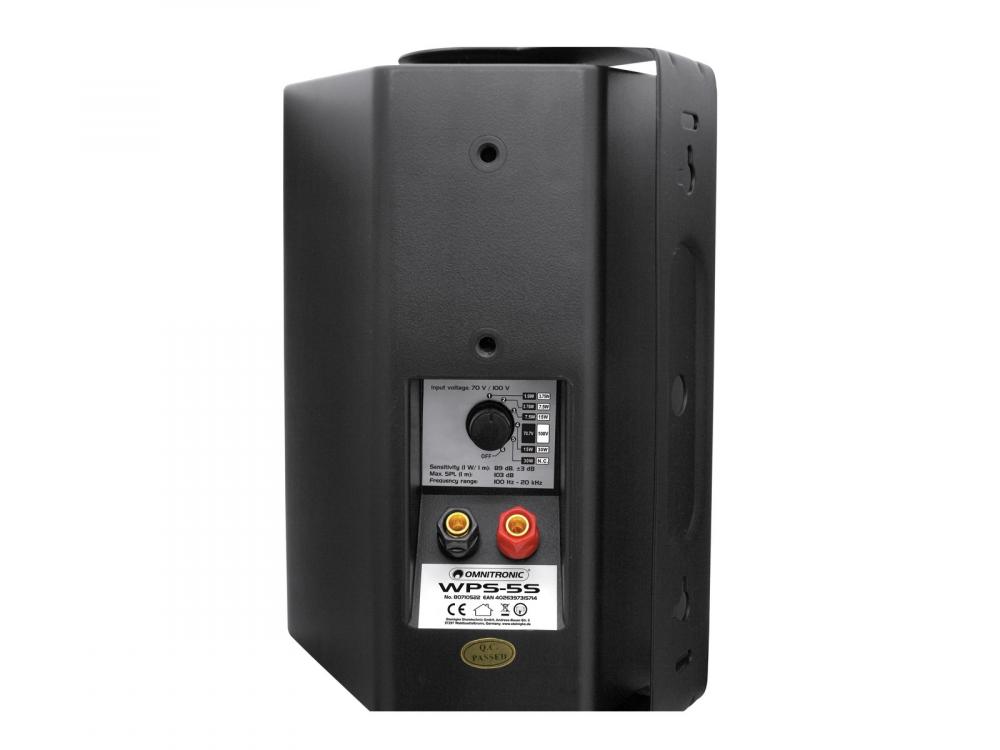

-Connection via screw terminals
-For indoor amplifying systems
Audio
Frequency response, from
100 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
30.00 W
Mechanical
weight
2.60 kg
width
182.00 mm
height
242.00 mm
length
162.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00069908.pdf
