Info | |
---|---|
order code |
80710533
|
product link | |
EAN |
4026397412192
|
Product Name |

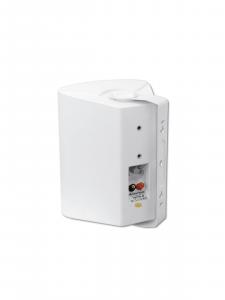

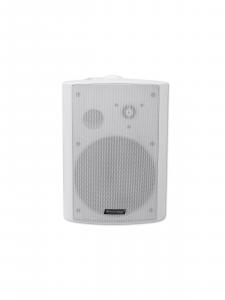

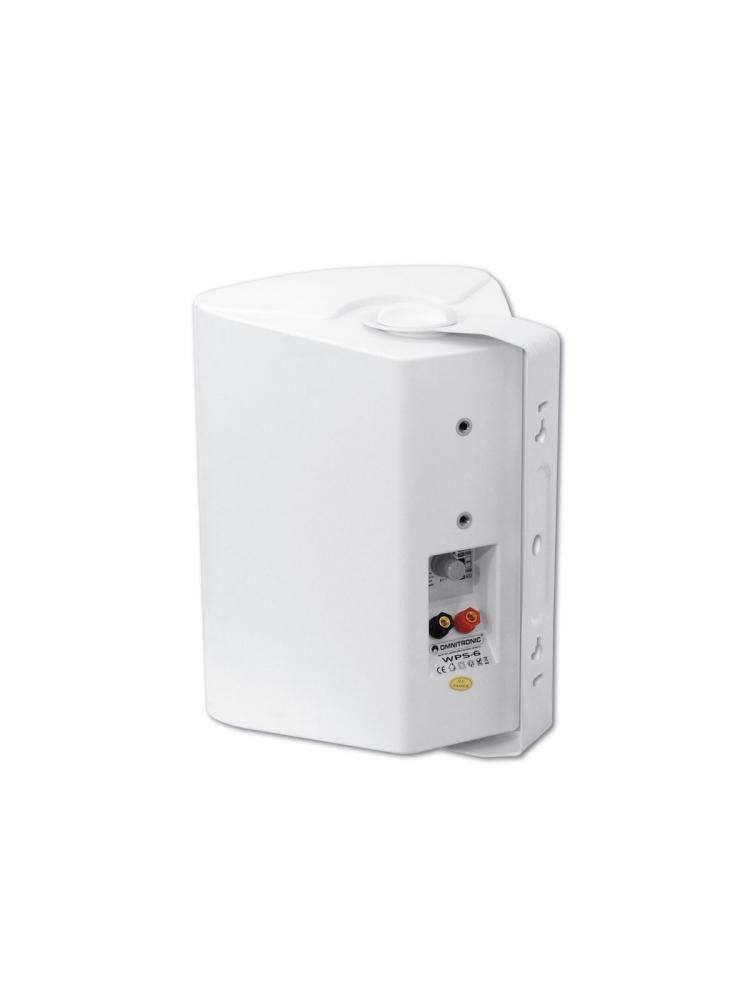

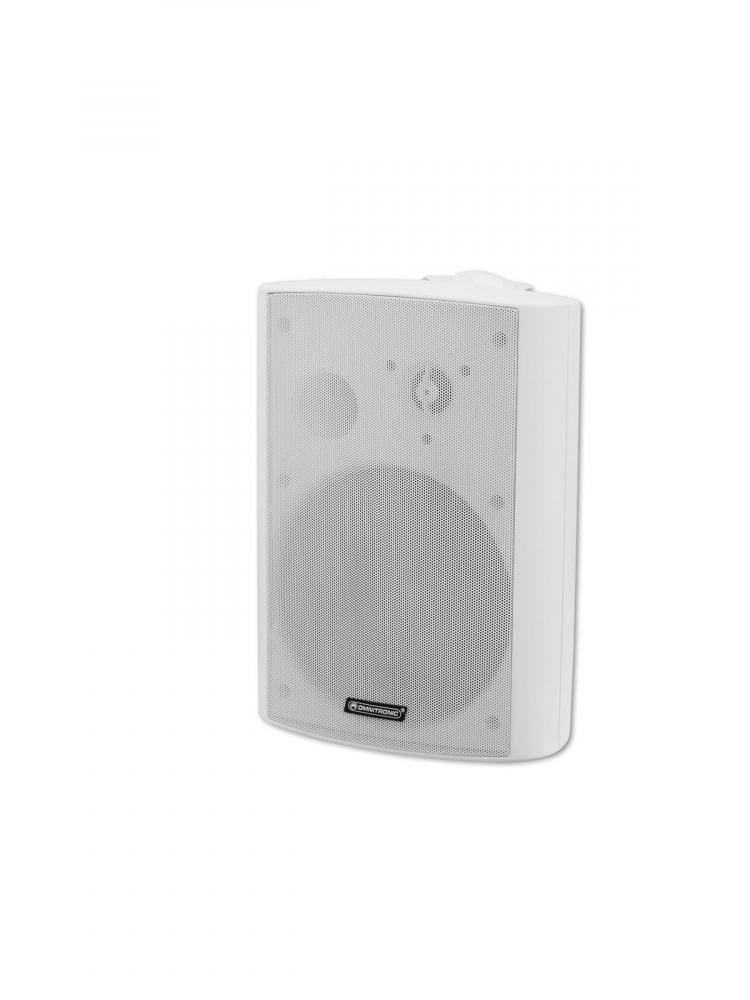

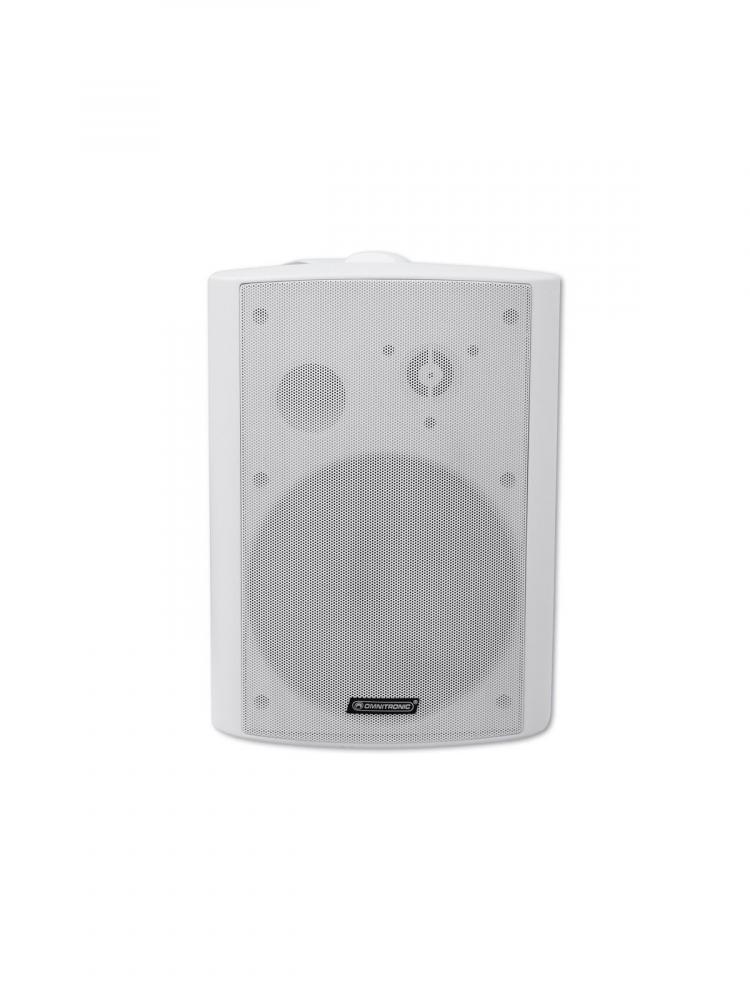

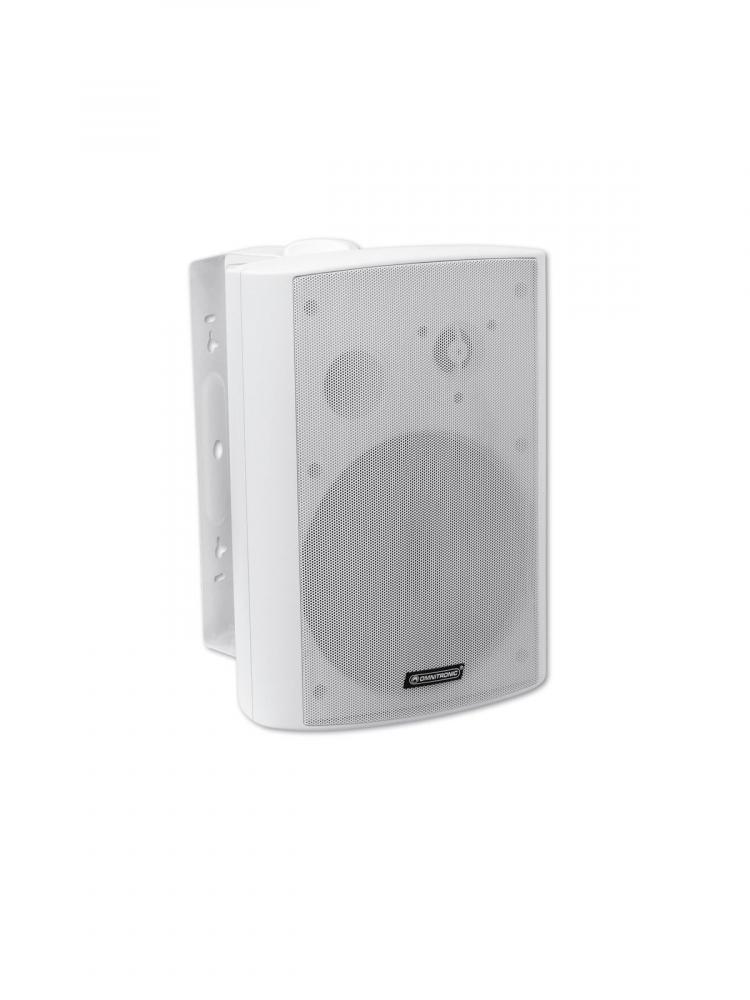

OMNITRONIC WPS-6W PA Wall Speaker
|
technical overview |
Input voltage: 100 V Sensitivity: 88 dB, ±3 dB Maximum SPL: 105 dB Weight: 3,5 kg Size of woofer: (6,5") ca. 17 cm Rated power: 40 W RMS Program power: 80 W Frequency range: 70 - 20000 Hz Height: 28,4 cm Depth: 19 cm Width: 21,5 cm Impedance: 100 V ELA |
main features |

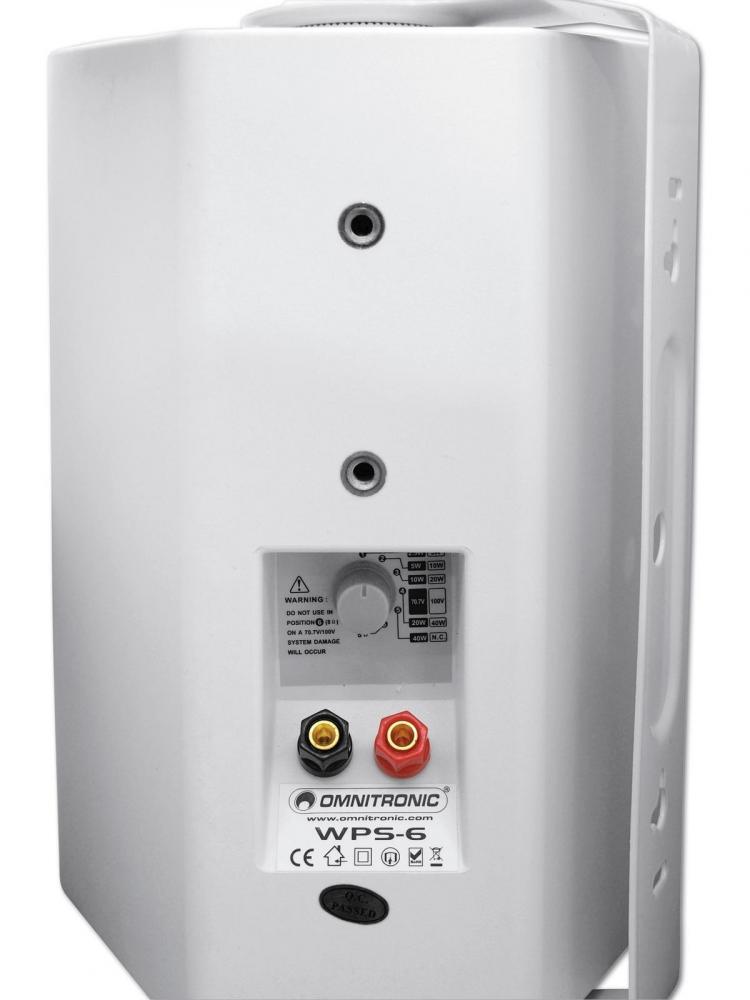

2-way speaker with mount, 100 V, 5/10/20/40 W RMS -100 V technology with high-quality components for hifi sound -Multi-step power selector: 5 W, 10 W, 20 W, 40 W, OFF -2-way bass-reflex system for powerful bass -White plastic housing (ABS) with metal grille -Trapezoidal cabinet for corner installation -Movable mounting bracket -Connection via screw terminals -For indoor amplifying systems |
Audio | |
Frequency response, from |
70 Hz
|
Frequency response, to |
20000 Hz
|
Electrical | |
power consumption watt, max |
40.00 W
|
Mechanical | |
weight |
3.50 kg
|
width |
215.00 mm
|
height |
284.00 mm
|
length |
190.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00069908.pdf |
