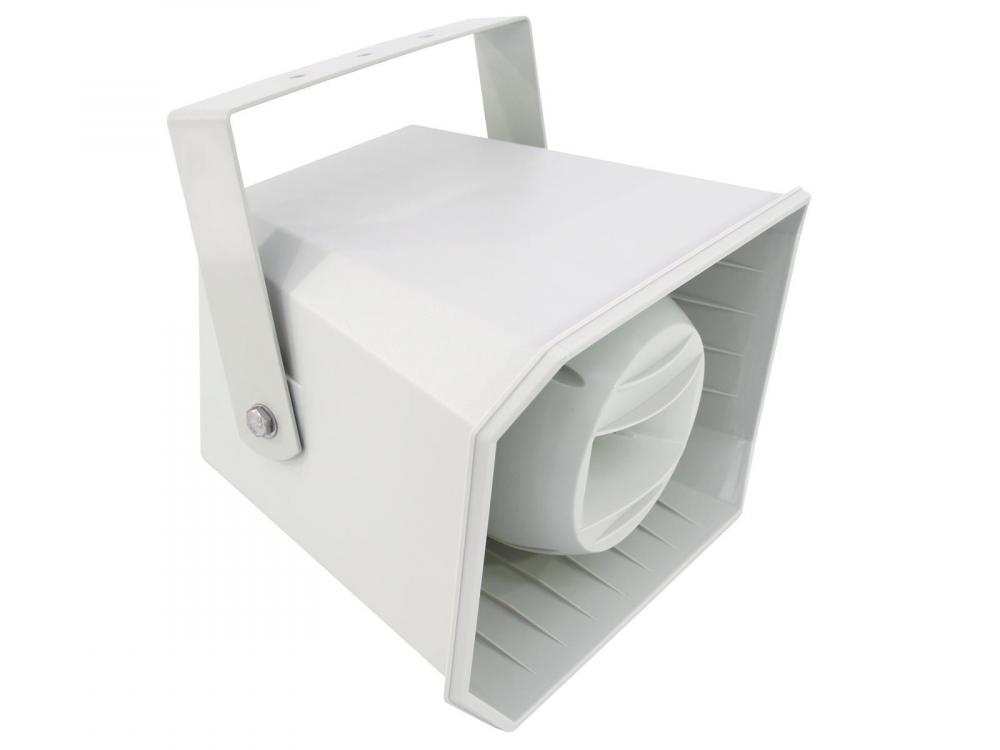

OMNITRONIC HS-60 PA Horn Speaker

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC HS-60 PA Horn Speaker

Info
order code
80710824
product link
EAN
4026397289190
Product Name
OMNITRONIC HS-60 PA Horn Speaker
technical overview
Input voltage: 100 V
Components: 15 cm speaker (6"), tweeter
4.5 W RMS (yellow+white)
9 W RMS (red+green)
12.5 W RMS (green+white)
25 W RMS (yellow+green)
50 W RMS (red+yellow)
8 ohms (red+black)
Sensitivity: 99 dB, ±3 dB
Maximum SPL: 115 dB
Weight: 3,9 kg
IP classification: IP44
Size of woofer: (6") ca. 15 cm
Rated power: 50 W RMS
Program power: 100 W
Frequency range: 90 - 20000 Hz
Height: 36,3 cm
Depth: 31 cm
Width: 25,3 cm
Impedance: 100 V ELA
main features
Weatherproof horn speaker with tweeter, 100 V 4.5/9/12.5/25/50 W RMS
-2-way speaker system
-100 V or 8-ohm operation
-100 V transformer with 6 power taps and 8-ohm connection
-15 cm conical speaker (6") and tweeter for extended frequency range
-High sound pressure and wide frequency range
-In weather-proof plastic housing (IP44)
-Screw terminals
-For outdoor amplifying systems in football stadiums, outdoor pools, open air events
Audio
Frequency response, from
90 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
50.00 W
IP rating
44
Mechanical
weight
3.90 kg
width
253.00 mm
height
363.00 mm
length
310.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00036578.pdf
