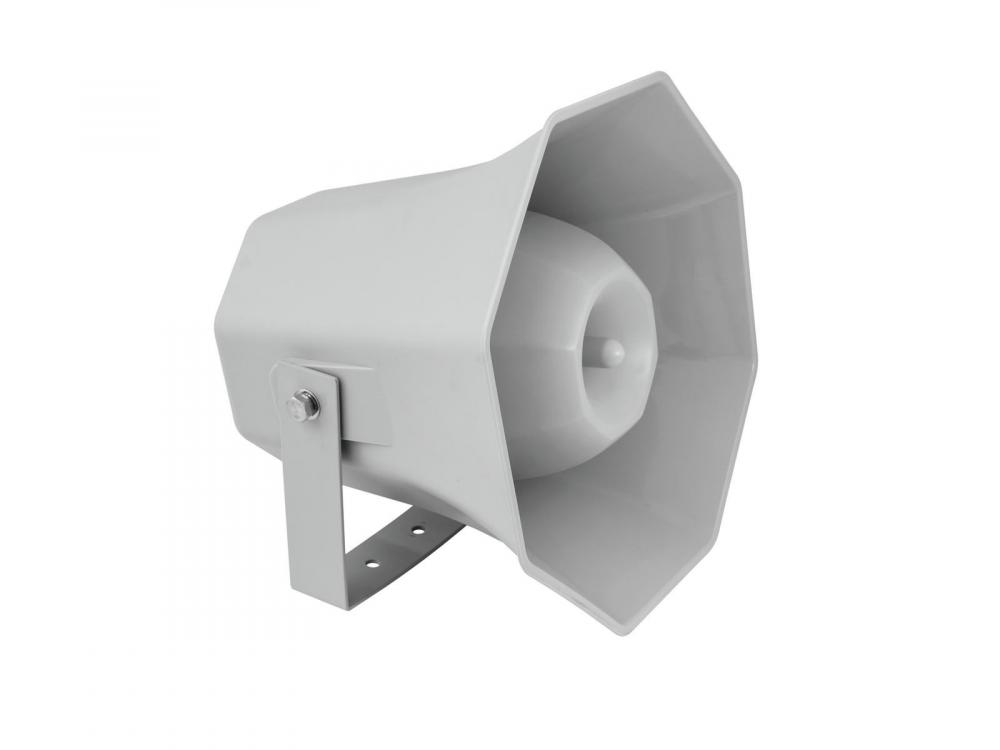

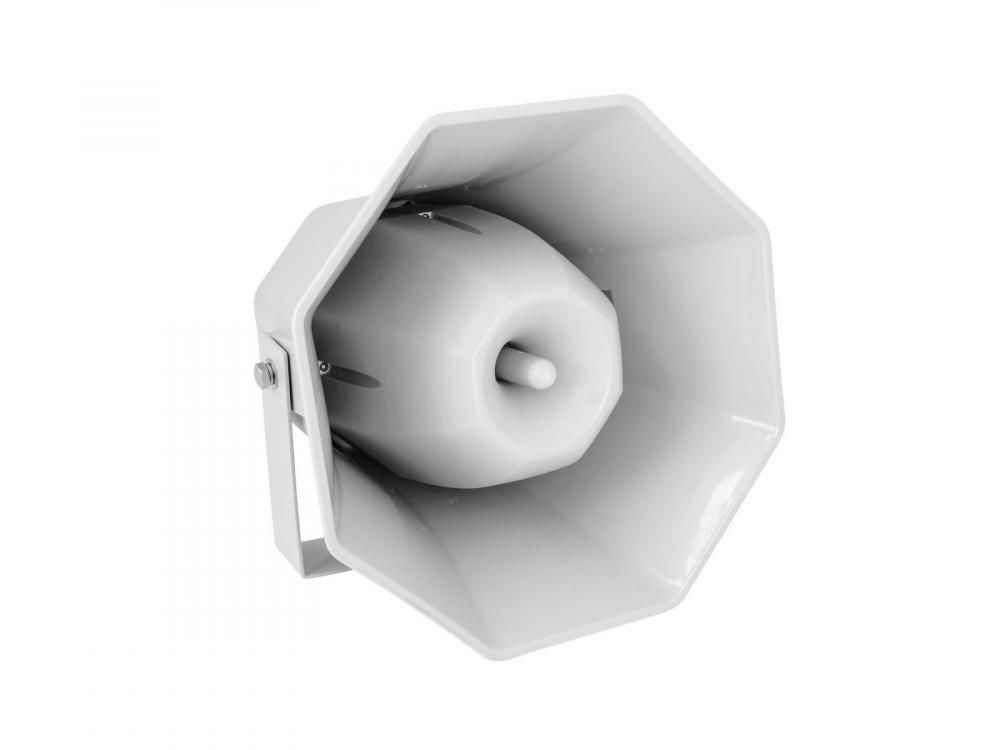

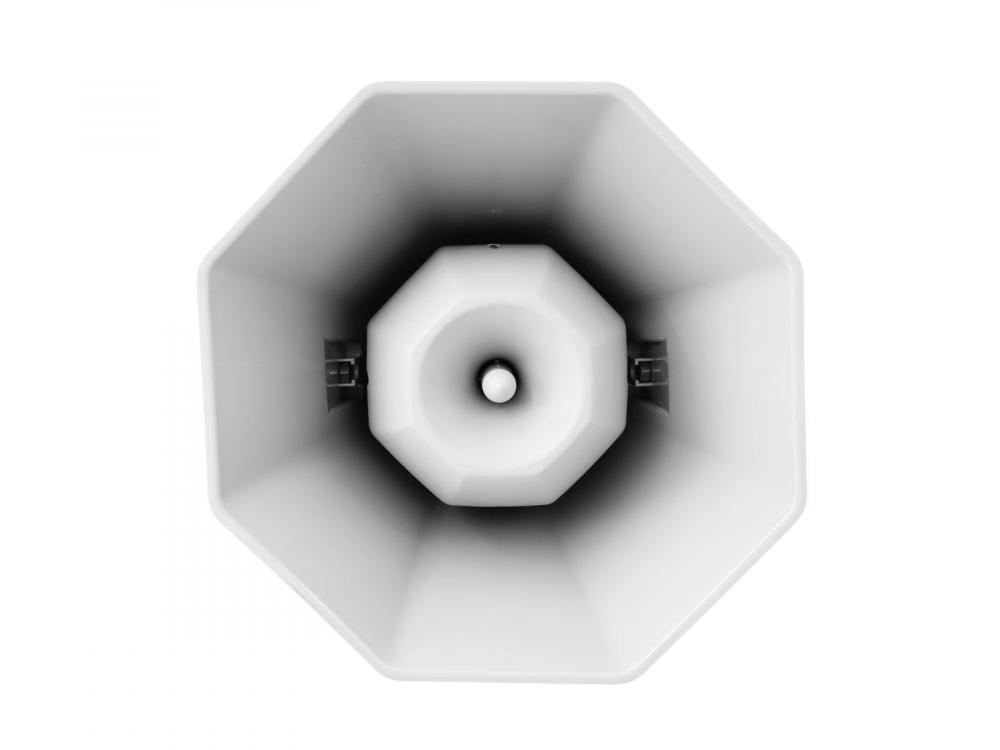

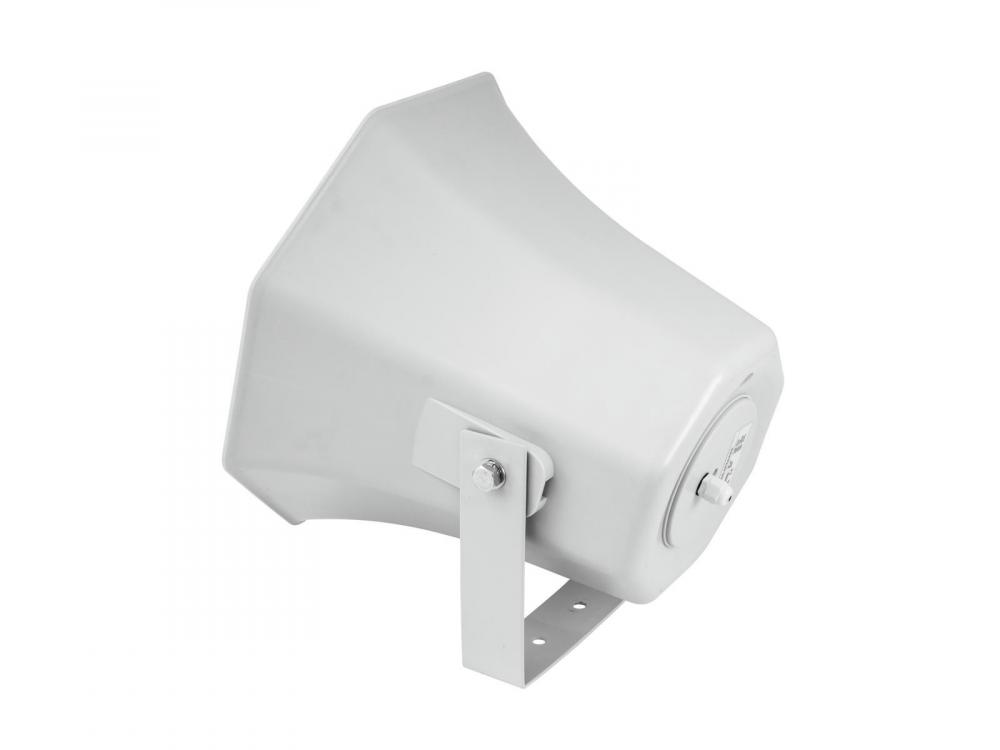

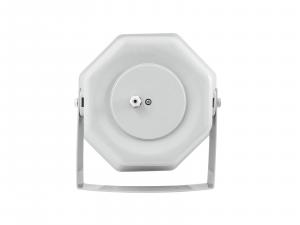

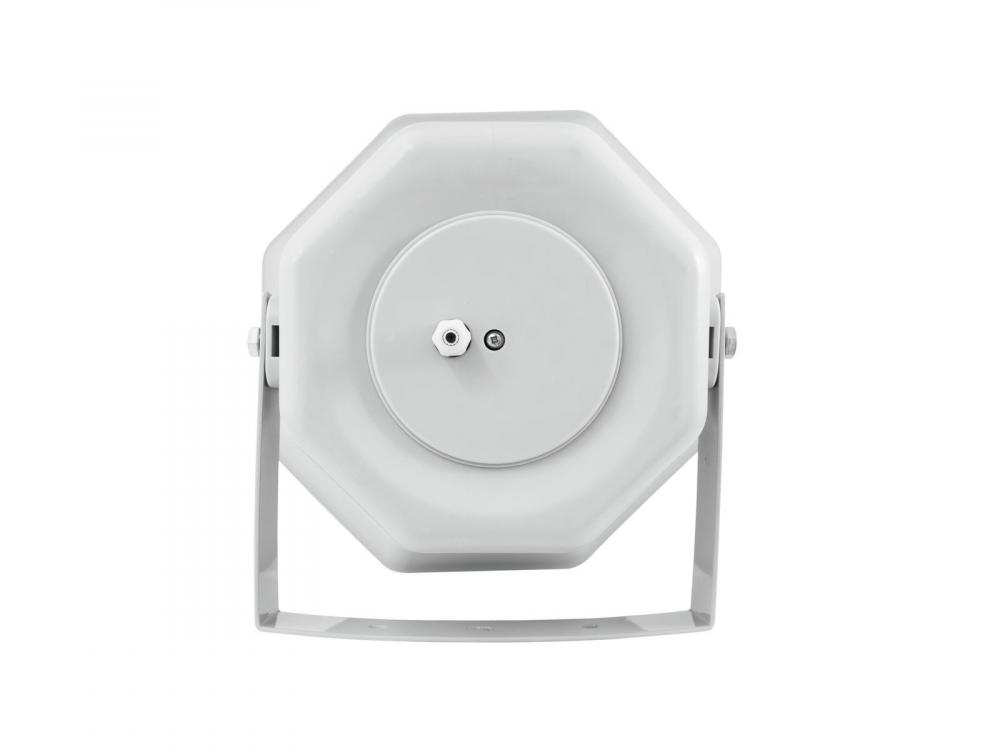

OMNITRONIC HS-80 PA Horn Speaker

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC HS-80 PA Horn Speaker

Info
order code
80710828
product link
EAN
4026397523072
Product Name
OMNITRONIC HS-80 PA Horn Speaker
technical overview
Input voltage: 100 V
Components: 16.5 cm woofer (6.5") and 2.5 cm tweeter (1")
20 W RMS (white)
40 W RMS (yellow)
80 W RMS (red)
COM (black)
Sensitivity: 99 dB
IP classification: IP44
Weight: 5,3 kg
Rated power: 80 W RMS
Program power: 160 W
Frequency range: 90 - 20000 Hz
Height: 34,8 cm
Depth: 28,8 cm
Width: 34,8 cm
Impedance: 100 V ELA
main features
Weatherproof speaker, LF: 6.5" HF: 1" - 100 V 20/40/80 W RMS
-2-way horn speaker for 100 V operation
-4 power taps (10 W, 20 W, 40 W, 80 W)
-16.5 cm woofer (6.5") and 2.5 cm tweeter (1")
-PTC tweeter protection
-High sound pressure and wide frequency range
-Weather-proof plastic housing (IP44)
-Octagonal enclosure
-Swivable mounting bracket
-Connection via terminal strip
-For outdoor amplifying systems in football stadiums, outdoor pools, open air events
Audio
Frequency response, from
90 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
80.00 W
IP rating
44
Mechanical
weight
5.30 kg
width
348.00 mm
height
348.00 mm
length
288.00 mm
