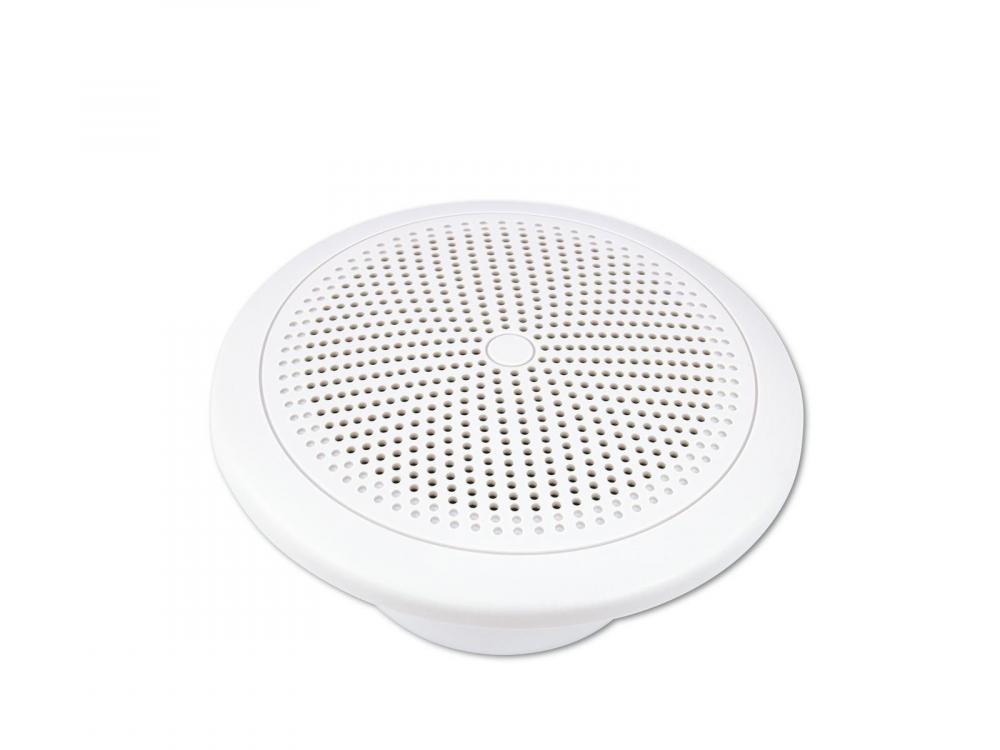

OMNITRONIC WF-5 Flush-Mount Speaker
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC WF-5 Flush-Mount Speaker
| Info | |
|---|---|
| order code |
80710864
|
| product link | |
| EAN |
4026397289244
|
| Product Name |
OMNITRONIC WF-5 Flush-Mount Speaker
|
| technical overview |
Components: 13 cm woofer (5"), 2.5 cm tweeter (1") Connection: 2-pin terminal Sensitivity: 90 dB, ±3 dB Impedance: 8 ohms Mounting cutout: 140 mm ø Mounting depth: 60 mm Weight: 0,7 kg IP classification: IP44 Size of woofer: (5") ca. 13 cm Rated power: 25 W RMS Program power: 45 W Frequency range: 95 - 20000 Hz Height: 16,5 cm Depth: 7,5 cm Width: 16,5 cm Impedance: 8 Ohm |
| main features |
Weatherproof 2-way speaker, LF: 5" HF: 1", 25 W RMS / 8 ohms Ø 164 mm -2-way system with 13 cm woofer (5") and 2.5 cm tweeter (1") -8 ohm speaker system -Splash-proof (IP44) construction for outdoor use -White plastic housing -For outdoor and indoor amplifying systems |
| Audio | |
| Frequency response, from |
95 Hz
|
| Frequency response, to |
20000 Hz
|
| impedance |
8 ohm
|
| Electrical | |
| power consumption watt, max |
25.00 W
|
| IP rating |
44
|
| Mechanical | |
| weight |
0.70 kg
|

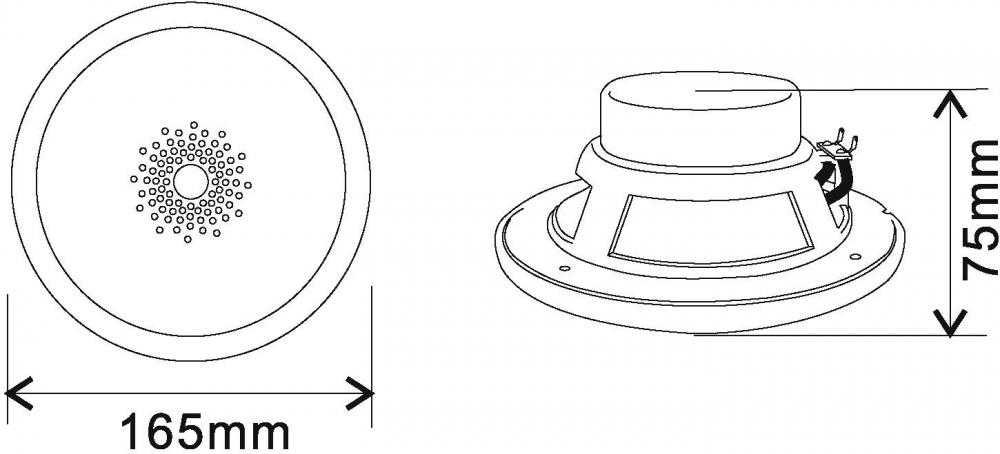

| width |
165.00 mm
|
| height |
165.00 mm
|
| length |
75.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00042150.pdf |
