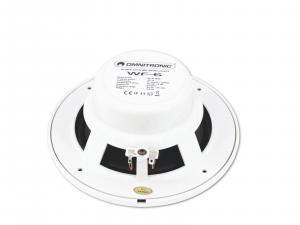

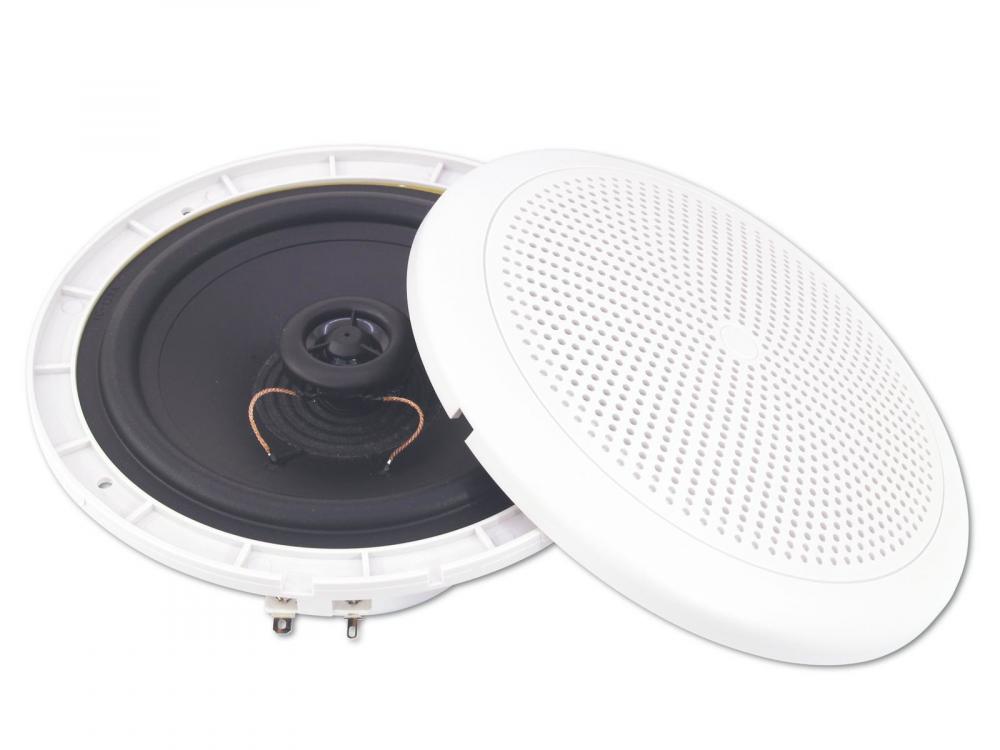

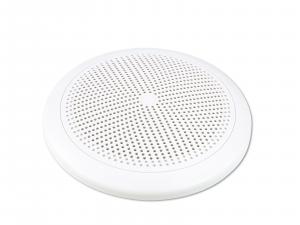

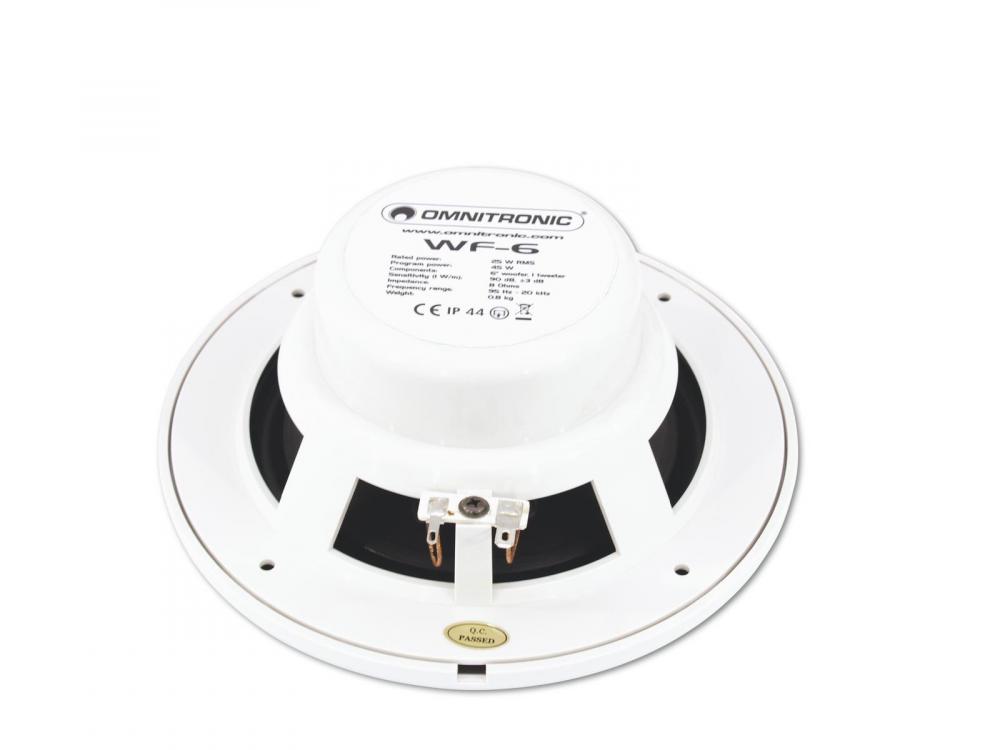

OMNITRONIC WF-6 Flush-Mount Speaker
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC WF-6 Flush-Mount Speaker
| Info | |
|---|---|
| order code |
80710865
|
| product link | |
| EAN |
4026397289275
|
| Product Name |
OMNITRONIC WF-6 Flush-Mount Speaker
|
| technical overview |
Components: 15 cm woofer (6"), 2.5 cm tweeter (1") Connection: 2-pin terminal Sensitivity: 90 dB, ±3 dB Impedance: 8 ohms Mounting cutout: 164 mm ø Mounting depth: 65 mm Weight: 0,78 kg IP classification: IP44 Size of woofer: (6") ca. 15 cm Rated power: 25 W RMS Program power: 45 W Frequency range: 95 - 20000 Hz Height: 19 cm Depth: 9 cm Width: 19 cm Impedance: 8 Ohm |
| main features |
Weatherproof 2-way speaker, LF: 6" HF: 1", 25 W RMS / 8 ohms Ø 190 mm -2-way system with 6" bass speaker and 2.5 cm tweeter (1") -8 ohm speaker system -Splash-proof (IP44) construction for outdoor use -White plastic housing -Installation via drill holes in the housing -For outdoor and indoor amplifying systems |
| Audio | |
| Frequency response, from |
95 Hz
|
| Frequency response, to |
20000 Hz
|
| impedance |
8 ohm
|
| Electrical | |
| power consumption watt, max |
25.00 W
|
| IP rating |
44
|
| Mechanical | |
| weight |
0.78 kg
|

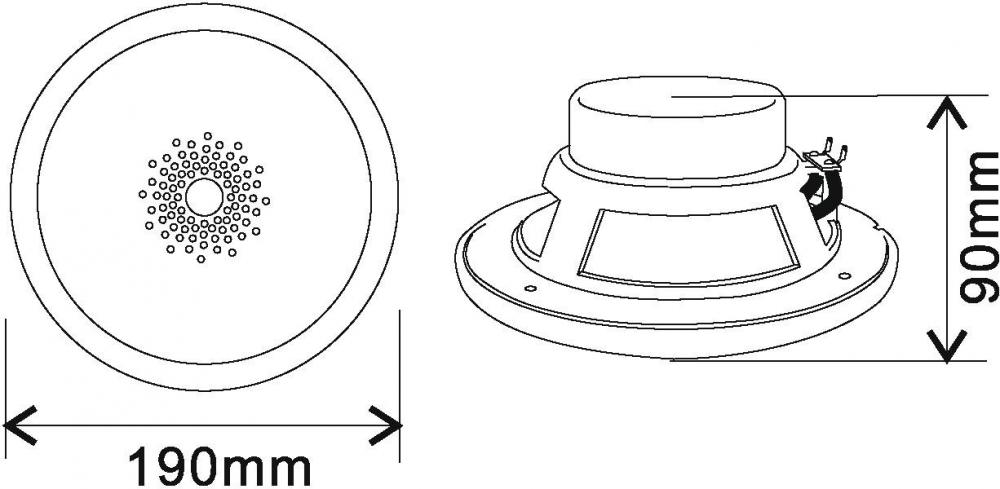

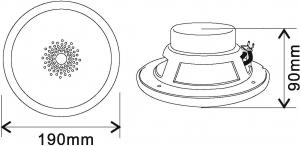

| width |
190.00 mm
|
| height |
190.00 mm
|
| length |
90.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| no files provided by the manufacturer |
