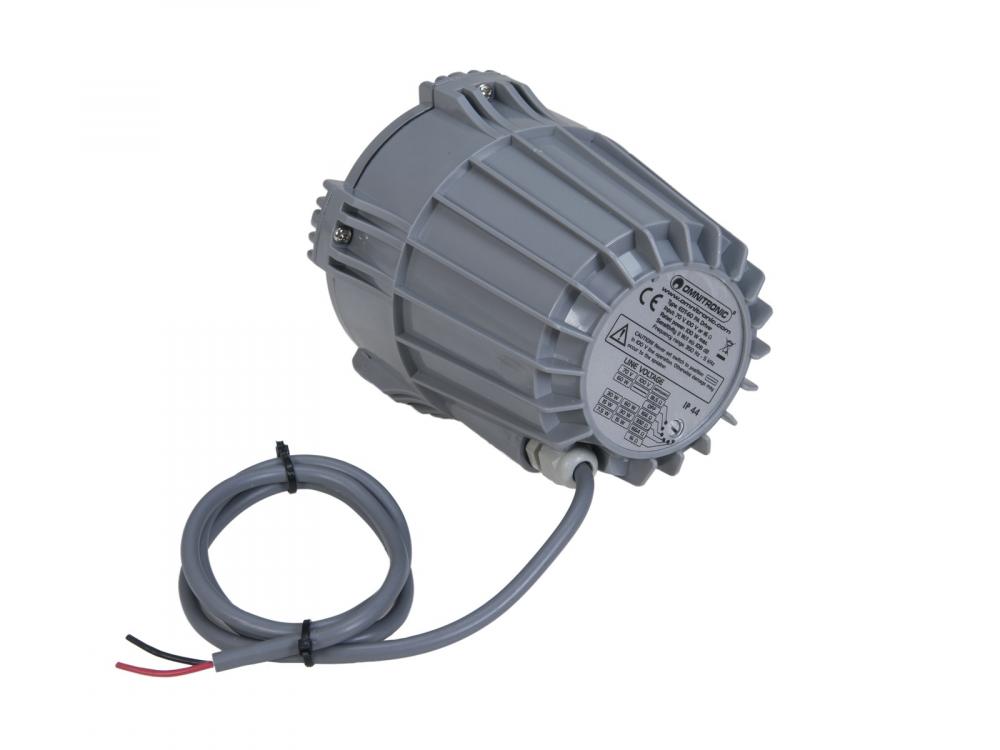

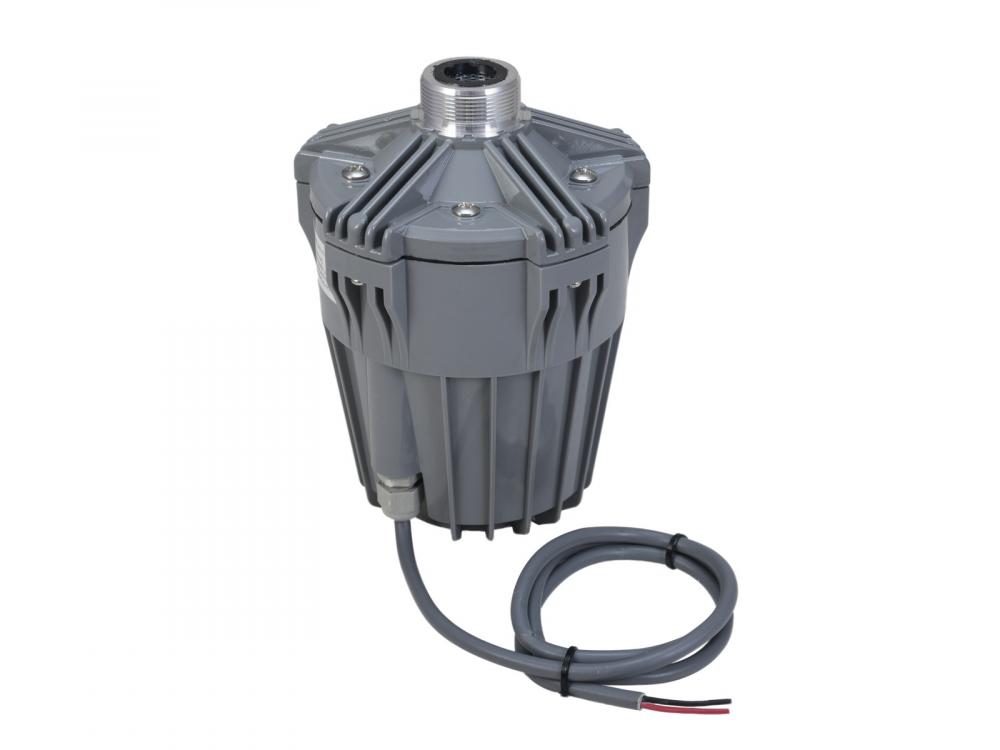

OMNITRONIC ED-60T Horn Driver
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC ED-60T Horn Driver
| Info | |
|---|---|
| order code |
80710890
|
| product link | |
| EAN |
4026397303025
|
| Product Name |
OMNITRONIC ED-60T Horn Driver
|
| technical overview |
Input: 70 V, 100 V or 16 ohms Sensitivity: 108 dB Throat diameter: 2.5 cm (1") Thread diameter: 35 mm Weight: 3 kg IP classification: IP44 Rated power: 60 W RMS Program power: 120 W Frequency range: 350 - 5000 Hz Diameter: 12,2 cm Height: 17,3 cm Impedance: 100 V ELA |
| main features |
Weatherproof driver, 70/100 V or 16 ohms, 60 W RMS -60 W horn driver matching the horns EH-310, EH-400, and EH-560 -Applicable for operation with 70 V, 100 V or 16 ohms -Power selector switch -35 mm mounting flange (3.5 cm/1 3/8") -Splash-proof (IP44) construction for outdoor use |
| Audio | |
| Frequency response, from |
350 Hz
|
| Frequency response, to |
5000 Hz
|
| impedance |
16 ohm
|
| Electrical | |
| power consumption watt, max |
60.00 W
|
| IP rating |
44
|
| Mechanical | |
| weight |
3.00 kg
|
| height |
173.00 mm
|
| outer diameter |
122 mm
|
