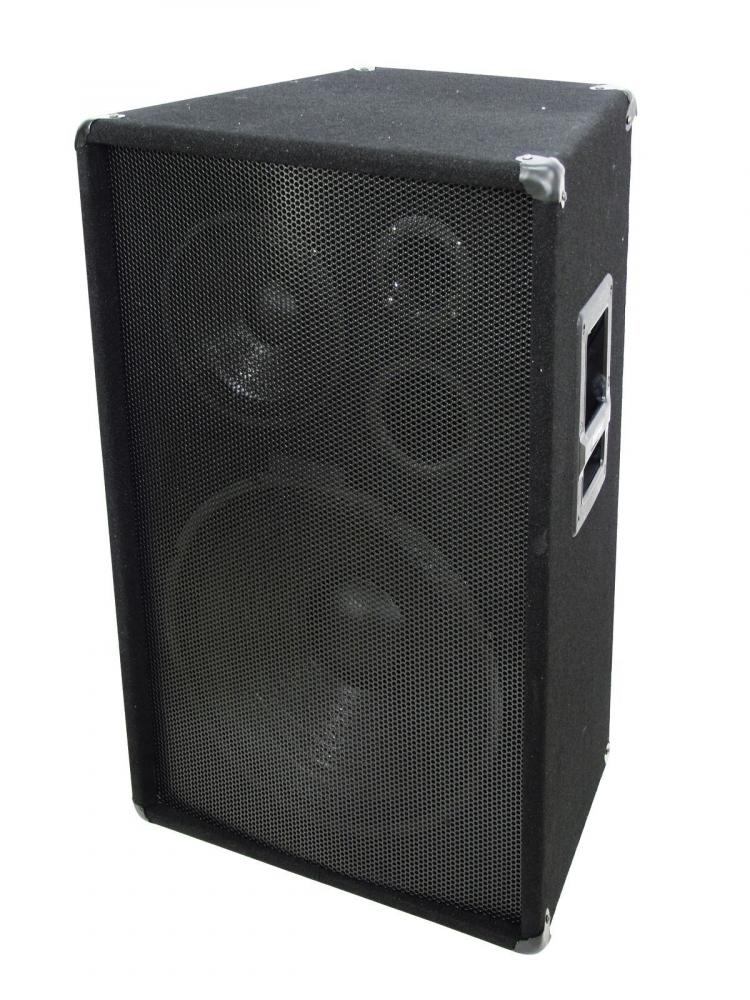

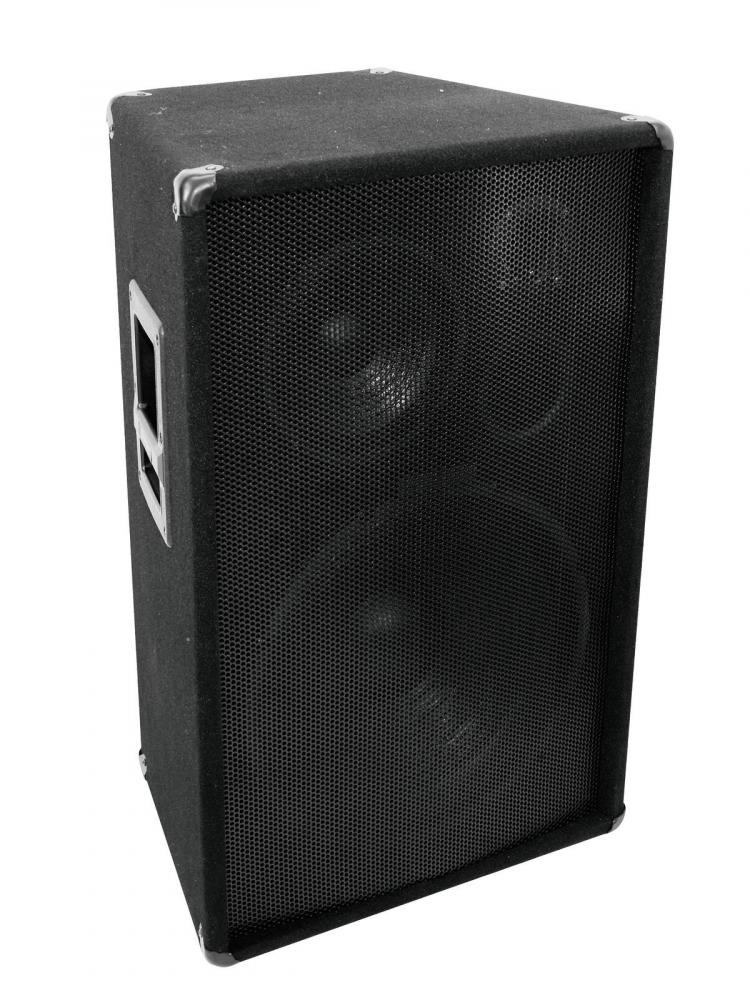

OMNITRONIC TMX-1530 3-Way Speaker 1000W

OMNITRONIC

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC TMX-1530 3-Way Speaker 1000W

Info
order code
11038581
product link
EAN
4026397101171
Product Name
OMNITRONIC TMX-1530 3-Way Speaker 1000W
technical overview
Components: 38 cm woofer (15"), 20 cm mid-range speaker (8"), tweeter

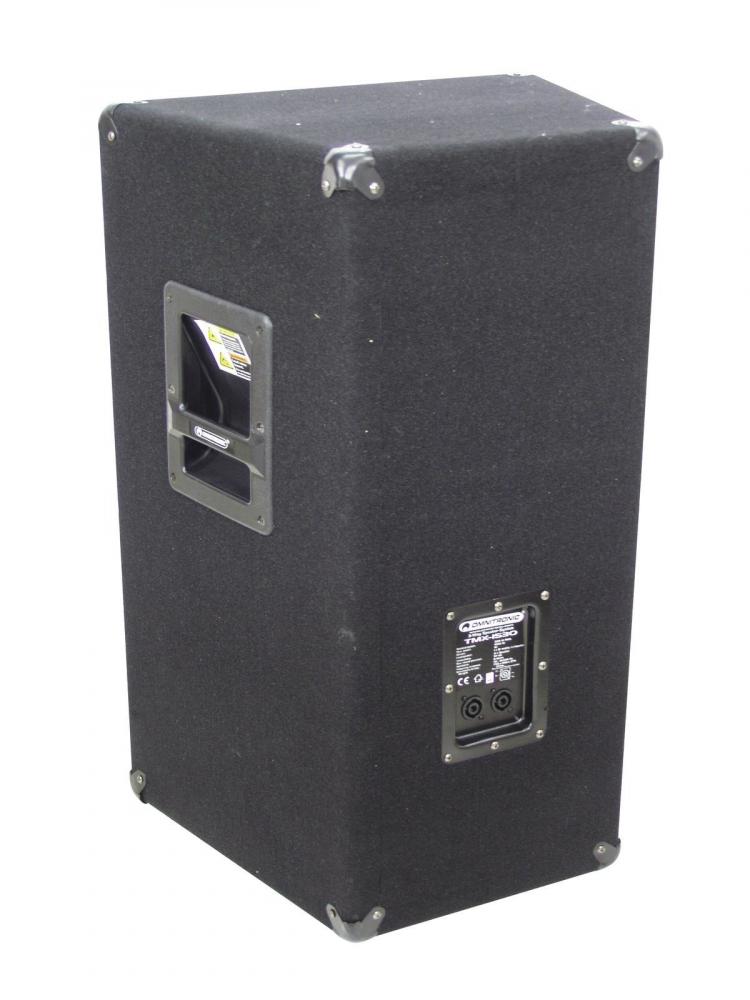

Connection: 2 Speaker sockets
Sensitivity: 97 dB
Dimensions (H x W x D): 755 x 490 x 370 mm
Weight: 19,75 kg
Frequency range: 30 - 18000 Hz
Rated power: 500 W RMS
Program power: 1000 W
Size of woofer: (15") ca. 38 cm
Number of bass-woofer: 1 Pc/Pcs
Height: 75,5 cm
Depth: 37 cm
Width: 49 cm
Impedance: 8 Ohm
main features
Full-Range speaker-system for disco or live music with 15" woofer and 1000 watts power
-Rugged Full-Range speaker-system in a stable wooden housing
-38 cm woofer (15") with special, higly temperature resistant vibrating coil
-Tweeter with coil-driver for powerful treble
-Mid-range membrane loudspeaker for a smooth sound when reproducing speech or singing
-With passive 3-way crossover
-Powerful bass via voluminous housing and bass-reflex tube
-Very high durability
-With bar handles
-Scratch-resistant, black felt-covering
-Strong protective grille for perfect protection
-With stable protective steel corners

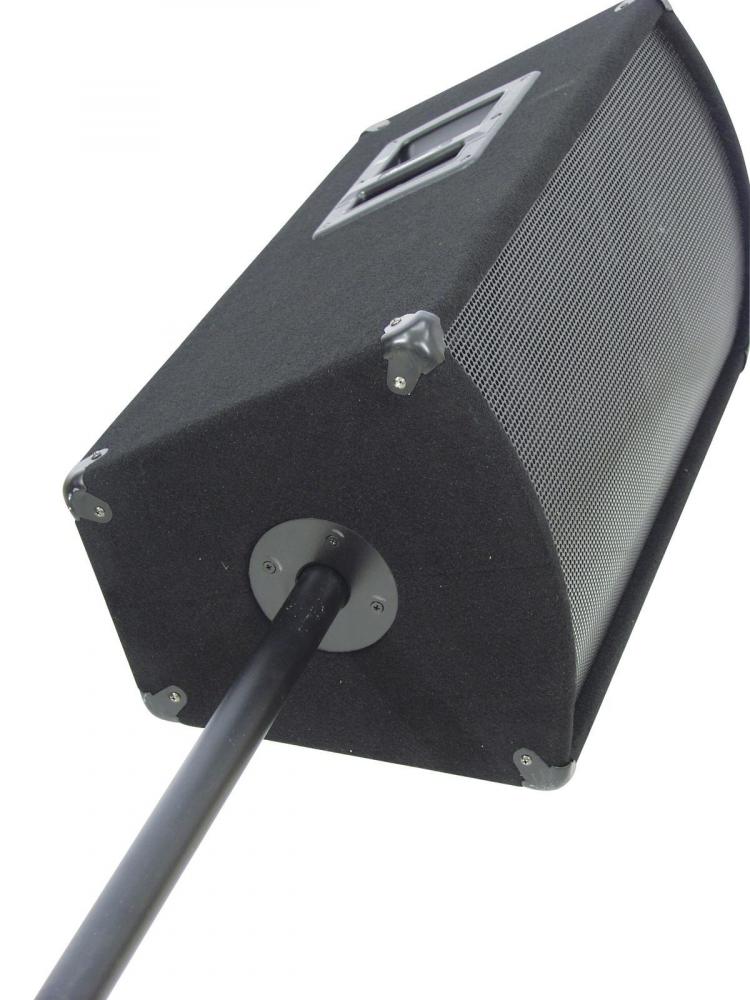

-With flange for speaker-stand installation etc.
-Compact speaker-system for car transport
-The ideal speaker-system for live music, presentations, bands etc.
Audio
Frequency response, from
30 Hz
Frequency response, to
18000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
500.00 W
Mechanical
weight
19.75 kg
width
490.00 mm
height
755.00 mm
length
370.00 mm
