OMNITRONIC VFM-210A 2-Way Speaker, active

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC VFM-210A 2-Way Speaker, active

Info
order code
11038769
product link
EAN
4026397537185
Product Name
OMNITRONIC VFM-210A 2-Way Speaker, active
technical overview
Power supply: 100-240 V AC, 50/60 Hz
LF speaker: 25 cm bass/mids (10") with 40 mm voice coil
HF speaker: 25 mm compression driver (1")
Inputs:
1 Mic: combination XLR/6.3 mm jack
1 Line: stereo RCA
AUX: 3.5 mm jack
Outputs:
1 Line: stereo RCA
Maximum SPL: 115 dB
Weight: 7 kg
Program power: 180 W
Rated power: 90 W RMS
Size of woofer: (10") ca. 25 cm
Number of bass-woofer: 1 Pc/Pcs
Frequency range: 65 - 20000 Hz
Height: 54,5 cm
Depth: 29,5 cm
Width: 36 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 110-240 V AC, 50/60 Hz
main features
Aktive speaker, 10" woofer, 1" driver, 90 W RMS
-Class A/B circuitry: optimum sound and power at low weight and compact dimensions
-2-way bass-reflex system with 25 cm woofer and 2.5 cm tweeter

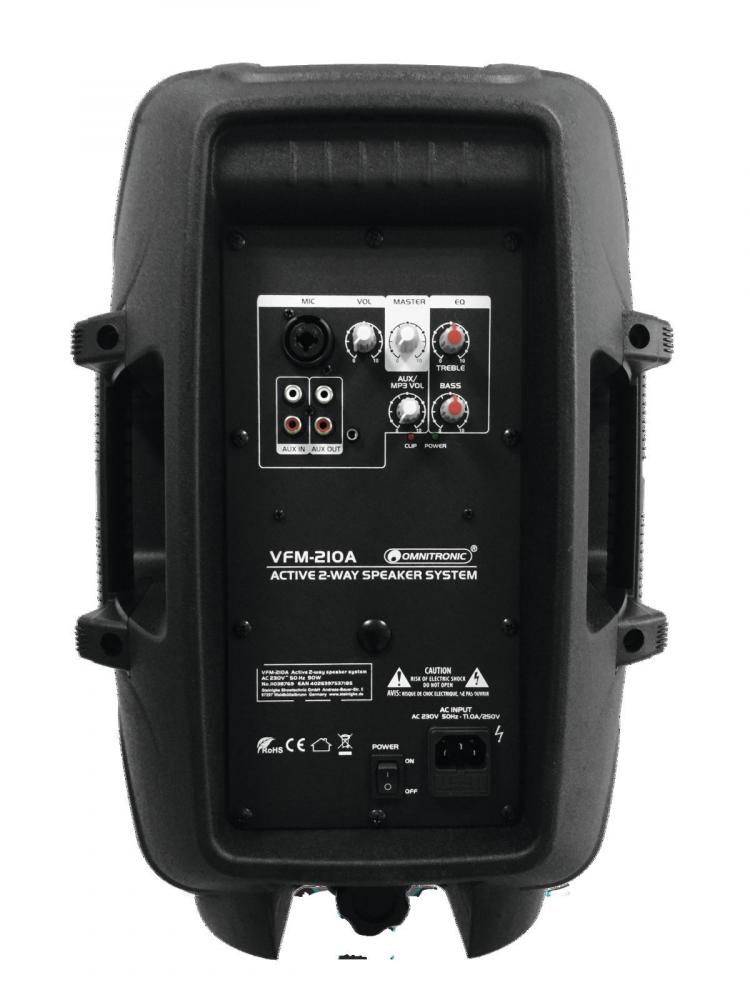

-1 mic input with separate level controls
-Line input, RCA
-3.5 mm AUX input
-Master control with 2-way tone control, clip and power LED
-Line output for linking further active speaker systems
-Stable plastic housing with protective grille and handles
-Flange for stand installation
-Can be used as floor monitor, standing, on a speaker stand or wall holder
-For mobile live and DJ applications
-Master equalizer: 1 x 2 band tone control
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Audio
Frequency response, from
65 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
90.00 W
AC Volts, min
110 V
AC Volts, max
240 V
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
Mechanical
weight
7.00 kg
width
360.00 mm
height
545.00 mm
length
295.00 mm
