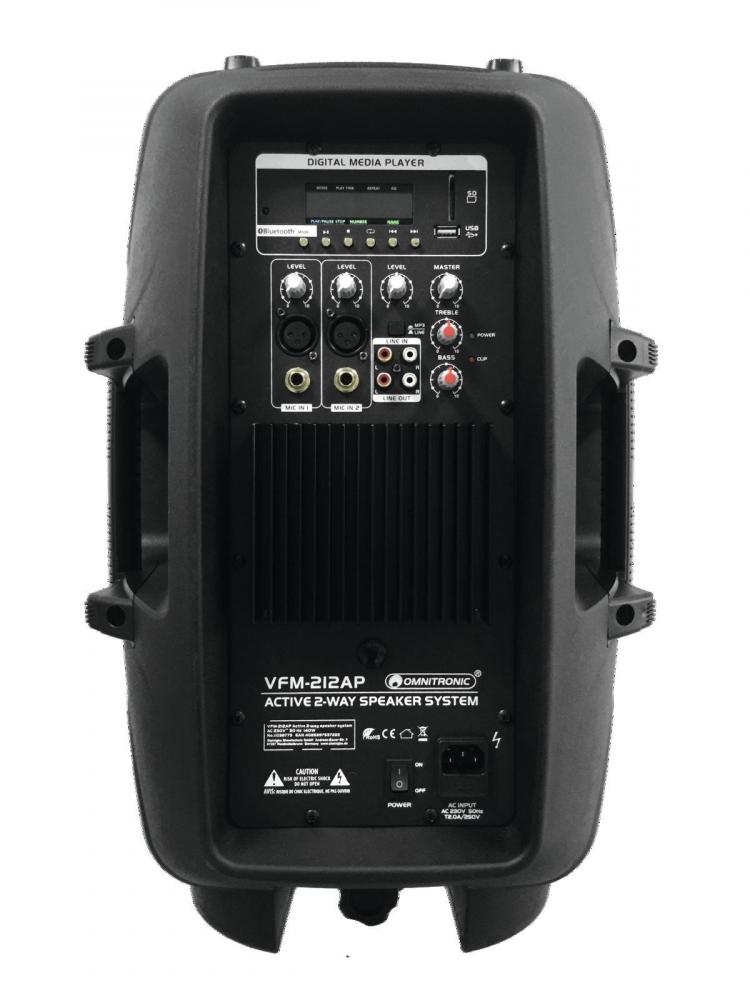

OMNITRONIC VFM-212AP 2-Way Speaker, active

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC VFM-212AP 2-Way Speaker, active

Info
order code
11038773
product link
EAN
4026397537222
Product Name
OMNITRONIC VFM-212AP 2-Way Speaker, active
technical overview
Power supply: 230 V AC, 50 Hz
LF speaker: 30 cm bass/mids (12") with 40 mm voice coil
HF speaker: 25 mm compression driver (1")
Storage media: USB devices and SD(HC) cards (FAT32)
Playback format: MP3, WAV
Number of files: max. 999
Inputs:
2 Mic: 3-pin XLR or 6.3 mm jack, unbal.
1 Line: stereo RCA
Outputs:
1 Line: stereo RCA
Maximum SPL: 120 dB
Weight: 10,25 kg
Program power: 280 W
Rated power: 140 W RMS
Size of woofer: (12") ca. 30 cm
Number of bass-woofer: 1 Pc/Pcs
Frequency range: 50 - 20000 Hz
Height: 63 cm
Depth: 34,2 cm
Width: 42 cm
Audio player: USB + SD + Bluetooth
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
main features
Active 2-way speaker system (12") with 140 watts for PA and DJ applications with audio player and Bluetooth
-MP3 player with Bluetooth receiver, blue LCD and IR remote control
-SD card slot and USB input
-Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
-Class A/B circuitry: optimum sound and power at low weight and compact dimensions
-2-way bass-reflex system with 30 cm woofer and 2.5 cm tweeter
-2 mic inputs with separate level controls
-Line input, RCA
-Master control with 2-way tone control, clip and power LED
-Line output for linking further active speaker systems
-2 wheels for easy transport
-Stable plastic housing with protective grille and handles
-Flange for stand installation
-Can be used as floor monitor, standing, on a speaker stand or wall holder
-For mobile live and DJ applications
-Master equalizer: 1 x 2 band tone control
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: IR remote control (provided)
Audio
Frequency response, from
50 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
140.00 W
AC Volts, min
230 V
AC Volts, max
230 V
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
Mechanical
weight
10.25 kg
width
420.00 mm
height
630.00 mm
length
342.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00100027.pdf
