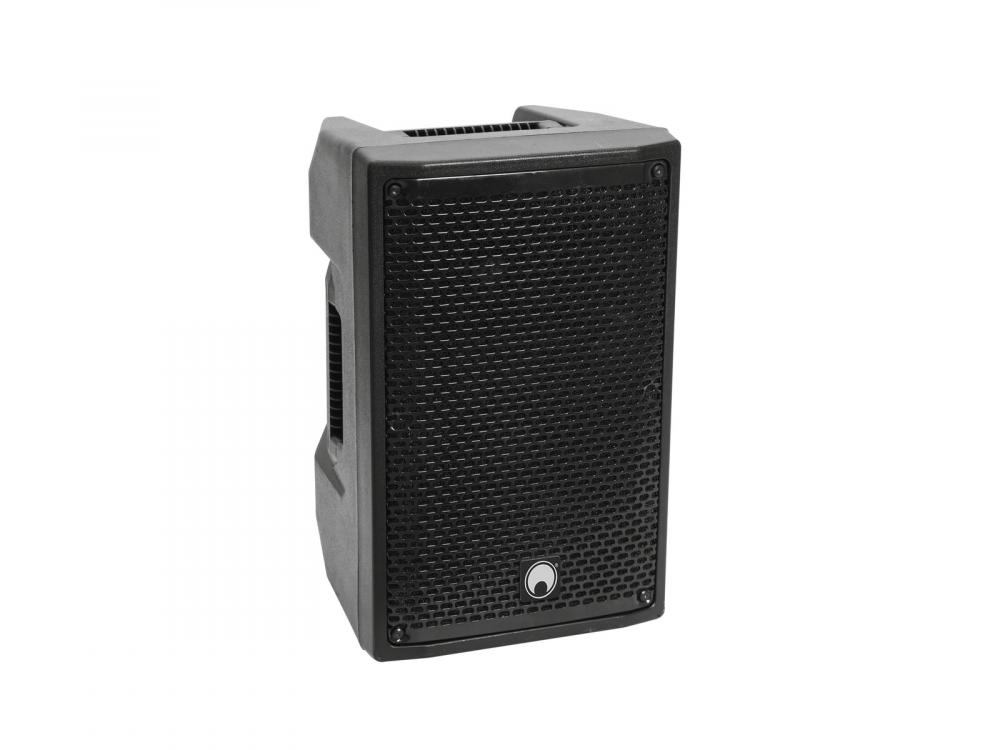

OMNITRONIC XKB-208A 2-Way Speaker, active, Bluetooth

OMNITRONIC

1
2
3

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC XKB-208A 2-Way Speaker, active, Bluetooth

Info
order code
11038793
product link
EAN
4026397628333
Product Name
OMNITRONIC XKB-208A 2-Way Speaker, active, Bluetooth
technical overview
Power supply: 230 V AC, 50 Hz
Amplifier power: 70 W RMS LF, 35 W RMS HF
LF speaker: 20 cm bass/mids (8") with 38 mm voice coil
HF speaker: 25 mm compression driver (1")
Input mic/line: combination XLR/6.3 mm jack, bal.
Input line: stereo RCA
Output line: XLR, bal.
Sensitivity: 94 dB
Weight: 6,9 kg
Size of woofer: (8") ca. 20 cm
Number of bass-woofer: 1 Pc/Pcs
Rated power: 70 W RMS
Program power: 140 W
Frequency range: 65 - 20000 Hz
Height: 43 cm
Depth: 27 cm
Width: 26 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 110-240 V AC, 50/60 Hz
main features
Active speaker with 8" woofer, 1" driver, LF: 70 W RMS, HF: 35 W RMS
-Class D biamp amplifier (LF 70 W, HF 35 W)
-Integrated Bluetooth audio streaming for your smartphones and tablets
-2-way bassreflex enclosure with 20 cm woofer and 2.5 cm driver

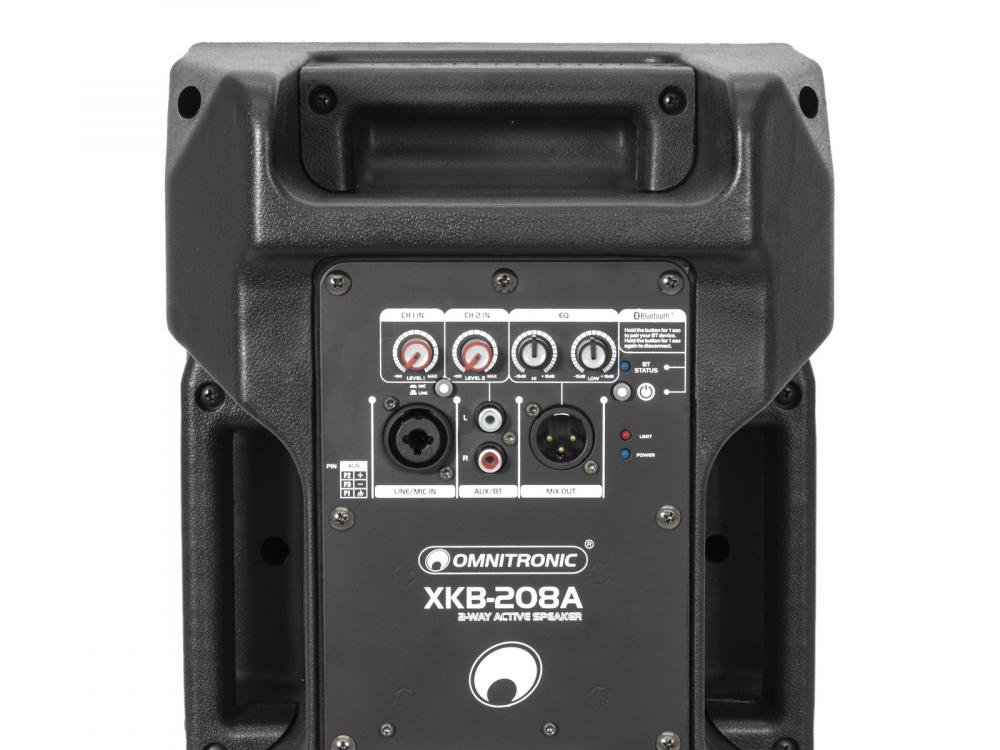

-1 mic/line input (XLR/jack) with level control
-1 line input (RCA) with level control
-Master control with 2-band EQ, limit and power LED
-Parallel XLR output for linking further active speaker systems
-Limiter for overload protection
-Stable plastic housing with protective grille and handles

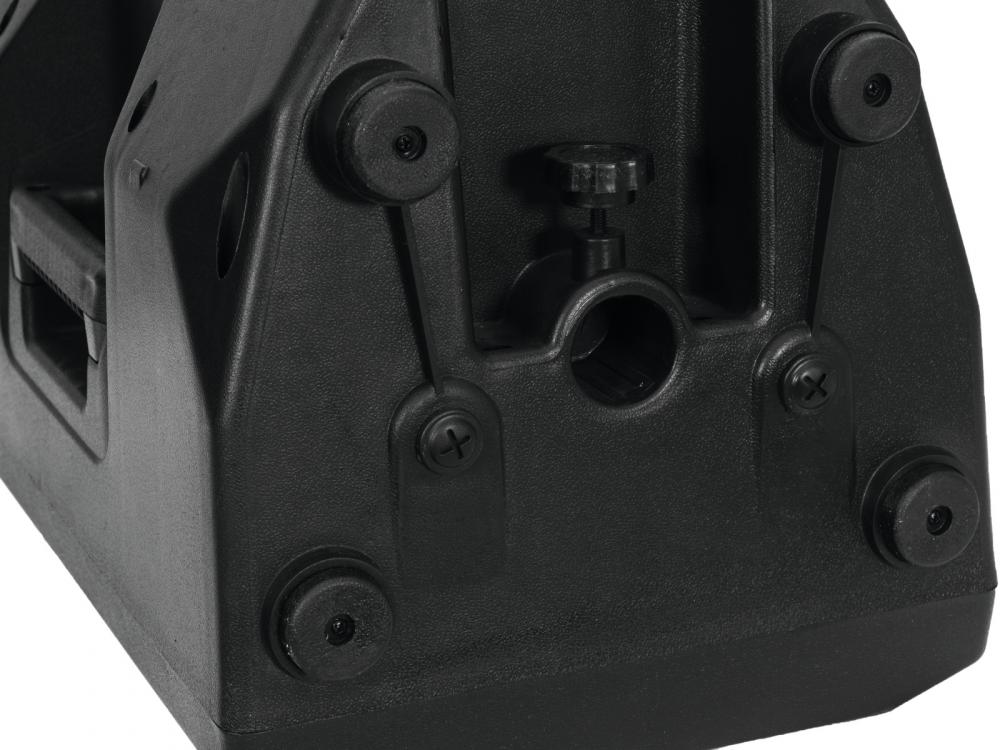

-36 mm flange for stand installation
-Applications: standing, as floor monitor, on a speaker stand or wall holder
-Master equalizer: 1 x 2 band tone control
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Audio
Frequency response, from
65 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
70.00 W
AC Volts, min
110 V
AC Volts, max
240 V
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
Mechanical
weight
6.90 kg
width
260.00 mm
height
430.00 mm
length
270.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00113870.pdf
