OMNITRONIC XKB-215A 2-Way Speaker, active, DSP

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC XKB-215A 2-Way Speaker, active, DSP

Info
order code
11038796
product link
EAN
4026397606492
Product Name

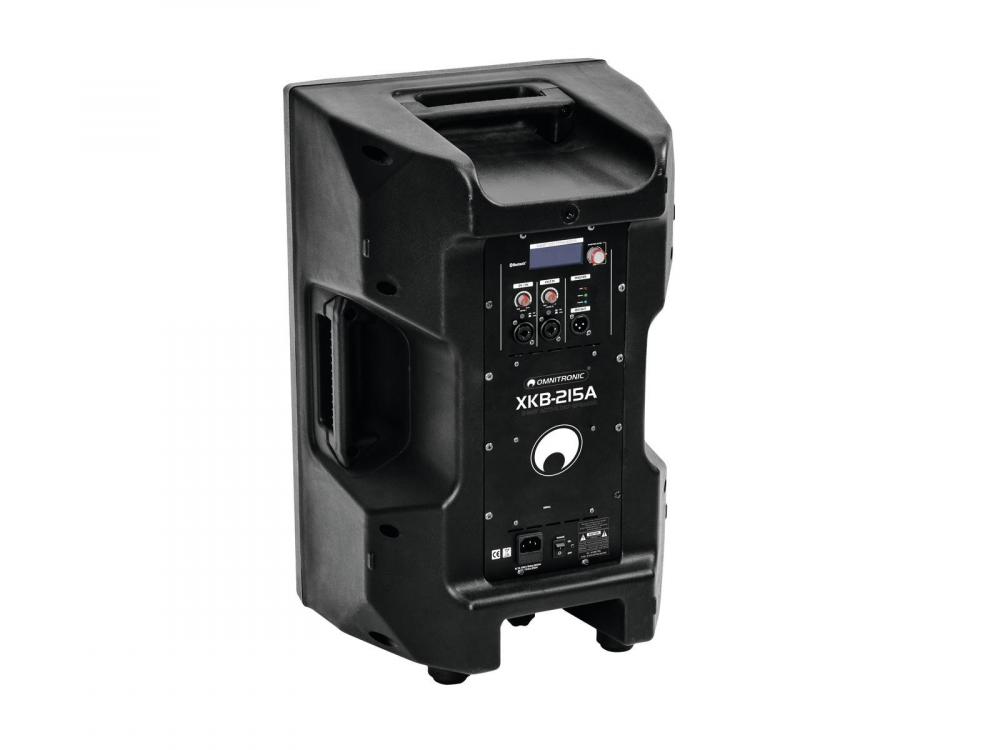

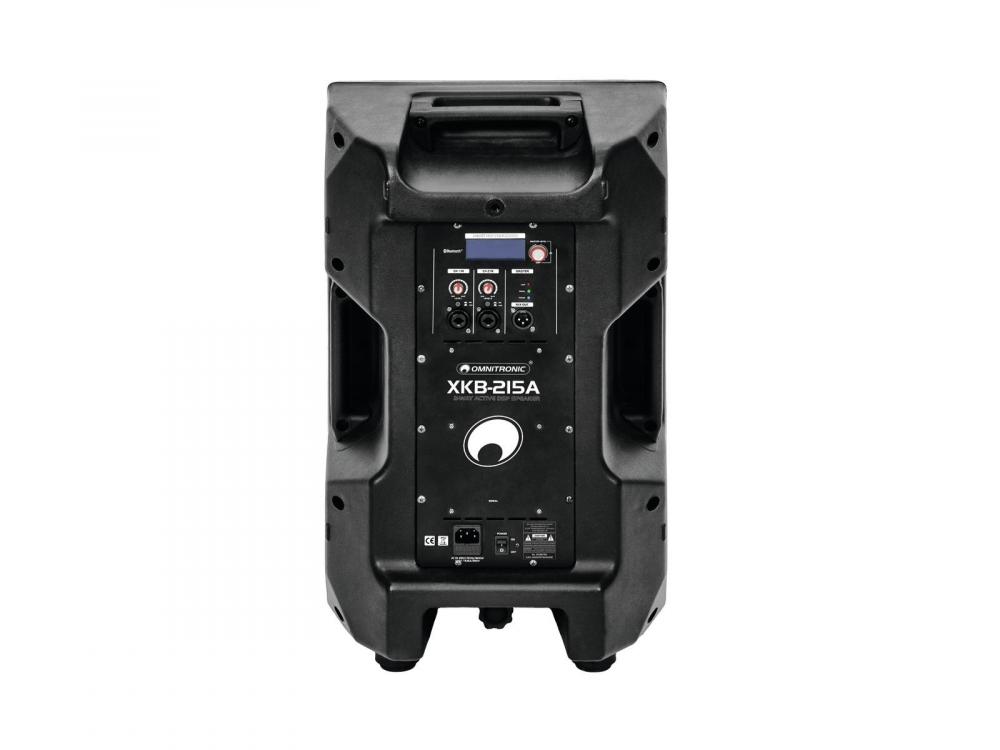

OMNITRONIC XKB-215A 2-Way Speaker, active, DSP
technical overview
Power supply: 230 V AC, 50 Hz
Amplifier power: 300 W RMS LF, 60 W RMS HF
LF speaker: 38 cm bass/mids (15") with 76 mm voice coil
HF speaker: 40 mm driver (1.75")
Inputs mic/line: combination XLR/6.3 mm jack, bal.
Parallel output: XLR, bal.
Sensitivity: 96 dB
Weight: 19,65 kg
Size of woofer: (15") ca. 38 cm
Number of bass-woofer: 1 Pc/Pcs
Rated power: 300 W RMS
Program power: 600 W
Frequency range: 50 - 20000 Hz
Height: 70 cm
Depth: 45 cm
Width: 37 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 110-240 V AC, 50/60 Hz
main features
Active speaker with 12" woofer, 1,75" driver, LF: 300 W RMS, HF: 60 W RMS
-Active 15/2 full range system for mobile live and DJ applications
-DSP-controlled biamp amplifier (LF class D, HF class A/B)
-Application presets for quick sound contouring:
-- LIVE (linear adjustment)
-- MUSIC (slight low and high frequency boost)
-- SPEECH (optimized speech intelligibility)
-- DJ (increased presence and bass)
-- TRIPOD (for stand mounting)
-- MONITOR (for use as a floor monitor)
-- WALL (for wall mounting)

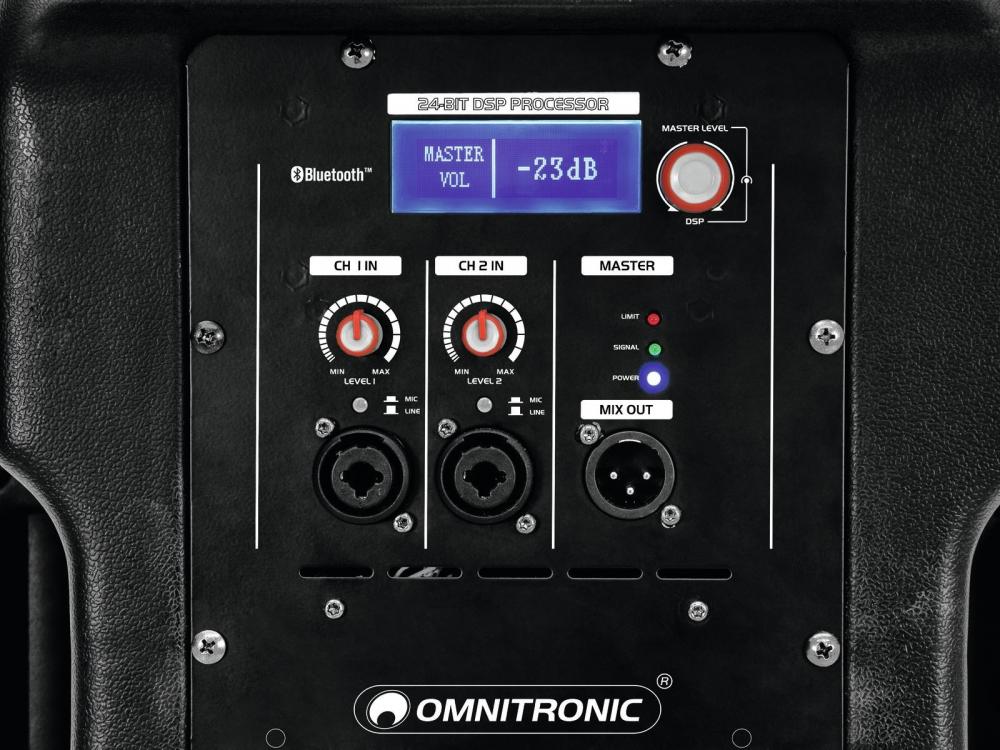

-24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
-Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
-2-way bassreflex enclosure with 38 cm woofer and 4 cm titanium driver
-Alphanumeric LCD with blue backlight
-2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
-Parallel XLR output for linking further active speaker systems
-Limiter for overload protection
-Master volume/DSP push control
-Power, signal and limit LED
-Stable plastic housing with protective grille and handles
-36 mm flange for stand installation
-Applications: standing, as floor monitor, on a speaker stand or wall holder
-Master equalizer: 1 x 3 band tone control
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Audio
Frequency response, from
50 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
300.00 W
AC Volts, min
110 V
AC Volts, max
240 V
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
Mechanical
weight
19.65 kg
width
370.00 mm
height
700.00 mm
length
450.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00113870.pdf
