OMNITRONIC AZX-208 2-Way Top 100W

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC AZX-208 2-Way Top 100W

Info
order code
11039020
product link
EAN
4026397638769
Product Name
OMNITRONIC AZX-208 2-Way Top 100W
technical overview
Rated power: 100 W RMS
Program power: 200 W
LF speaker: 20 cm bass/mids (8") with 38 mm voice coil
HF speaker: 2.5 cm compression driver (1")
Connection: 2 x Speaker
Sensititvity: 91 dB
Frequency range: 65 - 18000 Hz
Number of bass-woofer: 1 Pc/Pcs
Size of woofer: (8") ca. 20 cm
Impedance: 8 Ohm
Weight: 9,35 kg
Width: 31,5 cm
Depth: 31 cm
Height: 49 cm
Material: MDF (Medium-density fibreboard)
main features
Passive speaker with 8" woofer, 1" driver and 100 W RMS
-2-way bass-reflex system with 20 cm woofer and 2.5 cm titan driver

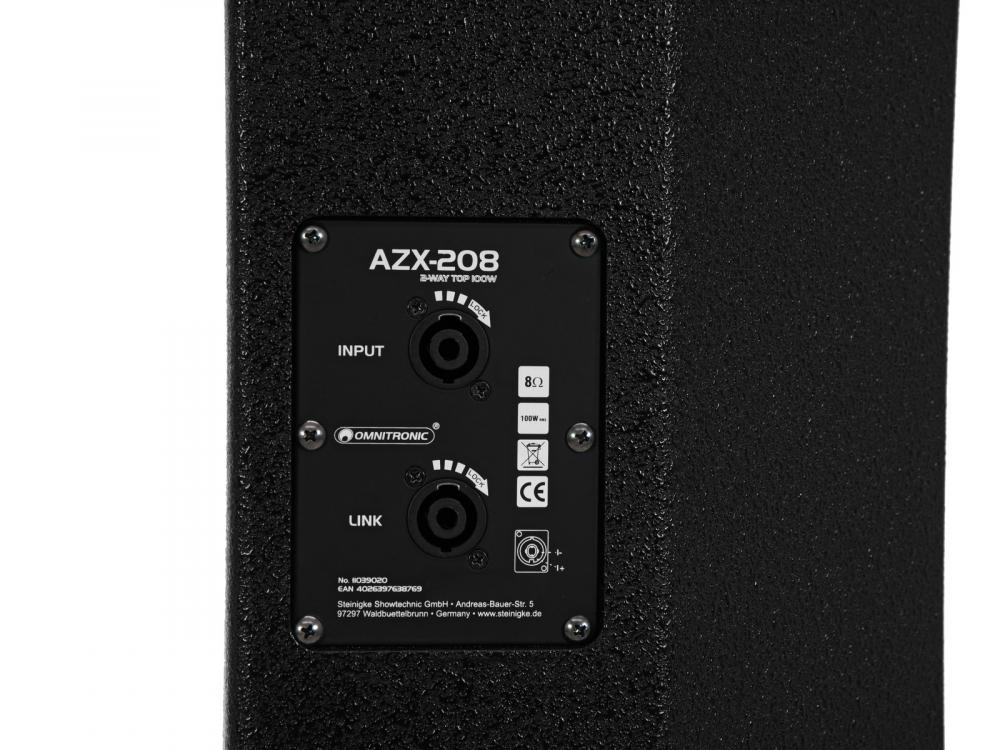

-Speaker connections
-Stable MDF housing with protective grille and recessed handle
-Dual flange with 0° and 5° tilt angle enables flexible positioning
-M10 threaded inserts for suspended installation
-Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
Audio
Frequency response, from
65 Hz
Frequency response, to
18000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
100.00 W
Mechanical
weight
9.35 kg
width
315.00 mm
height
490.00 mm
length
310.00 mm
enclosure material
MDF (Medium-density fibreboard)

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00119257.pdf
