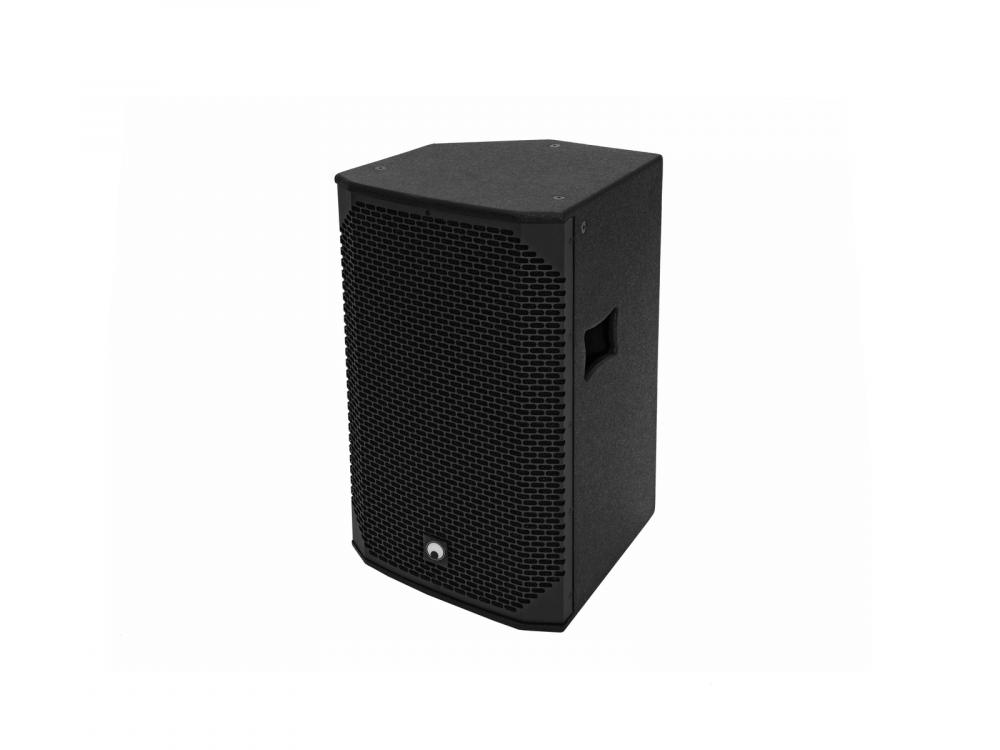

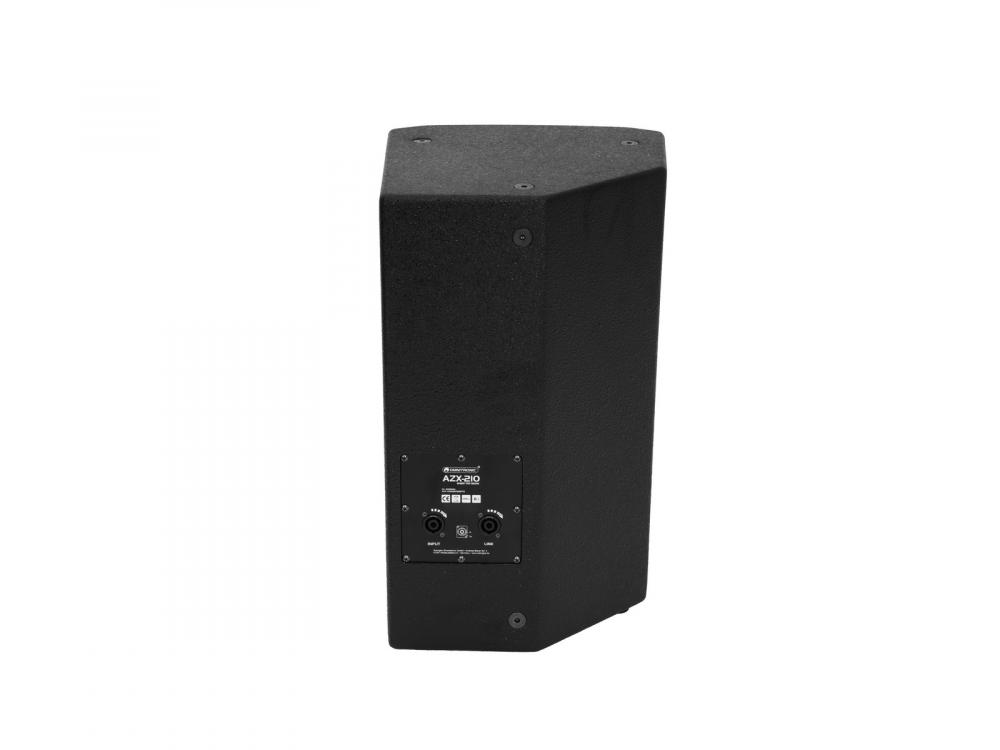

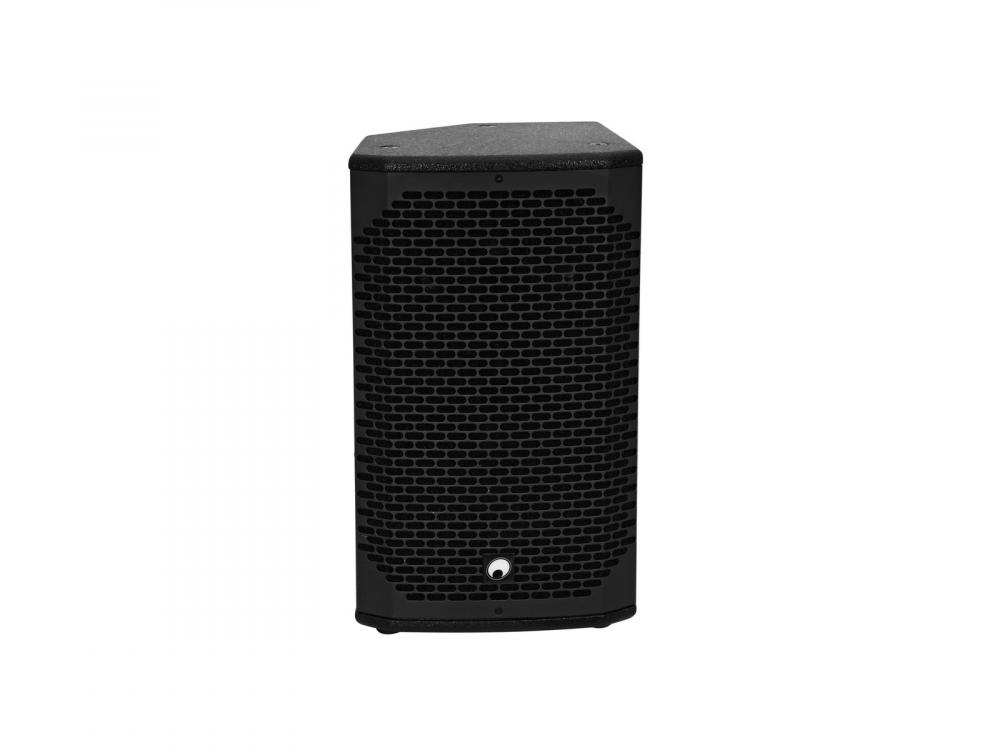

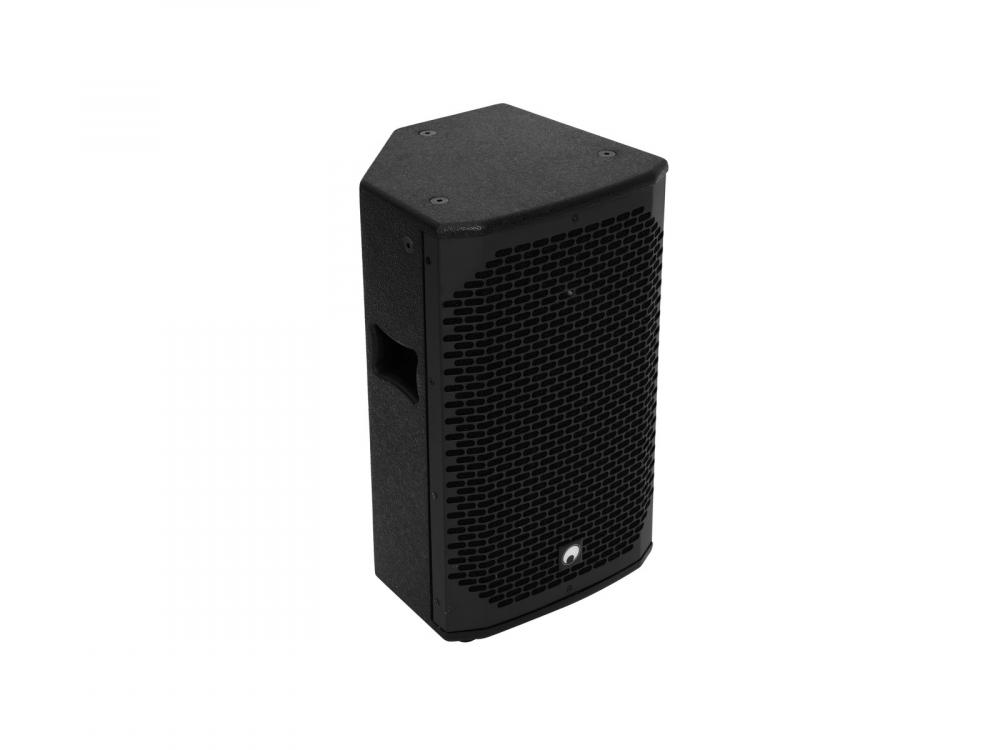

OMNITRONIC AZX-210 2-Way Top 200W

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC AZX-210 2-Way Top 200W

Info
order code
11039024
product link
EAN
4026397638776
Product Name
OMNITRONIC AZX-210 2-Way Top 200W
technical overview
Rated power: 200 W RMS
Program power: 400 W
LF speaker: 25 cm bass/mids (10") with 50 mm voice coil
HF speaker: 2.5 cm compression driver (1")
Connection: 2 x Speaker
Sensititvity: 93 dB
Frequency range: 60 - 18000 Hz
Number of bass-woofer: 1 Pc/Pcs
Size of woofer: (10") ca. 25 cm
Impedance: 8 Ohm
Weight: 13,10 kg
Width: 37 cm
Depth: 36 cm
Height: 58,5 cm
Material: MDF (Medium-density fibreboard)
main features
Passive speaker with 10" woofer, 1" driver and 200 W RMS
-2-way bass-reflex system with 25 cm woofer and 2.5 cm titan driver

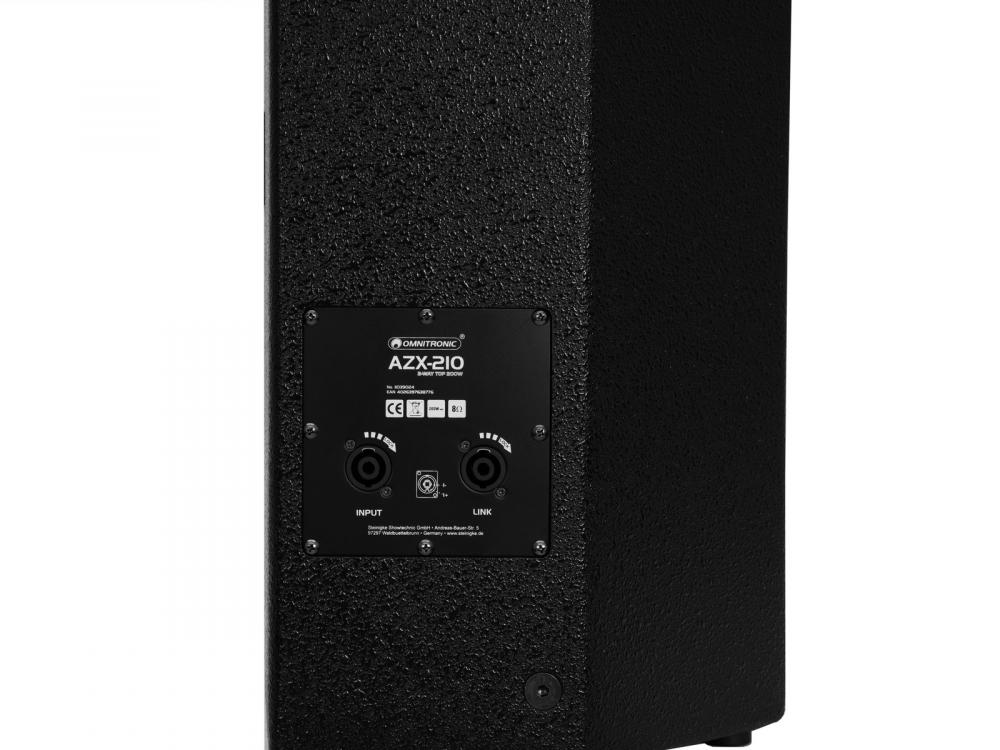

-Speaker connections
-Stable MDF housing with protective grille and handles
-Dual flange with 0° and 5° tilt angle enables flexible positioning
-M10 threaded inserts for suspended installation
-Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
Audio
Frequency response, from
60 Hz
Frequency response, to
18000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
200.00 W
Mechanical
weight
13.10 kg
width
370.00 mm
height
585.00 mm
length
360.00 mm
enclosure material
MDF (Medium-density fibreboard)

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00119257.pdf
