Info | |
---|---|
order code |
11039034
|
product link | |
EAN |
4026397638875
|
Product Name |

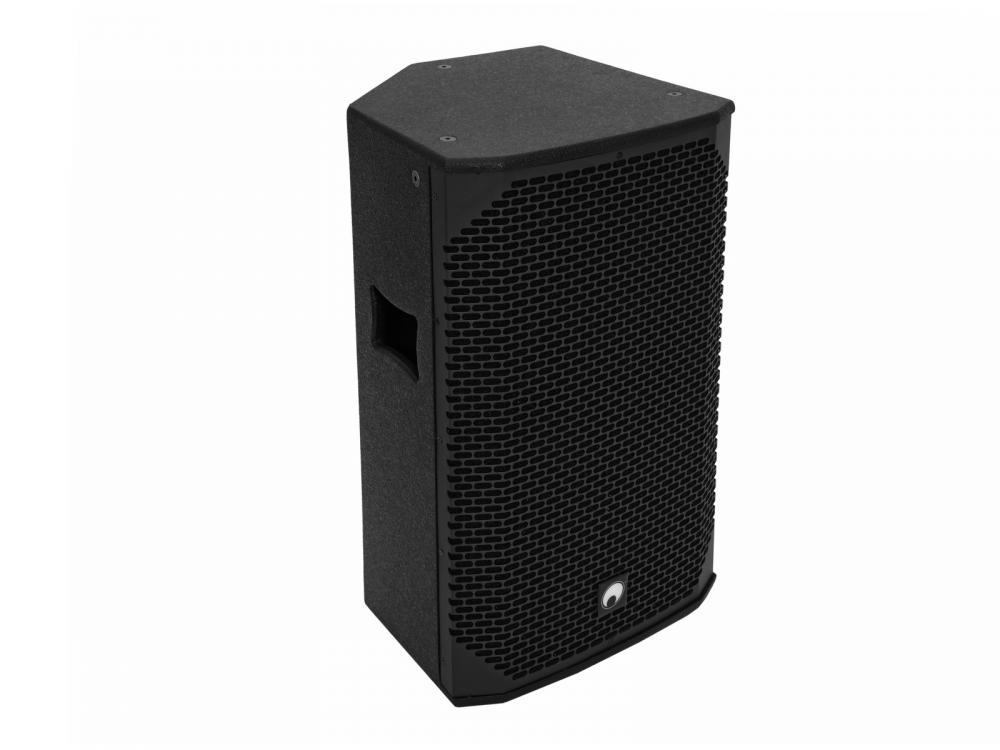

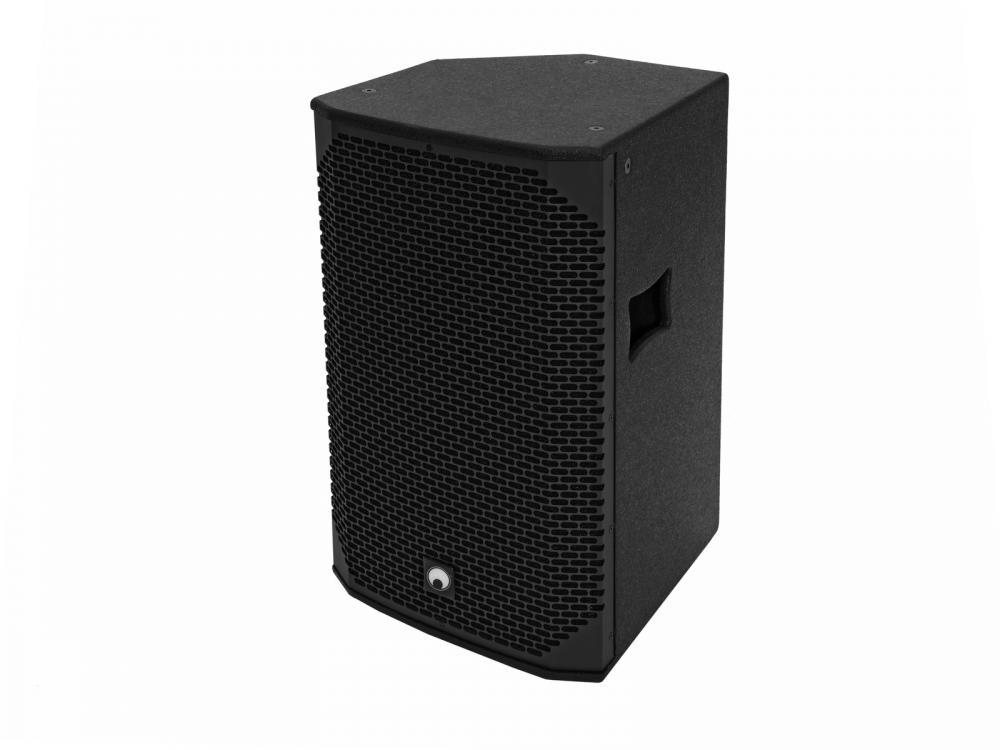

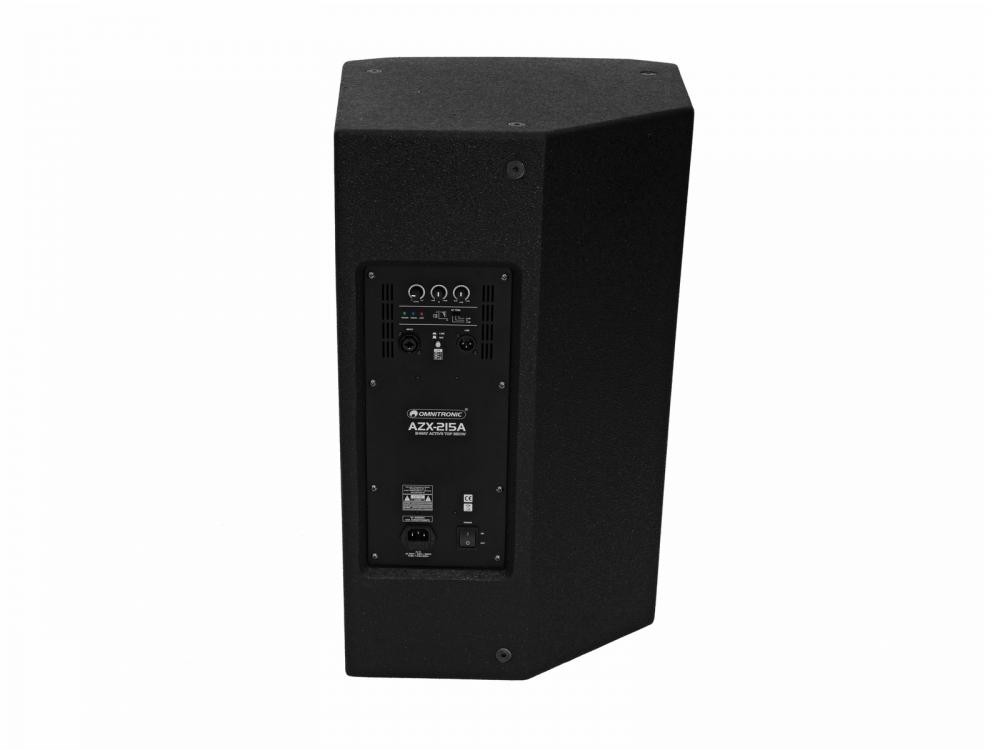

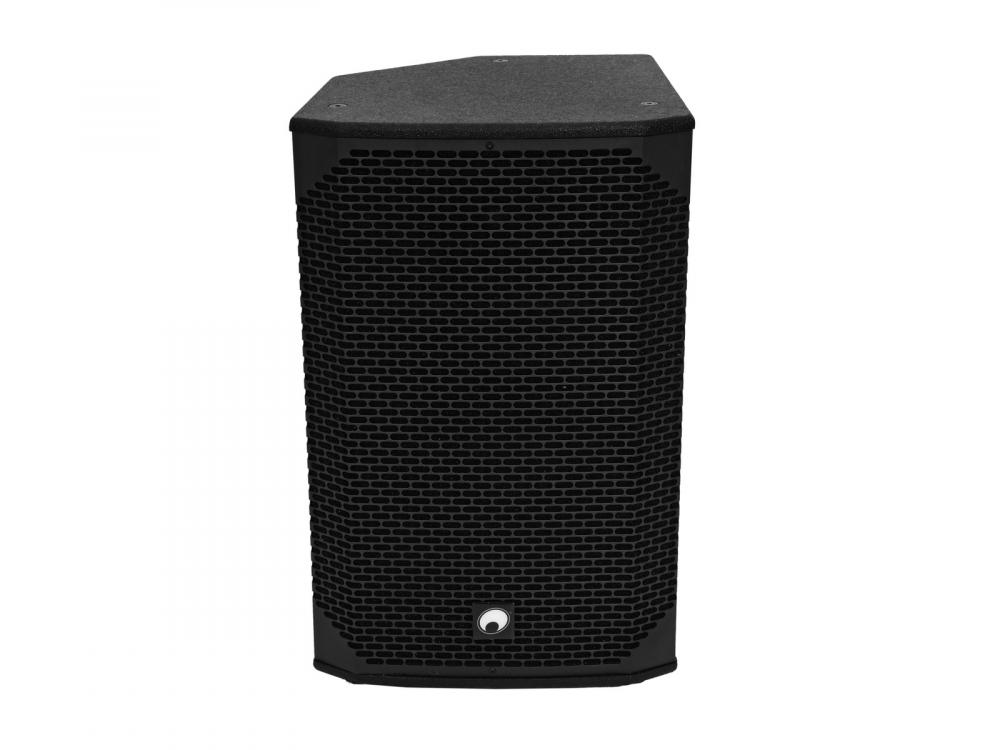

OMNITRONIC AZX-215A 2-way top active 350W
|
technical overview |
Power supply: 230 V AC, 50 Hz Power consumption: 650 W Amplifier power: 300 W RMS LF, 50 W RMS HF LF speaker: 38 cm bass/mids (15") with 76 mm voice coil HF speaker: 4,5 cm compression driver (1.75") Input mic/line: combination XLR/6.3 mm jack, bal. Output line: XLR, bal. Frequency range: 50 - 20000 Hz Number of bass-woofer: 1 Pc/Pcs Size of woofer: (15") ca. 38 cm Weight: 25,45 kg Width: 48,5 cm Depth: 48 cm Height: 75 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Material: MDF (Medium-density fibreboard) Power supply: 230 V AC, 50 Hz |
main features |

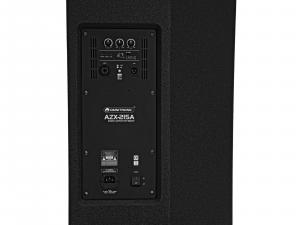

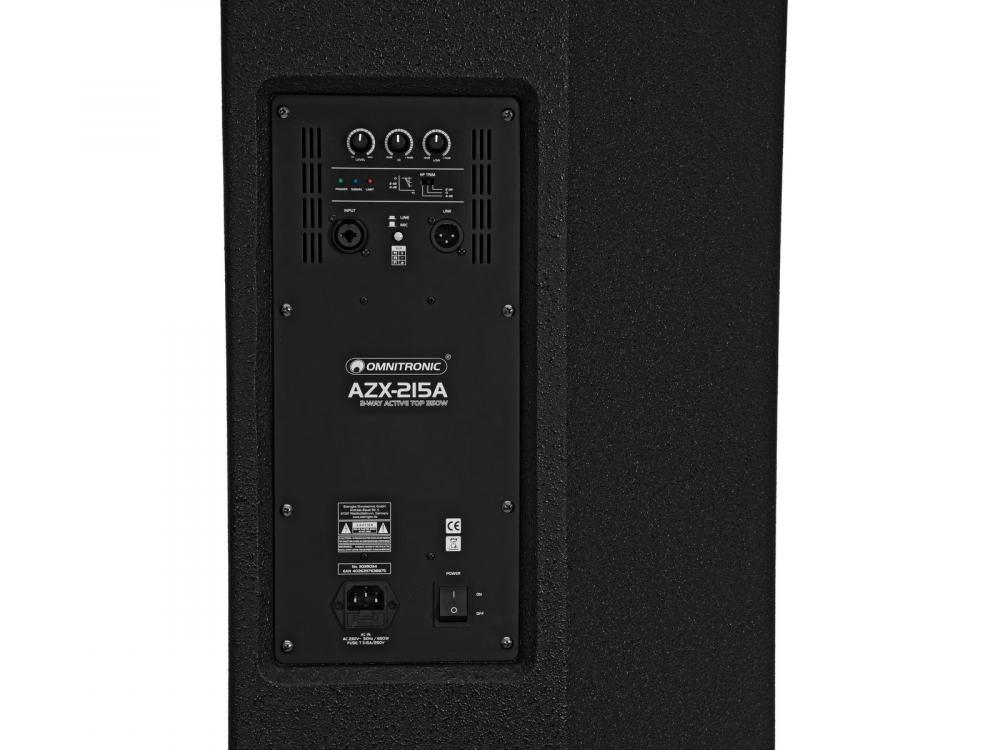

Active speaker with 15" woofer, 1.75" titanium driver, LF 300 W RMS, HF 50 W RMS -2-way bassreflex enclosure with 38 cm woofer and 4.5 cm titanium driver -Class D biamp amplifier (LF 400 W, HF 50 W) -Balanced signal input XLR/6.3 mm jack, switchable mic/line -XLR output for linking further active speaker systems -Master control with 2-band EQ -HF adjustment -4 dB, -2 dB, 0 dB -Limiter for overload protection -Limit, signal and power LED -Housing made of 15 mm MDF -Scratch-resistant lacquer surface -Carrying handles -Impact-resistant steel grille with acoustic foam -M10 threaded inserts for suspended installation -Dual flange with 0° and 5° tilt angle enables flexible positioning -Applications: standing, as monitor, on a subwoofer or speaker stand, suspended -Master equalizer: 1 x 2 band tone control -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
Frequency response, from |
50 Hz
|
Frequency response, to |
20000 Hz
|
Electrical | |
power consumption watt, max |
650.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
25.45 kg
|
width |
485.00 mm
|
height |
750.00 mm
|
length |
480.00 mm
|
enclosure material |
MDF (Medium-density fibreboard)
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
