Info | |
---|---|
order code |
11039437
|
product link | |
EAN |
4026397552003
|
Product Name |

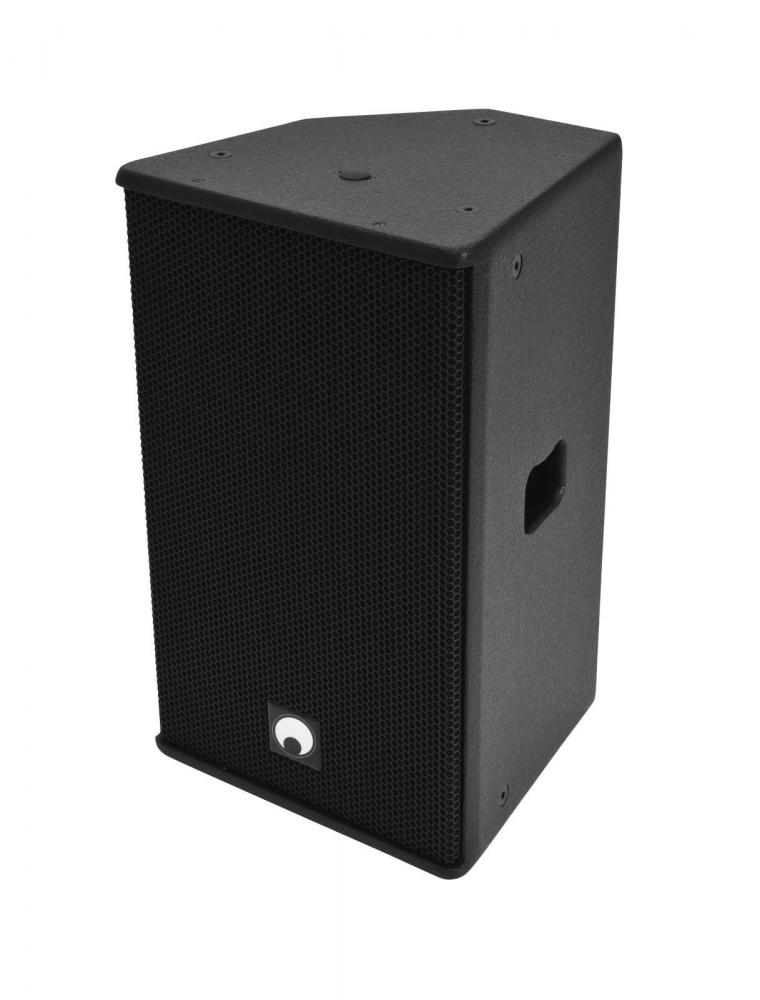

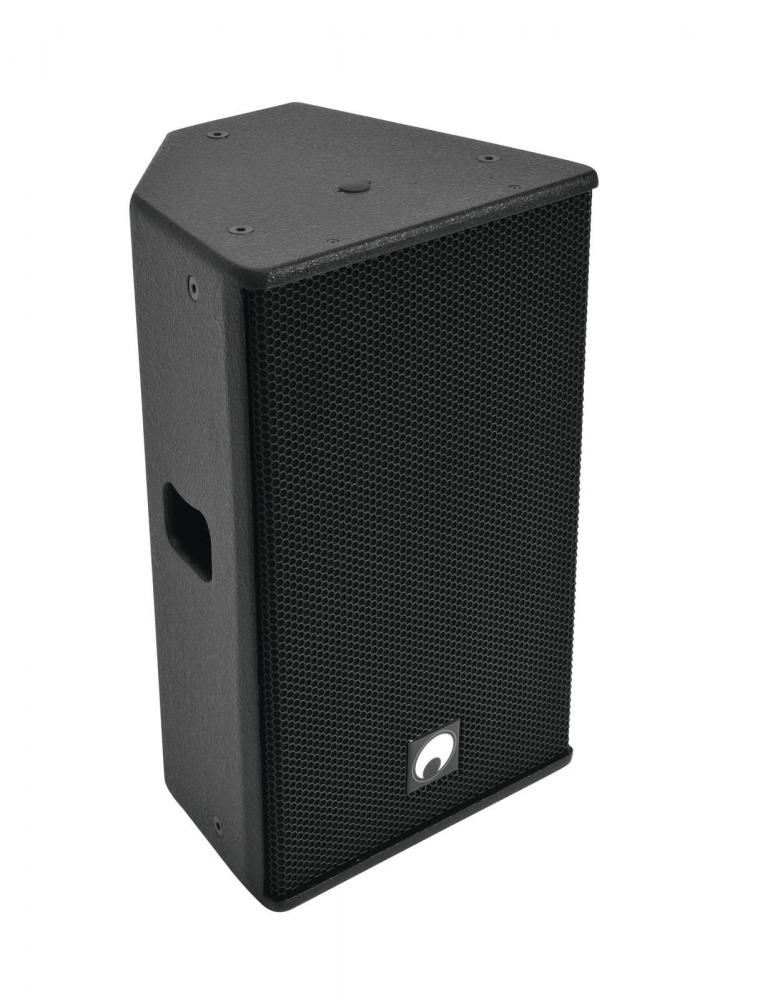

OMNITRONIC PAS-212+ 2-Way Top
|
technical overview |
Components: 30 cm woofer (12"), 3,5 cm horn (1,4") Connection: 2 Speaker sockets Sensitivity: 97 dB Maximum SPL: 124.5 dB Crossover frequency: 2200 Hz Dispersion angle: 50-100° x 55° Flying points: 12 x M10 Weight: 18 kg Program power: 600 W Rated power: 300 W RMS Size of woofer: (12") ca. 30 cm Number of bass-woofer: 1 Pc/Pcs Frequency range: 60 - 20000 Hz Height: 58,4 cm Depth: 33,4 cm Width: 36,1 cm Impedance: 8 Ohm |
main features |
PA speaker with 12" woofer, 1.4" horn and 300 W RMS, 8 ohms -PA speaker system for medium-sized and large discotheques -Rugged full-range top speaker qualified for suspended installation -Rotatable constant directivity horn (asymmetrical) with coil-driver -Passive 2-way crossover, PTC tweeter protection -Bass-reflex system for powerful, dry bass -Balanced frequency range with high sound-pressure -Very high durability -Optimized for combination with PAS subwoofers -Scratch-resistant lacquer surface -Impact-resistant steel grille with acoustic foam -Flange for stand installation -Trapezoidal wooden housing with monitor shape -Can be used lying, standing, on a subwoofer, on a stand or suspended -Suitable for car transport -The combination of several PAS speakers allows for large PA systems |
Audio | |
Frequency response, from |
60 Hz
|
Frequency response, to |
20000 Hz
|
impedance |
8 ohm
|
Electrical | |
power consumption watt, max |
300.00 W
|
Mechanical | |
weight |
18.00 kg
|
width |
361.00 mm
|
height |
584.00 mm
|
length |
334.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
