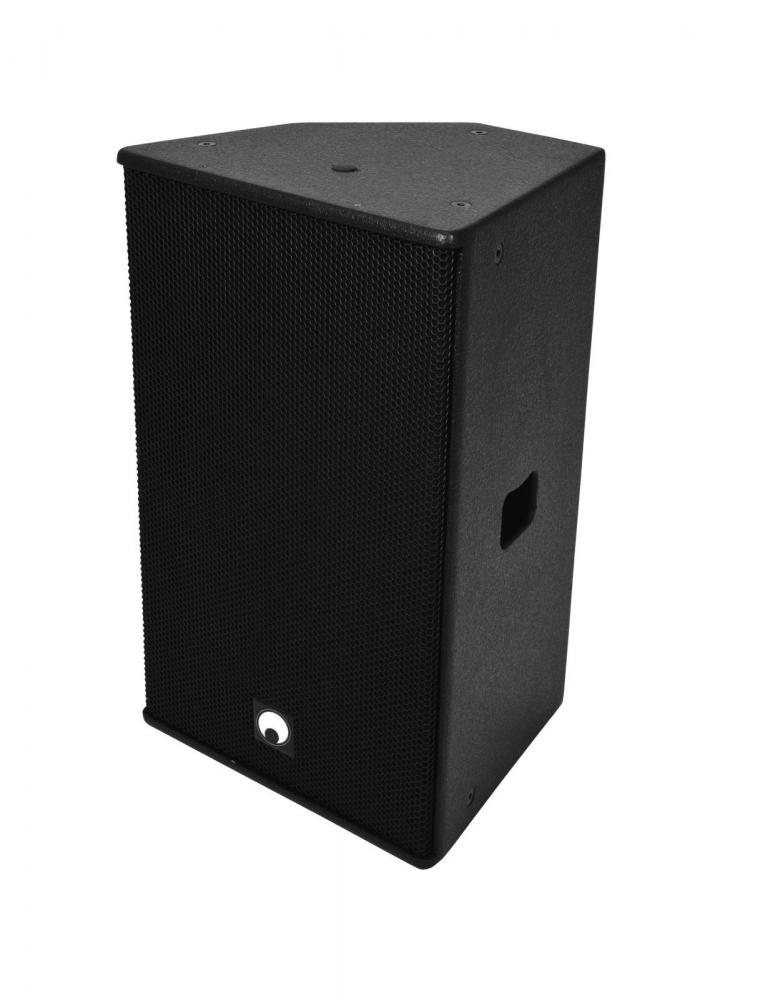

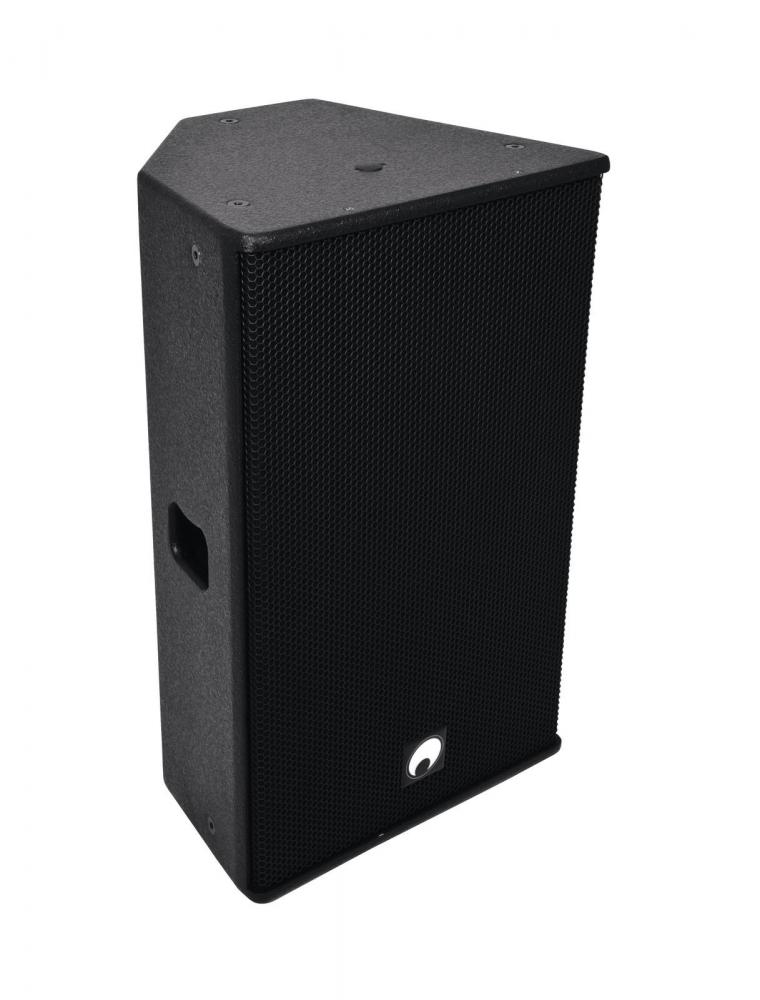

OMNITRONIC PAS-215+ 2-Way Top

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC PAS-215+ 2-Way Top

Info
order code
11039438
product link
EAN
4026397552010
Product Name
OMNITRONIC PAS-215+ 2-Way Top
technical overview
Components: 38 cm woofer (15"), 3.6 cm horn (1.4")

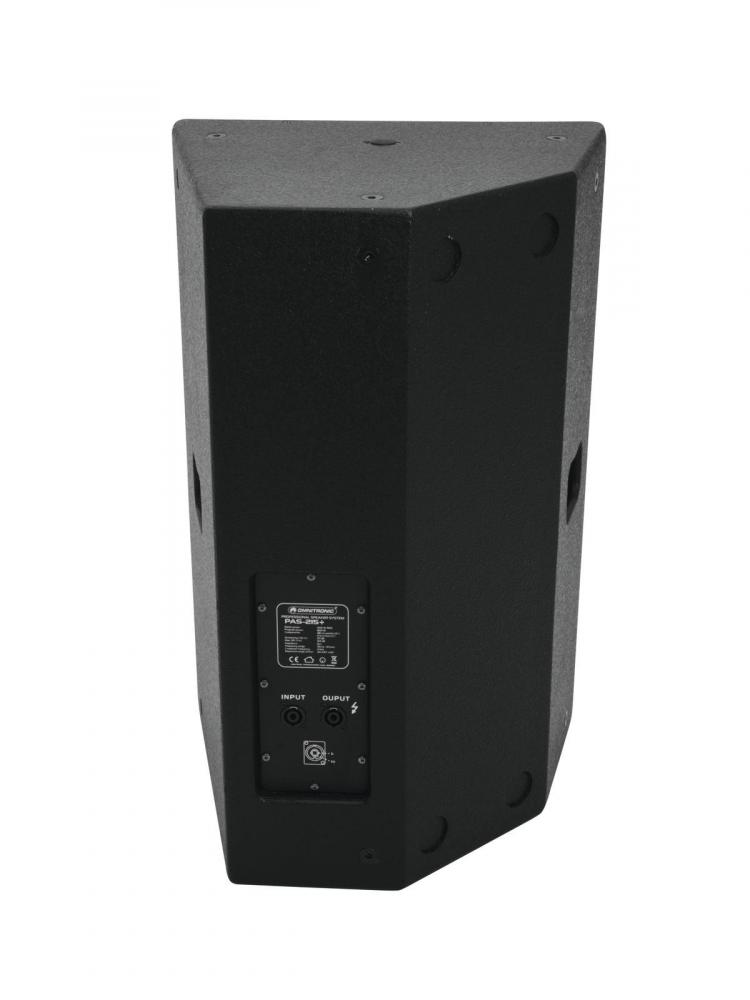

Connection: 2 Speaker sockets
Sensitivity: 97 dB
Maximum SPL: 126 dB
Crossover frequency: 2000 Hz
Dispersion angle: 50-100° x 55°
Flying points: 12 x M10
Weight: 22 kg
Program power: 800 W
Rated power: 400 W RMS
Size of woofer: (15") ca. 38 cm
Number of bass-woofer: 1 Pc/Pcs
Frequency range: 55 - 20000 Hz
Height: 68,5 cm
Depth: 37,1 cm
Width: 43,3 cm
Impedance: 8 Ohm
main features
PA speaker with 15" woofer, 1.4" horn and 400 W RMS, 8 ohms
-PA speaker system for medium-sized and large discotheques
-Rugged full-range top speaker qualified for suspended installation
-Rotatable constant directivity horn (asymmetrical) with coil-driver
-Passive 2-way crossover, PTC tweeter protection
-Bass-reflex system for powerful, dry bass
-Balanced frequency range with high sound-pressure
-Very high durability
-Optimized for combination with PAS subwoofers
-Scratch-resistant lacquer surface
-Impact-resistant steel grille with acoustic foam
-Flange for stand installation
-Trapezoidal wooden housing with monitor shape
-Can be used lying, standing, on a subwoofer, on a stand or suspended
-Suitable for car transport
-The combination of several PAS speakers allows for large PA systems
Audio
Frequency response, from
55 Hz
Frequency response, to
20000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
400.00 W
Mechanical
weight
22.00 kg
width
433.00 mm
height
685.00 mm
length
371.00 mm
