Info | |
---|---|
order code |
13106971
|
product link | |
EAN |
4026397614800
|
Product Name |

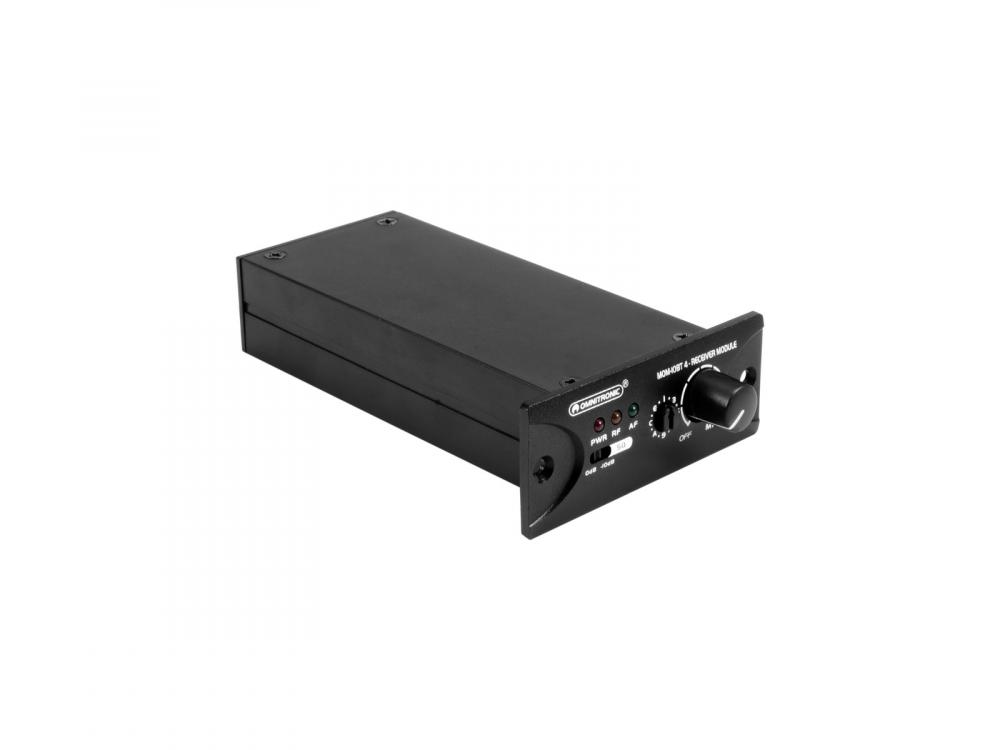

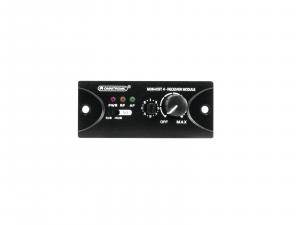

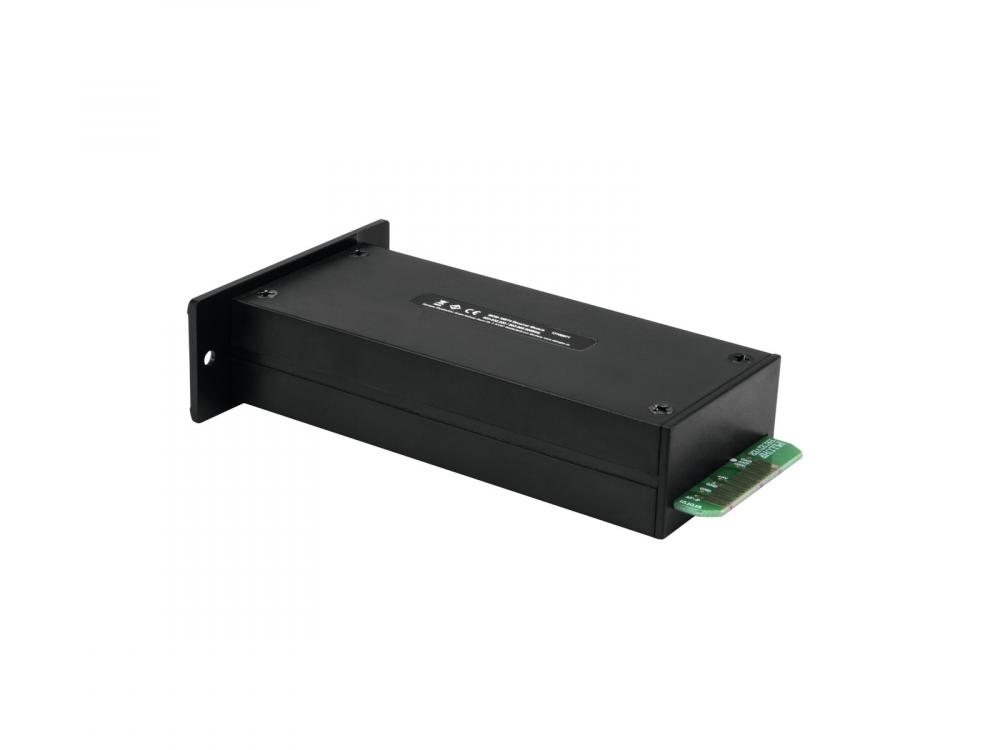

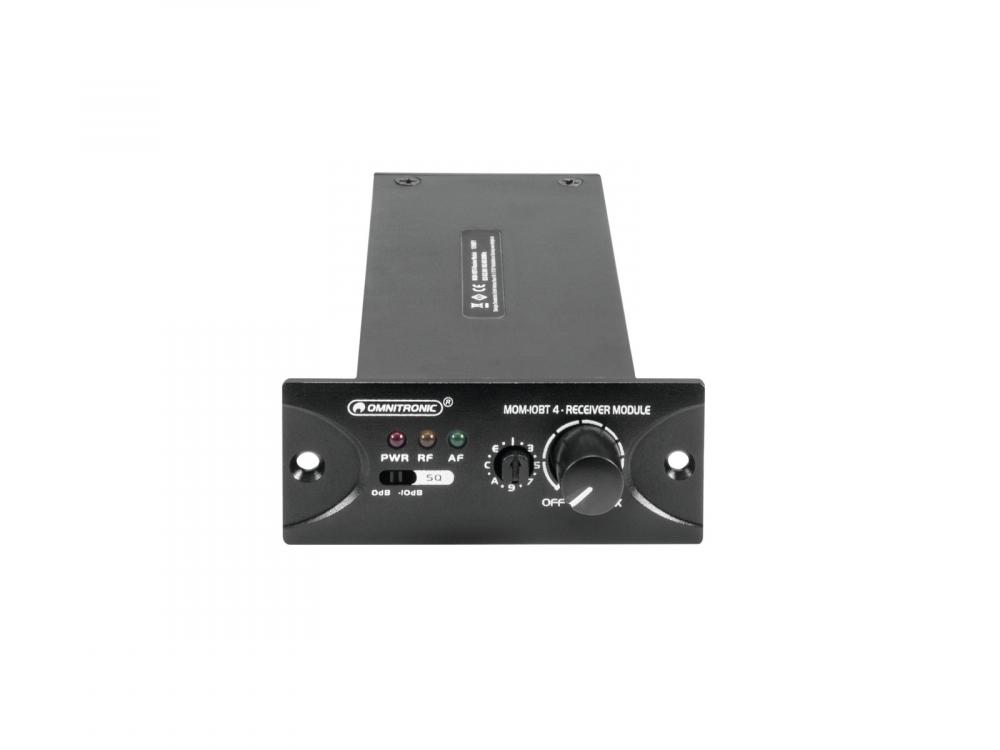

OMNITRONIC MOM-10BT4 Receiver Module
|
technical overview |
Carrier frequency: 823-832 MHz and 863-865 MHz Receiving frequencies: 16 Coverage: 30 m (with line-of-sight) Frequency stability: 10 ppm Sensitivity: -95 dB S/N ratio: >80 dB Selectivity: >80 dB T.H.D.: Power supply: DC 12 V/150 mA Dimensions (L x W x H): 139 x 71 x 30 mm Weight: 0,090 kg Frequency range: 50 - 15000 Hz Height: 3 cm Frequency band: UHF 823 - 832 MHz Depth: 13,9 cm Frequency band: UHF 863 - 865 MHz Width: 7,1 cm |
main features |

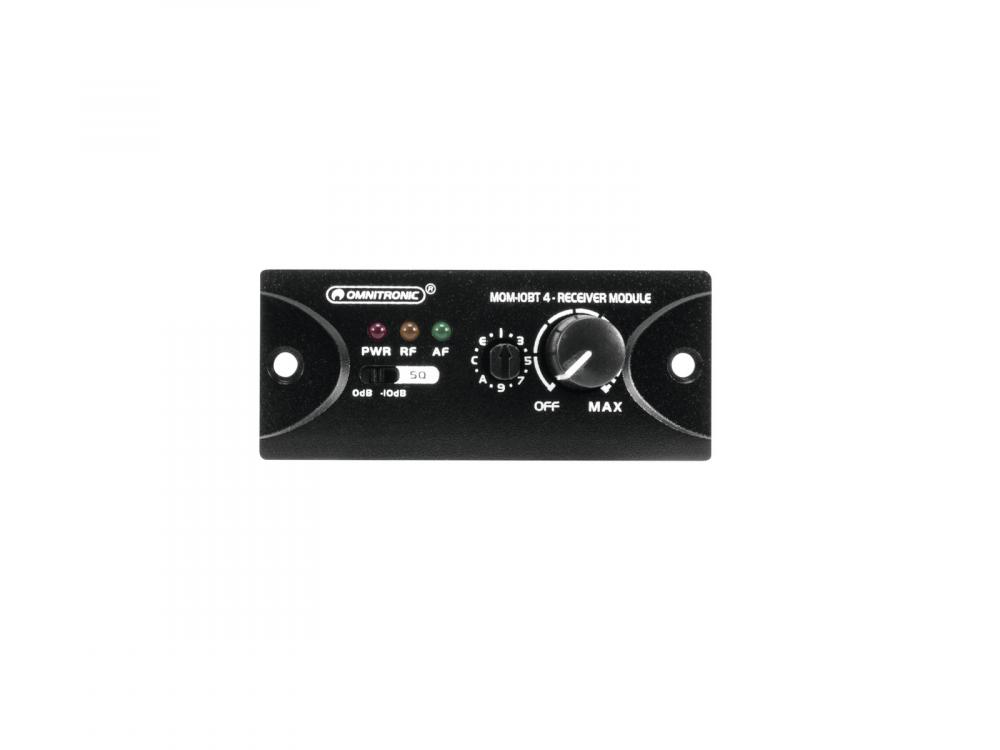

Receiving module for UHF frequencies (microphone + audio link signal) -For retrofitting the MOM-10BT4 modular PA system -Up to 4 receiving modules can be retrofitted -16 selectable UHF frequencies (823-832 and 863-865 MHz) -Volume control -LEDs for power, carrier and audio signals -License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis) |
Audio | |
Frequency response, from |
50 Hz
|
Frequency response, to |
15000 Hz
|
Signal to Noise Ratio |
80.00 dB
|
Mechanical | |
weight |
0.09 kg
|
width |
71.00 mm
|
height |
30.00 mm
|
length |
139.00 mm
|
