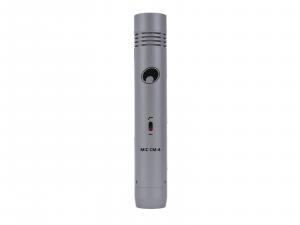

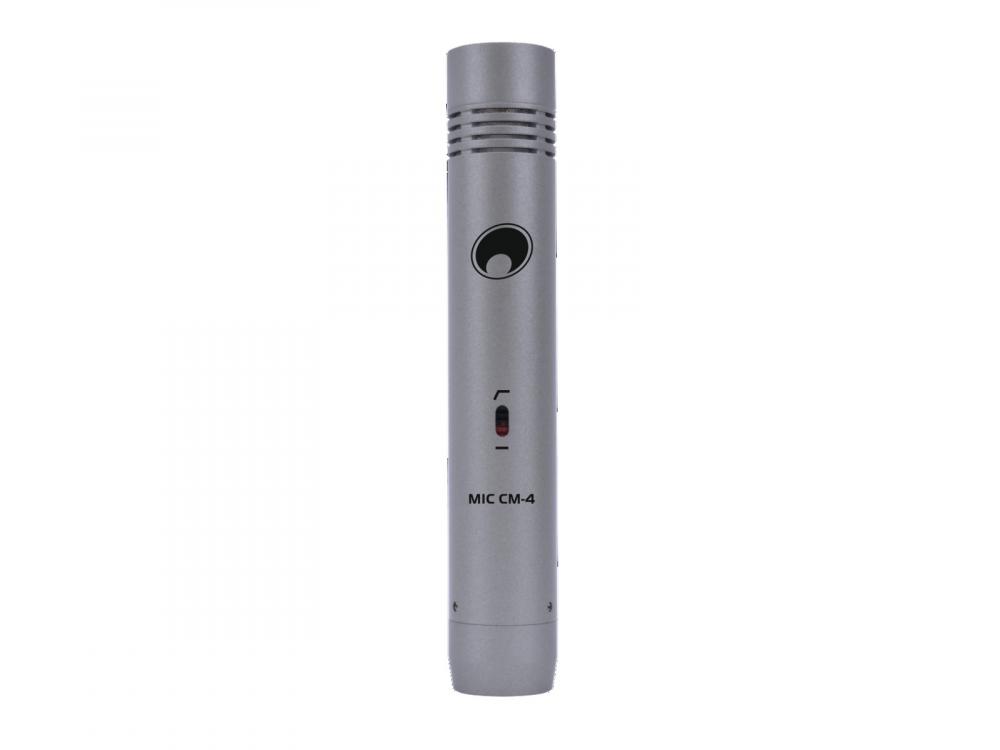

OMNITRONIC MIC CM-4 Condenser Microphone

OMNITRONIC

1
2

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC MIC CM-4 Condenser Microphone

Info
order code
13030907
product link
EAN
4026397535426
Product Name
OMNITRONIC MIC CM-4 Condenser Microphone
technical overview
Type: Condenser
Polar pattern: Cardioid
Sensitivity: -36 dB (±2 dB)
Output impedance: 100 ohms
Load impedance: 1000 ohms
Self noise: 20 dBA
Maximum SPL: 130 dB
S/N ratio: 74 dB
Low freq. attenuation: 100 Hz/oct 12 dB
Phantom power: 48 V DC
Connector: 3-pin XLR
Phantom power: 48 V DC
Weight: 0,175 kg
Polar pattern: Unidirectional
Frequency range: 30 - 18000 Hz
main features
Professional condenser microphone with cardioid pattern
-Very high frequency spectrum and clear sound
-Ideal for recording studios, acoustic instruments, strings, horns, orchestras, e-guitars, drum overheads and choral groups
-Operation via external phantom power (48 V DC current)
-Stand holder with 1 cm (3/8") and 1.5 cm (5/8") thread
-Switchable high pass filter
-Robust diecast body, applicable for touring
-Delivery includes microphone holder, windscreen and transport bag
-Mute function: No
-Polar pattern: Unidirectional
Audio
Frequency response, from
30 Hz
Frequency response, to
18000 Hz
Signal to Noise Ratio
74.00 dB
Output impedance
100 ohm
Mechanical
weight
0.18 kg
