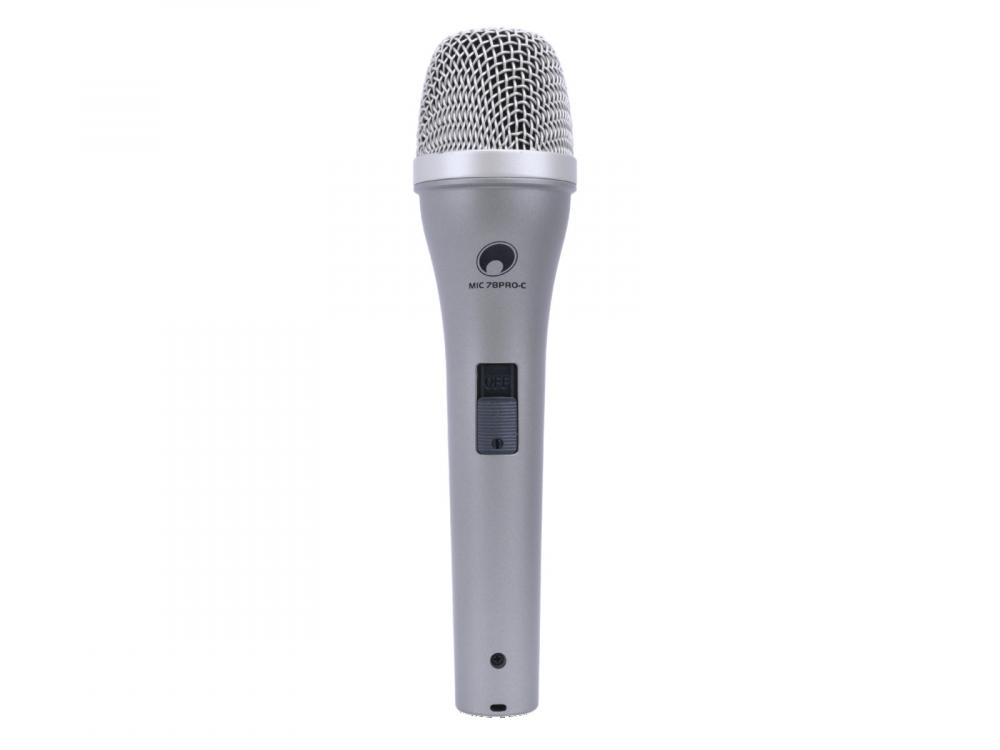

OMNITRONIC MIC 78PRO-C Condenser Microphone

OMNITRONIC

1
2

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC MIC 78PRO-C Condenser Microphone

Info
order code
13030909
product link
EAN
4026397535440
Product Name
OMNITRONIC MIC 78PRO-C Condenser Microphone
technical overview
Type: Condenser

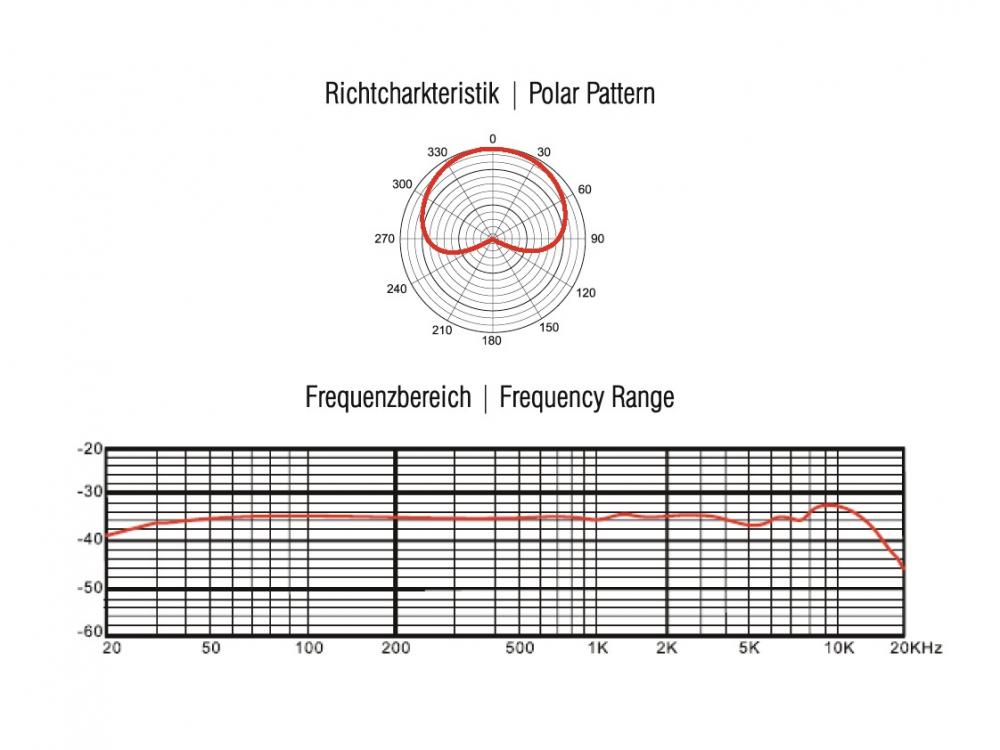

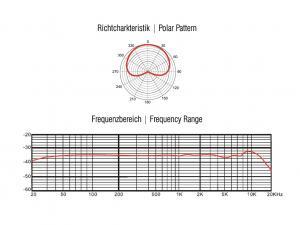

Polar pattern: Cardioid
Sensitivity: -36 dB (±2 dB)
Output impedance: 250 ohms
Load impedance: 1000 ohms
Self noise: 18 dBA
Maximum SPL: 135 dB
S/N ratio: 76 dB
Power supply: 48 V DC phantom power or 1.5 V battery (type AAA)
Connector: 3-pin XLR
Weight: 0,33 kg
Polar pattern: Unidirectional
Phantom power: 48 V DC; Or intern battery 1.5 V V DC
Frequency range: 30 - 18000 Hz
main features
Professional vocal condenser microphone with cardioid characteristic
-Vocal microphone with condenser technology
-High dynamic spectrum for nuanced vocal reproduction
-Operation via external phantom power (48 V DC current) or internal 1.5 V battery (not included)
-Low-wear reed switch, silent during operation
-Desktop stand and holder with 1 cm (3/8") and 1.5 cm (5/8") thread
-Robust zinc diecast body, applicable for touring
-Delivery includes microphone holder, desktop stand, XLR cable and windscreen
-Mute function: On/off/mute switch
-Polar pattern: Unidirectional
Audio
Frequency response, from
30 Hz
Frequency response, to
18000 Hz
Signal to Noise Ratio
76.00 dB
Output impedance
250 ohm
Electrical
DC Volts, min
48 V
DC Volts, max
48 V
Mechanical
weight
0.33 kg
