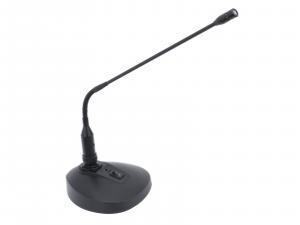

OMNITRONIC MIC SHC-1 Gooseneck Microphone

OMNITRONIC

1
2

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC MIC SHC-1 Gooseneck Microphone

Info
order code
13030915
product link
EAN
4026397535501
Product Name
OMNITRONIC MIC SHC-1 Gooseneck Microphone
technical overview
Type: Condenser (back-electret)

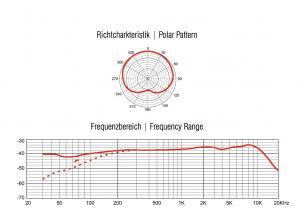

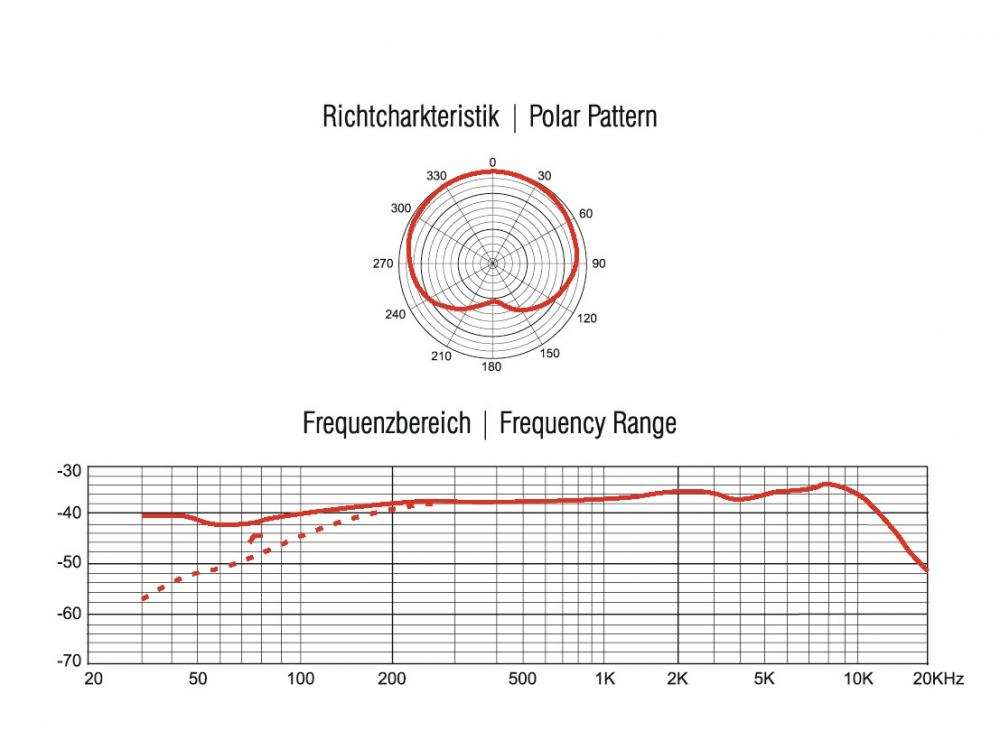

Polar pattern: Cardioid
Sensitivity: -39 dB (±3 dB)
Output impedance: 250 ohms
Power supply: 48 V DC phantom power or 2 x 1.5 V battery (type AA)
Connector: 3-pin XLR
Weight: 1 kg
Polar pattern: Unidirectional
Phantom power: 48 V DC; Or intern battery 1.5 V V DC
Frequency range: 50 - 16000 Hz
main features
Electret gooseneck microphone
-Conference microphone with condenser technology
-For conference systems, speaker desks or as PA microphone
-Optimum speech intelligibility even at greater distances
-Operation via external phantom power (48 V DC current) or internal 1.5 V battery (not included)
-Zinc desktop base with on/off switch
-Mute function: On/off/mute switch
-Polar pattern: Unidirectional
Audio
Frequency response, from
50 Hz
Frequency response, to
16000 Hz
Output impedance
250 ohm
Electrical
DC Volts, min
48 V
DC Volts, max
48 V
Mechanical
weight
1.00 kg

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00089404.pdf
