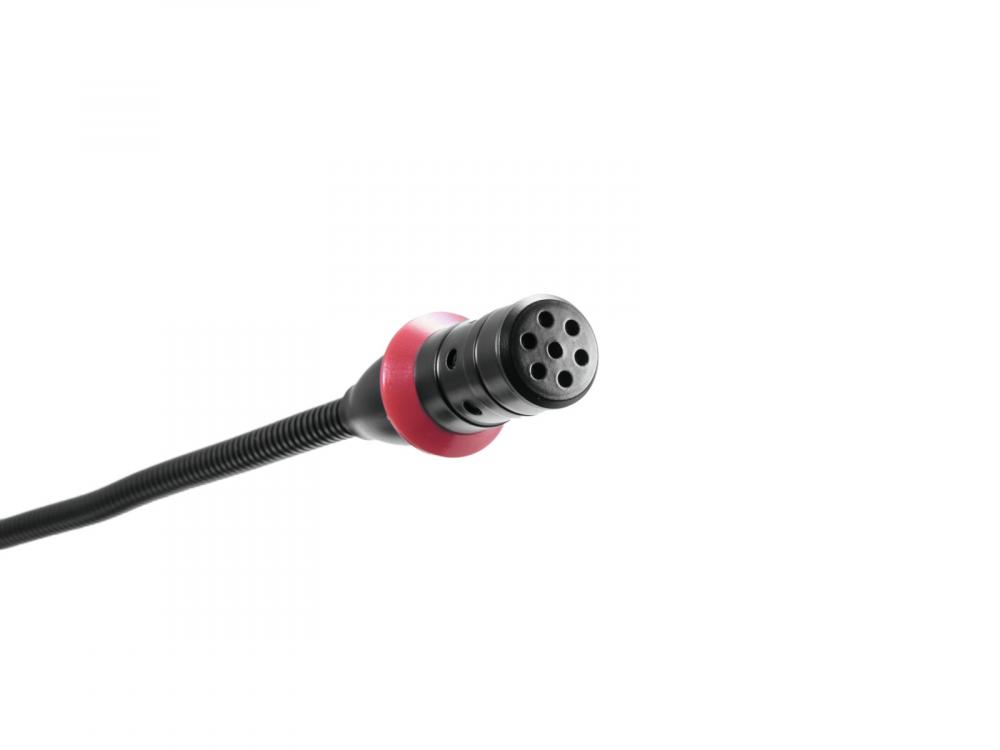

OMNITRONIC MIC SHC-2 Gooseneck Microphone

OMNITRONIC

1
2

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC MIC SHC-2 Gooseneck Microphone

Info
order code
13030926
product link
EAN
4026397621440
Product Name
OMNITRONIC MIC SHC-2 Gooseneck Microphone
technical overview
Type: Condenser
Polar pattern: Cardioid
Sensitivity: -40 dB (±3 dB)
Output impedance: 600 ohms
Power supply: 48 V DC phantom power or 9 V battery
Connector: 3-pin XLR
Dimensions (L x W x H): Base 142 x 132 x 54 mm
Dimensions (L x W): Microphone 520 x 21 mm
Weight: 1 kg
Phantom power: 48 V DC; Or intern battery 9 V V DC
Frequency range: 80 - 15000 Hz
main features
Electret gooseneck microphone
-Conference microphone with condenser technology
-For conference systems, speaker desks or as PA microphone
-Optimum speech intelligibility even at greater distances
-Operation via external phantom power (48 V DC voltage) or internal 9 V battery (not included)
-Gooseneck bends at two positions
-Color ring glows during operation
-Metal desktop base with on/off switch
-Mute function: On/off/mute switch
Audio
Frequency response, from
80 Hz
Frequency response, to
15000 Hz
Output impedance
600 ohm
Electrical
DC Volts, min
48 V
DC Volts, max
48 V
Mechanical
weight
1.00 kg
width
132.00 mm
height
54.00 mm
length
142.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00112019.pdf
