Info | |
---|---|
order code |
13055512
|
product link | |
EAN |
4026397233452
|
Product Name |

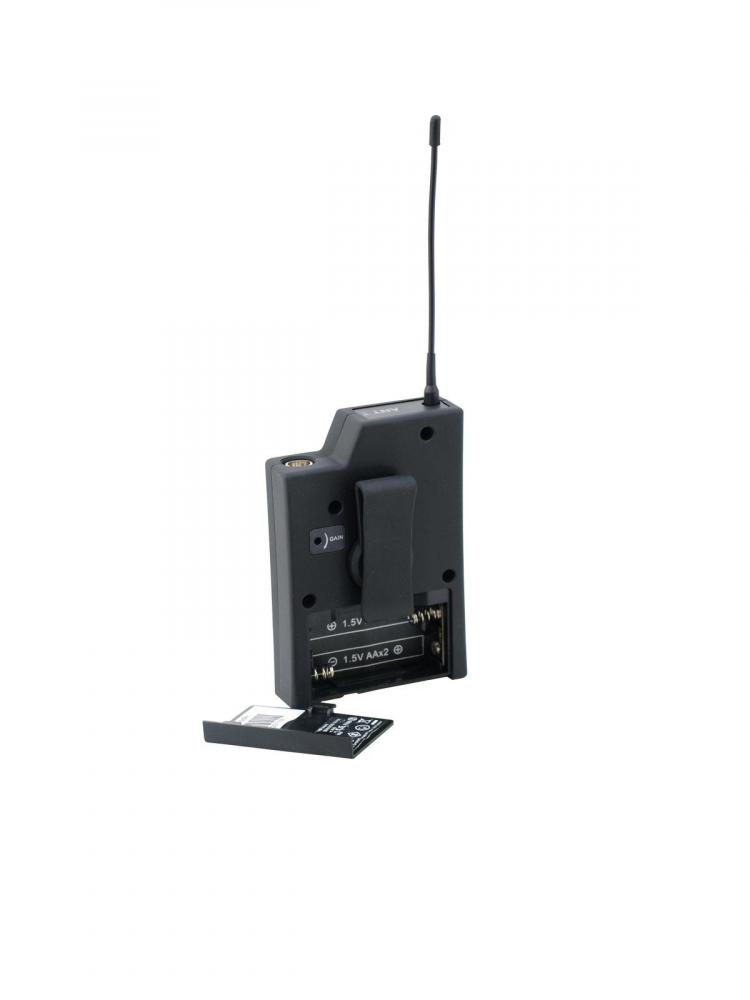

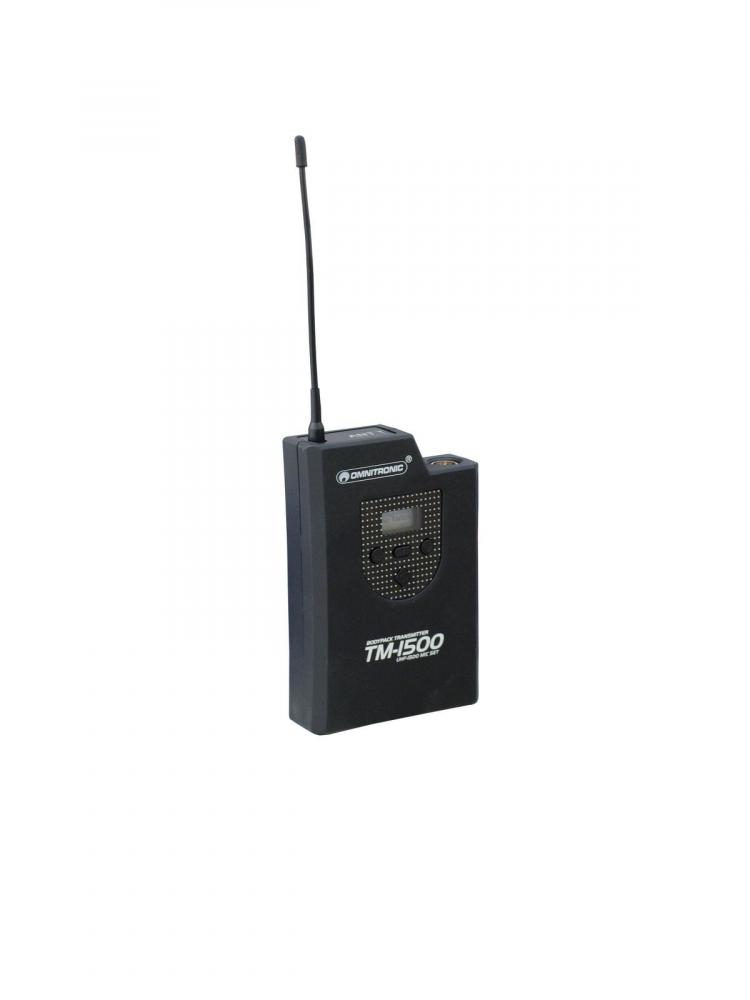

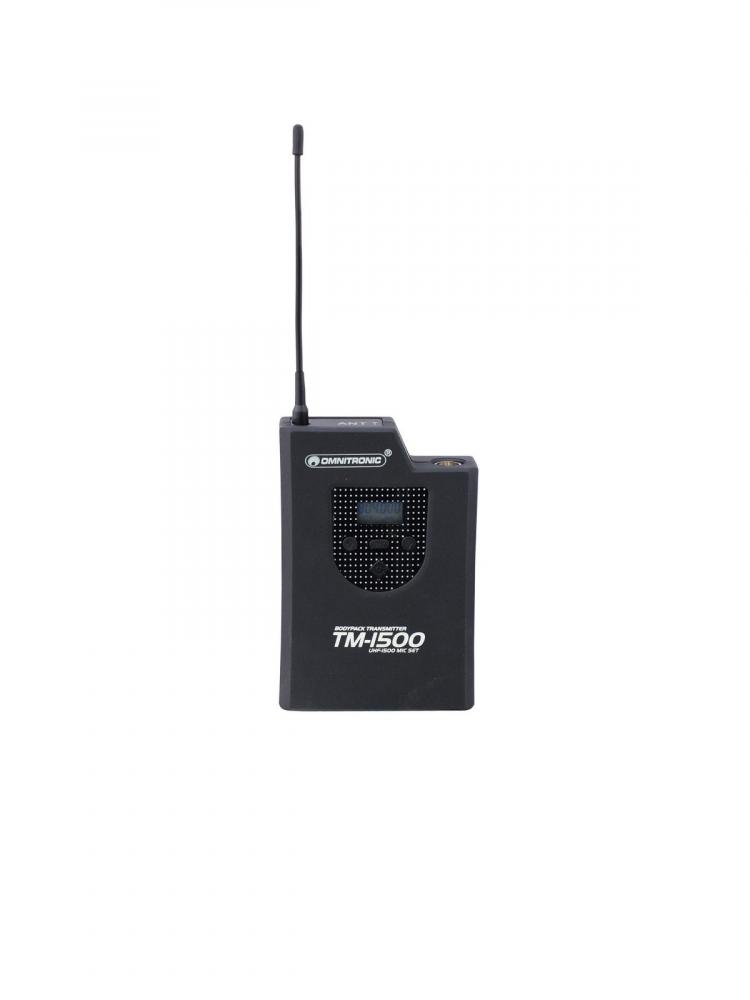

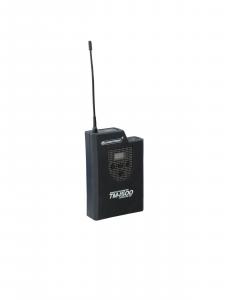

OMNITRONIC TM-1500 Pocket transmitter
|
technical overview |
Carrier frequency: UHF 792.500-814.000 MHz Channel 61: 792.500-797.900 MHz Channel 62: 798.100-805.900 MHz Channel 63: 806.100-813.900 MHz Modulation: FM Frequency stability: ±0,005 % T.H.D.: AF response: 50-18000 Hz Maximum deviation: ±48000 Hz RF power output: 10 mW Coverage: 200 m (with line-of-sight) Power supply: 2 x 1.5 V Mignon batteries (type AA) Current consumption: Battery life: approx. 8 hours Audio input: Mini XLR Dimensions (L x W x H): 110 x 75 x 35 mm Antenna (L): 105 mm Frequency band: UHF 792 - 814 MHz Weight: 0,17 kg Height: 11 cm Depth: 3,5 cm Width: 7,5 cm Power connection: Battery/battery pack |
main features |
Universal multifrequency pocket transmitter -Transmitts microphone signals to a receiver with the same carrier frequency -Operation in the low-interference UHF band (792,500-814000 MHz) -Up to 8 pocket transmitters with 8 receivers can be operated simultaneously -Frequency and sensitivity switchable via mini switches -Can also be used for direct instrument pickup -500 carrier frequencies switchable in 50 kHz steps -LCD display with battery capacity and frequency -Battery capacity transmission to receiver -Lock function for preventing unintented shutoff -For 2 x 1.5 V mignon batteries (type AA) -Operation range 200 meters -Connection via mini XLR socket -A lavalier microphone or a headset microphone can be ordered separately -License-free and approved in Germany -Mute function: On/off/mute switch -Power connection: Battery/battery pack |
Mechanical | |
weight |
0.17 kg
|
width |
75.00 mm
|
height |
35.00 mm
|
length |
35.00 mm
|
