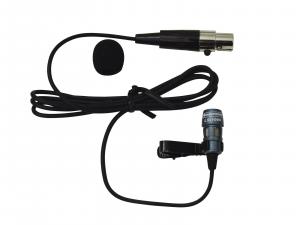

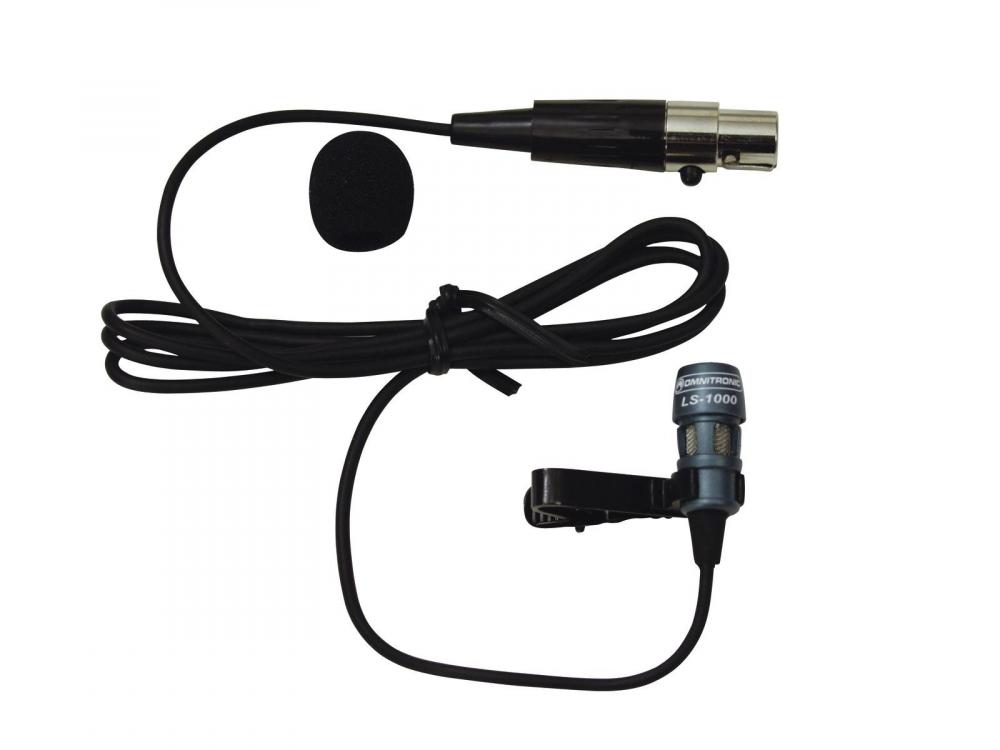

OMNITRONIC LS-1000 XLR Lavalier Mic
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC LS-1000 XLR Lavalier Mic
| Info | |
|---|---|
| order code |
13056020
|
| product link | |
| EAN |
4026397142761
|
| Product Name |
OMNITRONIC LS-1000 XLR Lavalier Mic
|
| technical overview |
Type: Electret Directivity pattern: Cardioid Sensitivity: -70 dB (±3 dB) Impedance: 2.2 kohms (±30 %) Power supply: 1.5-10 V DC Current consumption: approx. 0.5 mA Connection: 3-pin mini XLR plug Cable length: approx. 1 m Weight: 0,02 kg Polar pattern: Unidirectional Frequency range: 100 - 15000 Hz Diameter: 1,3 cm Length: 4,5 cm |
| main features |

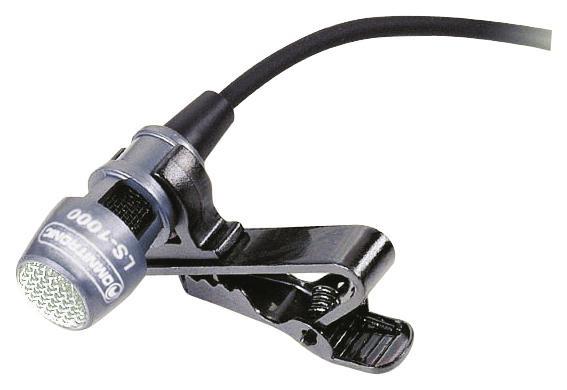

Inconspicuous tie-clip microphone -For attaching to the user's tie, shirt or collar -Provides high-quality voice pickup for public speaking, theater, or business presentations -Connection with the TM-1000 pocket transmitter via 3-pin mini XLR plug -Delivery includes foam windscreen -Only 20 g weight -Polar pattern: Unidirectional |
| Audio | |
| Frequency response, from |
100 Hz
|
| Frequency response, to |
15000 Hz
|
| Electrical | |
| AC Volts, min |
5 V
|
| AC Volts, max |
10 V
|
| DC Volts, min |
1 V
|
| DC Volts, max |
10 V
|
| Mechanical | |
| weight |
0.02 kg
|
| length |
50.00 mm
|
| outer diameter |
13 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00000277.pdf |
