OMNITRONIC HS-1100 XLR Headset Microphone

OMNITRONIC

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC HS-1100 XLR Headset Microphone

Info
order code
13056035
product link
EAN
4026397210262
Product Name
OMNITRONIC HS-1100 XLR Headset Microphone
technical overview
Type: Condenser microphone
Directivity pattern: Cardioid
Sensitivity: -55 dB (±3 dB)
Impedance: 1.5 kohms (±30 %)
Power supply: 1.5-10 V DC
Current consumption: approx. 0.5 mA
Connection: 3-pin mini XLR plug
Cable length: approx. 1.2 m
Dimensions: 250 x 120 x 150 mm
Weight: 0,02 kg
Polar pattern: Unidirectional
Frequency range: 50 - 18000 Hz
Height: 15 cm
Depth: 12 cm
Width: 25 cm
Material: Metal
main features

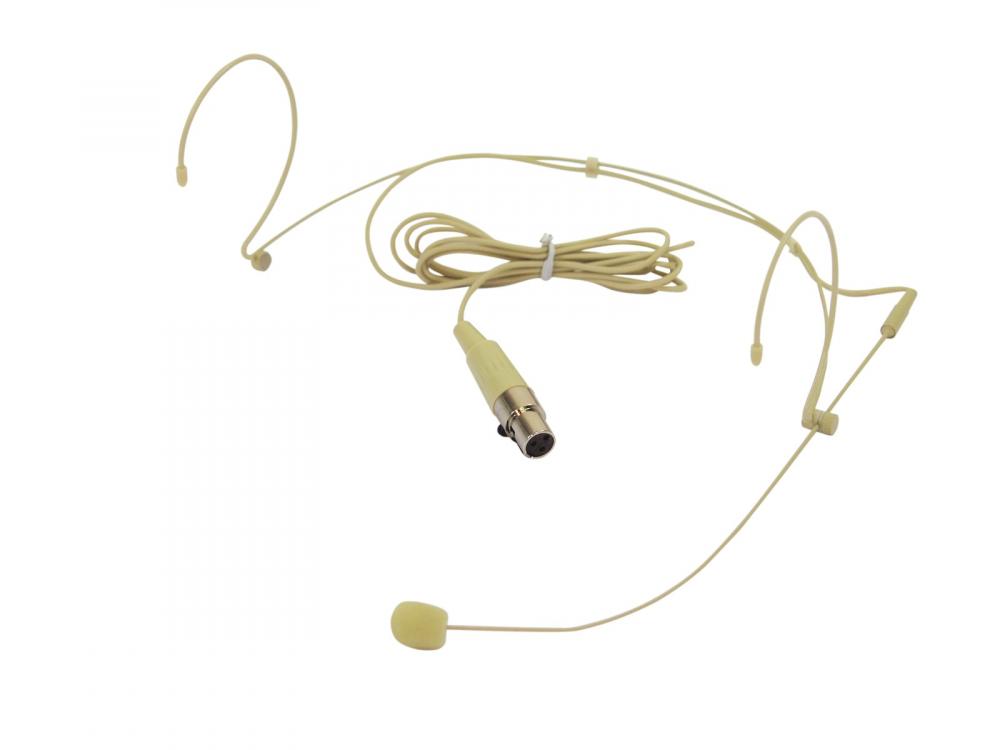

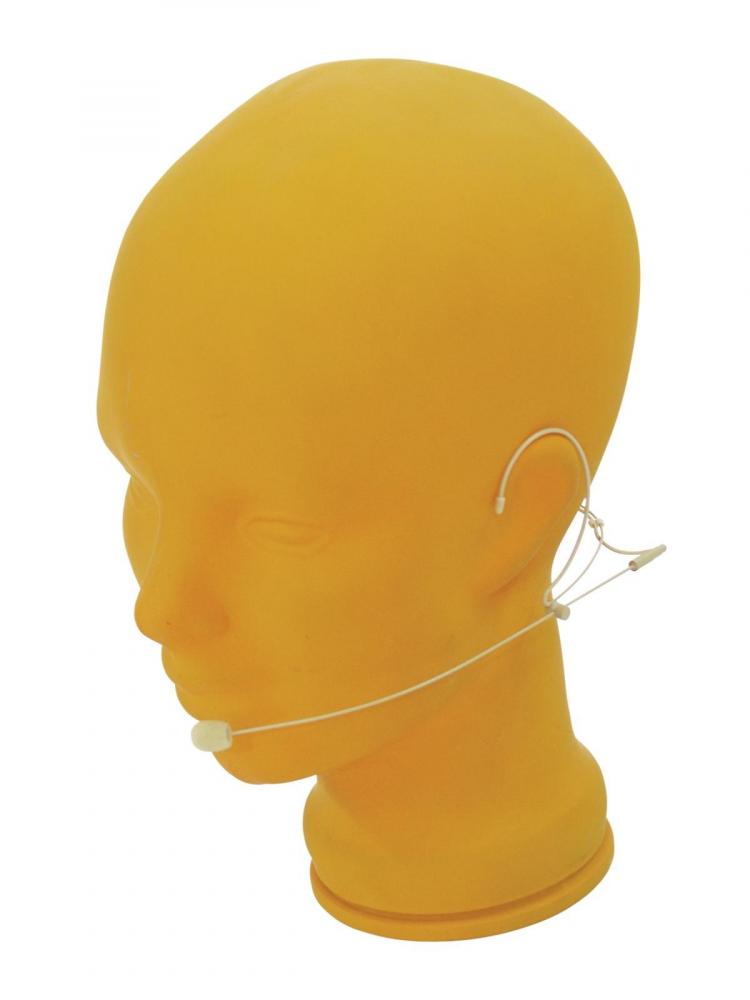

Lightweight skin-coloured headset microphone (condenser)
-Only 18 g weight for optimum wearer comfort
-With adjustable microphone boom for exact positioning of the microphone capsule
-Adjustable cable retainer for hidden cable run
-Provides high-quality voice pickup for applications requiring hands-free operation, such as aerobics or percussion
-Connection via 3-pin mini XLR plug
-Delivery includes foam windscreen
-Mute function: On/off/mute switch
-Polar pattern: Unidirectional
Audio
Frequency response, from
50 Hz
Frequency response, to
18000 Hz
Electrical
AC Volts, min
5 V
AC Volts, max
10 V
DC Volts, min
1 V
DC Volts, max
10 V
Mechanical
weight
0.02 kg
width
120.00 mm
height
150.00 mm
length
120.00 mm
enclosure material
Metal

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00031357.pdf
