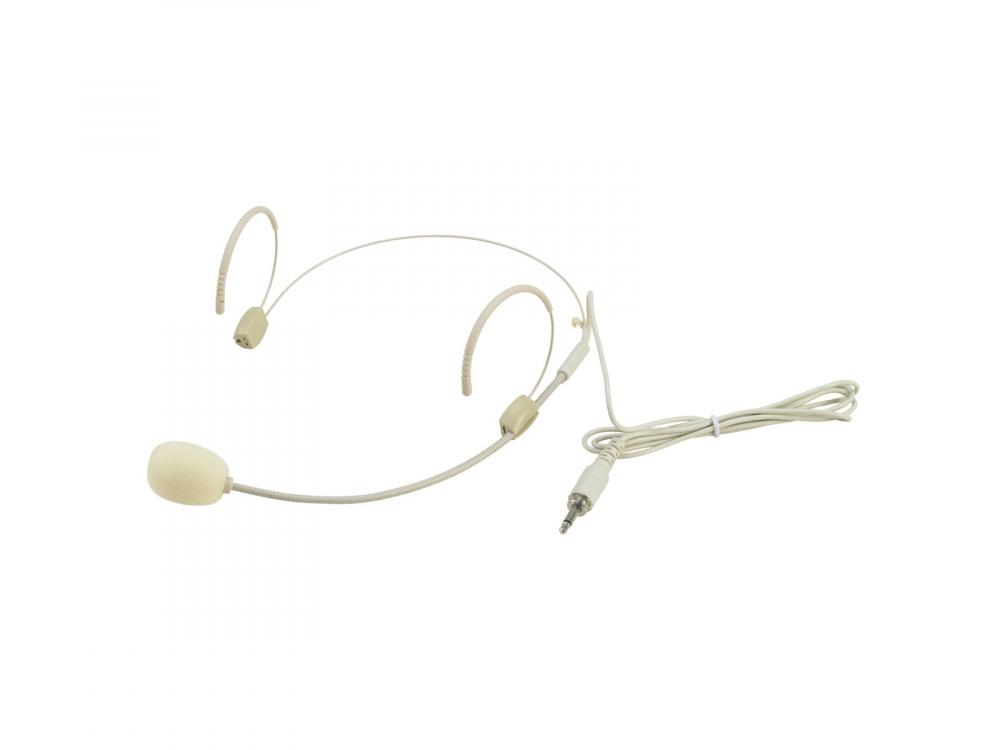

OMNITRONIC UHF-200 HS Headset Microphone
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC UHF-200 HS Headset Microphone
| Info | |
|---|---|
| order code |
13063221
|
| product link | |
| EAN |
4026397499612
|
| Product Name |
OMNITRONIC UHF-200 HS Headset Microphone
|
| technical overview |
Type: Condenser Directivity pattern: Cardioid Sensitivity: 53 dB Impedance: 680 ohms S/N ratio: >28 dB Power supply: 1-10 V DC Connection: cable with jack plug Cable length: approx. 1.2 m Capsule: 9.7 x 5 mm Weight: 0,03 kg Polar pattern: Unidirectional Power connection: Mains Input Socket (M) Frequency range: 20 - 20000 Hz Material: Metal |
| main features |
Headset for UHF-200BP Bodypack -Cardioid condenser microphone for UHF 200 BP bodypack -Lightweight design for optimum wearer comfort -One-sided cable run -Connection cable with 3.5 mm jack screw connection -Foam windscreen -Skin-colored -Polar pattern: Unidirectional -Power connection: Mains Input Socket (M) |
| Audio | |
| Frequency response, from |
20 Hz
|
| Frequency response, to |
20000 Hz
|
| impedance |
680 ohm
|
| Signal to Noise Ratio |
28.00 dB
|
| Electrical | |
| AC Volts, min |
1 V
|
| AC Volts, max |
10 V
|
| DC Volts, min |
1 V
|
| DC Volts, max |
10 V
|
| Mechanical | |
| weight |
0.03 kg
|
| enclosure material |
Metal
|
