| Info | |
|---|---|
| order code |
13075013
|
| product link | |
| EAN |
4026397294491
|
| Product Name |
OMNITRONIC TM-250 Transmitter VHF174.100
|
| technical overview |
Carrier frequency: VHF 174.100 MHz Modulation: FM, F3F Frequency stability: T.H.D.: Band width: 40-15 kHz (±3 dB) Maximum deviation: ±25 kHz RF power output: 8.5 mW Power supply: 1 standard 9 V battery Battery life: approx. 6 hours Frequency band: VHF Weight: 0,08 kg Polar pattern: Unidirectional Height: 10,7 cm Depth: 3,2 cm Width: 6,5 cm Power connection: Battery/battery pack Material: Plastic |
| main features |

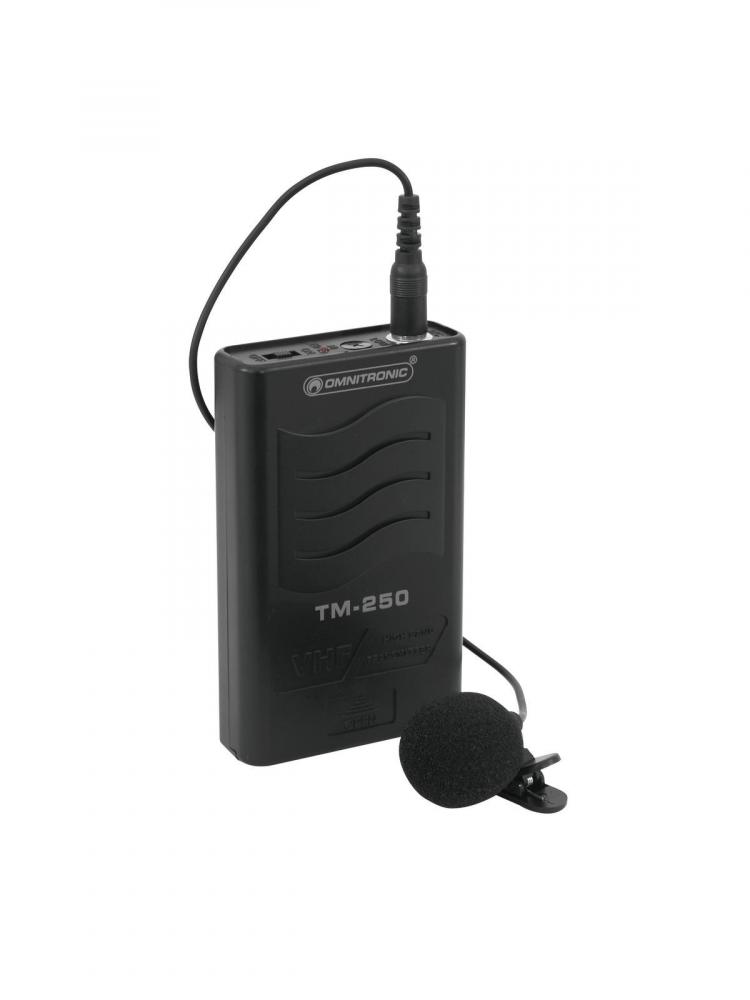

VHF pocket transmitter set -Set includes transmitter and lavalier microphone -Matches receiver VHF-450 with the same carrier frequency -Operation with fixed VHF frequency 174.100 MHz -On/Off/Mute operation selector -LED indicator for battery capacity -Transmitting power 8.5 mW -3.5 mm jack (1/8") screw connection to headset or lavalier mic -Power supply via 9 V battery (supplied) -License-free and approved in Germany and other EU countries -Mute function: On/off/mute switch -Polar pattern: Unidirectional -Power connection: Battery/battery pack |
| Mechanical | |
| weight |
0.08 kg
|
| width |
65.00 mm
|
| height |
107.00 mm
|
| length |
32.00 mm
|
| enclosure material |
Plastic
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00076022.pdf |
