Info | |
---|---|
order code |
20000018
|
Product Name |

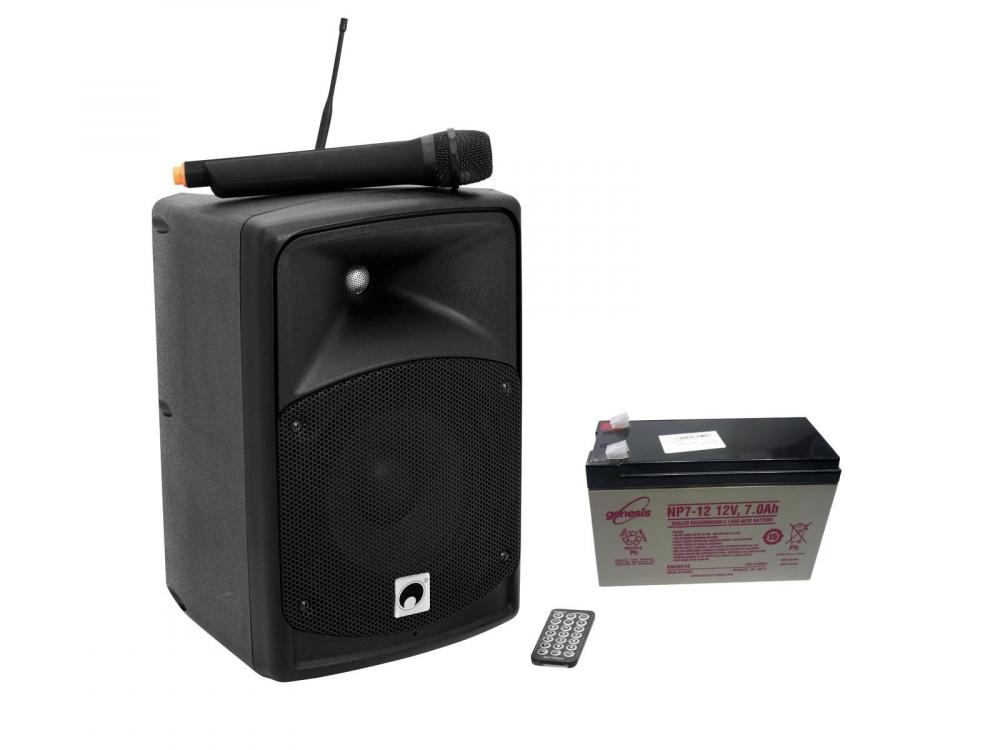

OMNITRONIC Set WAMS-08BT + Battery
|
product link | |
EAN |
4026397570854
|
technical overview |
13106991 OMNITRONIC WAMS-08BT Wireless PA System Power supply: 100-240 V AC, 50/60 Hz or 12 V DC via rechargeable battery or external source Rec. battery (accessory): 12 V DC, 7 Ah Battery operation: 3-4 hours Recharging time: 4-6 hours Dimensions (H x W x D): 410 x 270 x 300 mm Amplifier power: 40 W RMS, 60 W max. Inputs: Mic, mono: combination XLR/6.3 mm jack Line, mono: 6.3 mm jack Line, stereo: stereo RCA and 3.5 mm jack Output: Line, mono: 6.3 mm jack Speaker system: Components: 20 cm woofer (8"), 2.5 cm horn (1") Maximum SPL: 106 dB Sensitivity: 90 dB Reception module: Carrier frequency: 863,975 MHz Range: approx. 30 m Wireless microphone: Carrier frequency: 863.975 MHz Frequency stability: ±0.005 % RF power output: 10 mW Polar pattern: omnidirectional Range: approx. 30 m Battery: 2 x 1.5 V AA Battery life: 13 hours Dimensions (D x L): 40 x 260 mm Bluetooth: Carrier frequency: 2.4 GHz Range: approx. 10 m Audio player: Playback format: MP3, WMA Available storage media: USB devices and SD(HC) cards up to 32 GB File system: FAT32 Power consumption: 40,00 W Weight: 6,845 kg Size of woofer: (8") ca. 20 cm Frequency range: 62 - 18000 Hz Height: 41 cm Width: 27 cm Power connection: Battery/battery pack; Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Depth: 30 cm Power supply: 110-240 V AC, 50/60 Hz 13106993 ACCESSORY Battery 12V/7000mAh Voltage: 12 V DC Capacity: 7 Ah Contact width: 5 mm Dimensions (L x W x H): 161 x 65 x 100 mm Weight: 1,90 kg Height: 10 cm Depth: 6,5 cm Width: 16,1 cm |
main features |
13106991 OMNITRONIC WAMS-08BT Wireless PA System Portable 8" PA system with UHF receiver unit, audio player,Bluetooth and 60 watts power -Portable all-in-one PA system for mobile use -Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms -4-channel power mixer (40 W RMS) and 2-way speaker system with a 20 cm woofer (8") -MP3 player with Bluetooth receiver and IR remote control -SD card slot and USB input -Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth -Integrated UHF receiver unit and matching wireless microphone -Mains operation or battery operation for up to 4 hours of music playing -Integrated automatic charging of the battery -Lead acid battery optionally available (13106993) -2 mono input channels mic/line with adjustable echo effect -1 stereo stereo input channel for line signal sources e.g. CD players and notebooks -Common 2-band EQ for highs and lows -Link output for the combination of several amplifier systems -Jack for external 12V battery operation (e.g. car battery) -Black plastic enclosure with metal grille and carrying handle -Operation of the hand-held microphone via 2 x AA batteries (not included) -Flange for speaker stand installation etc. -License-free and approved in the EU -Power connection: Battery/battery pack; Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Bluetooth Microphone -Mute function: On/off/mute switch 13106993 ACCESSORY Battery 12V/7000mAh Maintenance-free lead acid battery 7 Ah -Rechargeable -High energy densitiy -Long life -Maintenance-free -Sealed leak proof construction -Suitable for 13106991 OMNITRONIC WAMS-08BT Wireless PA system, 13106955 OMNITRONIC MES-12BT2 Drahtlos-PA-System, 13106970 OMNITRONIC MOM-10BT4 Modular Wireless PA System etc. -Made in Europe |
Audio | |
Frequency response, from |
62 Hz
|
Frequency response, to |
18000 Hz
|
Electrical | |
power consumption watt, max |
40.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
Battery runtime (max) |
4.00 h
|
Battery recharge time (max) |
6.00 h
|
Mechanical | |
weight |
6.85 kg
|
width |
270.00 mm
|
height |
410.00 mm
|
length |
300.00 mm
|
