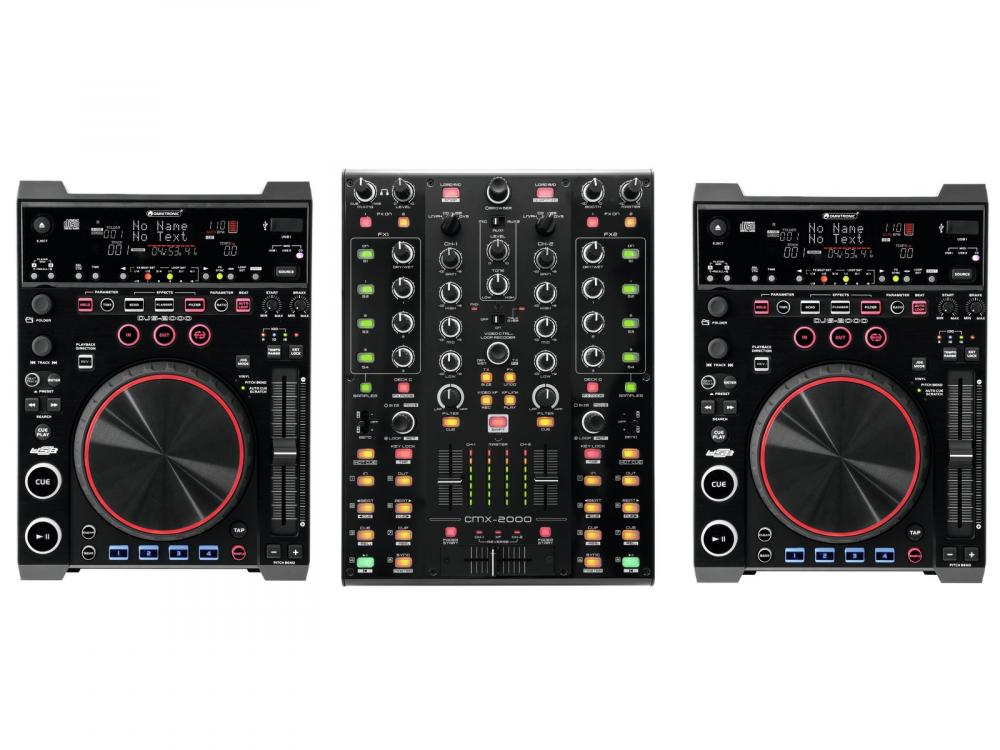

OMNITRONIC Set CMX-2000 + 2x DJS-2000

OMNITRONIC

1

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC Set CMX-2000 + 2x DJS-2000

Info
order code
20000394
Product Name
OMNITRONIC Set CMX-2000 + 2x DJS-2000
product link
EAN
4026397620122
technical overview
11045060 OMNITRONIC CMX-2000 2+1-channel MIDI controller
Power supply: 100-240 V AC, 50/60 Hz
Inputs:
Line: 2 x stereo RCA
Line/phono: 2 x stereo RCA, switchable
DJ microphone: combination XLR/6.3 mm jack, bal.
Aux: 3.5 mm jack and stereo RCA
Outputs:
Master: XLR L/R and stereo RCA
Booth: stereo RCA
Headphones output: 3.5 mm and 6.3 mm jack
USB port: 2.0, type B
Converter: 16 bits
Sample rate: 48 kHz
Faderstart: 2 x 3.5 mm jack
Dimensions: 360 x 265 x 105 mm
Weight: 4 kg
Power consumption: 14 W
Width: 36 cm
Depth: 26,5 cm
Height: 10,5 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 110-240 V AC, 50/60 Hz
10602299 OMNITRONIC DJS-2000 DJ Player
Power supply: 100-240 V AC, 50/60 Hz
Type: CD/MP3 player and MIDI controller
Available disc: CD/-R/-RW in CD-DA and MP3 format
Available storage media: USB devices up to 32 GB (FAT32)
Playback format: MP3, WAV
Frame accuracy: 1/75 sec
Pitch adjustment: ±6 %, ±10 %, ±16 % (MP3 file), ±100 % (audio CD)
Display: ID3 tags, elapsed time, remain time (MP3 file), total remain time (audio CD)
Channel separation: 91 dB
Distortion: 0.01 %
S/N ratio: 126 dB
Audio output: stereo RCA/2 V
USB ports: 2 x type A
MIDI connection: USB type B
Fader start/relay mode: 3.5 mm jack
Dimensions (W x D x H): 218 x 296 x 104 mm
Depth: 29,6 cm
Height: 10,4 cm
Power consumption: 16,00 W
Weight: 2,5 kg
Audio player: USB + CD player (ID3 tag) Seamless loop Anti-shock
Frequency range: 17 - 20000 Hz
Width: 21,8 cm
Power supply: 110-240 V AC, 50/60 Hz
main features
11045060 OMNITRONIC CMX-2000 2+1-channel MIDI controller

Digital DJ mixer and controller incl. Virtual DJ 7 LE + DJ One Start software
-2-channel DJ mixer/MIDI controller bundled with Virtual DJ and One DJ
-Optimized layout for Virtual DJ and Traktor PRO 2 - Virtual DJ 7 LE voucher included
-Comes with free voucher for One DJ Start Edition
-Traktor PRO 2 and Serato Scratch Live mappings available with full support for scratch and sample decks
-Flexibly combines stand-alone mixing of analog sources with MIDI control for DJ software
-Built-in DVS audio system for direct use of timecode systems with vinyl or CD in Virtual DJ and other open applications via USB
-2 input channels with routing facility for analog inputs and MIDI decks as desired
-Full-fledged MIDI sections with 2 layers for 4-deck control
-Perfect MIDI control for file browsing, transportation, hot cues, samples, sample recorder, loops, effects, pitch und video transitions
-Advanced setup options for scratch DJs: crossfader and channel faders with adjustable curve and reverse selectors
-Built-in USB sound card 4 IN/4 OUT
-Supports Mac OSX, Windows XP, Vista, 7
-Professional-grade metal chassis with replaceable crossfader (45 mm)
-2 line and 2 line/phono RCA inputs for connecting CD players, turntables and other external hardware
-2 AUX inputs (3.5 mm/6.3 mm jack) connect MP3 players and tablets
-Mic input (XLR/6.3 mm jack) with tone control and talkover
-2 master outputs (XLR/RCA) for PA applications
-Booth output (RCA), independently adjustable
-3.5 mm/6.3 mm jack dual headphones output with cue mix control
-Bright color-coded LED buttons provide optimal visual feedback while triggering loops, samples, effects and cue points
-User-definable LED modes for Serato Scratch Live
-Dual-function audio/video crossfader for video performances within Virtual DJ
-3-band EQ (high, mid, low) and HP/LP filter per channel
-Mixer section switchable between analog mode and MIDI mode
-File selector encoder and 2 load buttons for mouseless music library control
-8 Hot Cue buttons per channel
-Auto Loop function with Beat Jump (Loop Cut), manual Loop In/Out buttons
-FX/sampler units with 4 parameter controls and 4 buttons per channel
-Various controls for GUI, mixer and video
-Shift button for various dual-button operations
-Separate VU meters for master and PFL signal
-Crossfader with faderstart function for compatible CD players
-Compatible to any MIDI-controlled DJ software including Serato Scratch Live, Traktor, Ableton Live
-All MIDI control elements can be edited and freely assigned
-ASIO drivers with minimum latency and high-quality audio characteristics available for download (PC)
-PC connect: Virtual DJ via USB Midi compatible
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)

10602299 OMNITRONIC DJS-2000 DJ Player

Media player and MIDI controller for DJs + One DJ Start software
-DJ CD/MP3 player and software controller bundled with One DJ Start Edition
-Anti-shock, DSP and internal memory
-Audio CD/CD-R/CD-RW/MP3 CD
-2 USB ports for storage media and portable players (FAT 32)
-USB audio link: two connected players can play music from one USB device
-Controls any MIDI-compatible DJ software (e.g. Traktor)
-All control elements are MIDI compatible and can be freely edited and assigned
-Control of 2 virtual decks with a single DJS-2000
-Access music files more easily and quickly via smart music database management with free PC software Database Builder
-Sort USB devices lightning-fast by title, artist, album and genre
-Instant start within 10 ms
-10 seconds anti-shock protection
-Bright dot-matrix VFD display for all functions
-Touch-sensitive jog wheel with adjustable sensitivity and mode selector: scratch, pitch bend and auto cue scratch
-Jog wheel with adjustable LED illumination
-Start and brake speed adjustable
-DSP with beat-synchronized effects (echo, flanger, filter), parameters adjustable
-Automatic beat counter (switchable to manual operation)
-Sampler unit with 4 banks (4 x 5 seconds)
-Internal memory for 2000 cue points of up to 500 CDs
-4 hot cues or hot loops
-Auto cue
-Seamless loop/reloop
-Auto loop, beat-synchronized and adjustable
-Master tempo (tonal pitch remains constant when speed is changed)
-Next track search: select next track while playing the current one
-Folder navigation
-Supports ID3 tags
-Supports WAV format
-System menu for user-defined settings
-Extra-long pitch fader
-Pitch adjustment ±6 %, ±10 %, ±16 %, ±100 %
-Pitch bend buttons
-Fader start
-Relay play
-Single or continuous play
-Reverse play
-Repeat function (repeat folder)
-Indication of elapsed time, remain time (MP3 files) or total remain time (audio CD)
-Bargraph display
-Slot-in drive
-The Database Builder software is available in the manufacturer's download section
-DSP: Digital signal processor Master tempo
-PC connect: Virtual DJ via USB Midi compatible
-Housing design: Desktop console
Connectors
Audio output > RCA / Cinch Stereo-Set (L/R)
yes
Audio output > XLR 3P
yes
Electrical
power consumption watt, max
14.00 W
AC Volts, min
110 V
AC Volts, max
240 V
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
Mechanical
weight
4.00 kg
width
360.00 mm
height
105.00 mm
length
360.00 mm
