Info | |
---|---|
order code |
20000395
|
Product Name |

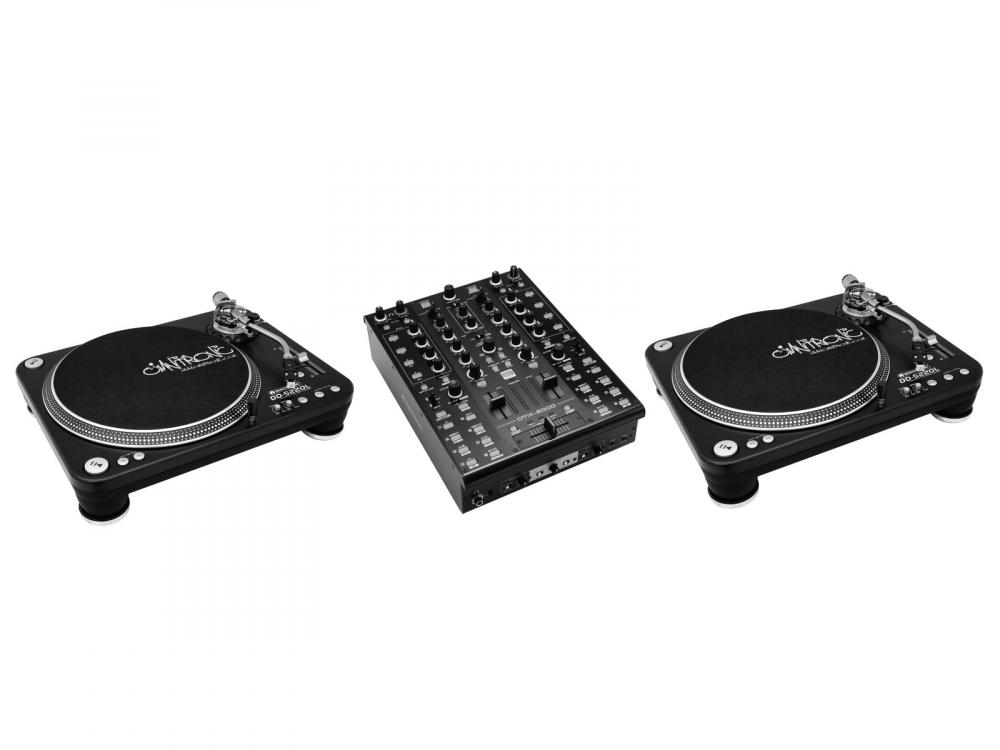

OMNITRONIC Set CMX-2000 + 2x DD-5220L
|
product link | |
EAN |
4026397620139
|
technical overview |
11045060 OMNITRONIC CMX-2000 2+1-channel MIDI controller Power supply: 100-240 V AC, 50/60 Hz Inputs: Line: 2 x stereo RCA Line/phono: 2 x stereo RCA, switchable DJ microphone: combination XLR/6.3 mm jack, bal. Aux: 3.5 mm jack and stereo RCA Outputs: Master: XLR L/R and stereo RCA Booth: stereo RCA Headphones output: 3.5 mm and 6.3 mm jack USB port: 2.0, type B Converter: 16 bits Sample rate: 48 kHz Faderstart: 2 x 3.5 mm jack Dimensions: 360 x 265 x 105 mm Weight: 4 kg Power consumption: 14 W Width: 36 cm Depth: 26,5 cm Height: 10,5 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz 10603003 OMNITRONIC DD-5220L Turntable bk Power supply: 230 V AC, 50 Hz Type: 3-speed full manual turntable Drive method: Quartz-controlled direct drive Motor: Brushless DC motor Turntable platter: d=332 mm, 1400 g Speed: 33 1/3 RPM, 45 RPM and 78 RPM Speed change time: Rotation-direction: Forwards/backwards Pitch adjustment: ±10 %, ±20 %, ±50 % Initial torque: >2.1 kg/cm Wow and flutter: Start time: Brake: Electronic brake Stop time: Rumble: 50 dB DIN B Tonearm: S-shape with Cardan's suspension Tonearm length: 234 mm Adjustable tonearm height: 8-10.5 mm Overhang: 20 mm Adjustable stylus pressure 0-4 g Anti-skating range: 0-7 g Connectors: 1 x stereo RCA Line/phono, switchable Dimensions: 450 x 352 x 148 mm Weight: 11 kg Power consumption: 15,00 W Drive type: Quarz-controlled direct drive Frequency range: 20 - 20000 Hz Height: 15,6 cm Depth: 35,3 cm Width: 45 cm Power connection: Fix Power supply cord with Euro plug (M) Power supply: 230 V AC, 50 Hz |
main features |
11045060 OMNITRONIC CMX-2000 2+1-channel MIDI controller Digital DJ mixer and controller incl. Virtual DJ 7 LE + DJ One Start software -2-channel DJ mixer/MIDI controller bundled with Virtual DJ and One DJ -Optimized layout for Virtual DJ and Traktor PRO 2 - Virtual DJ 7 LE voucher included -Comes with free voucher for One DJ Start Edition -Traktor PRO 2 and Serato Scratch Live mappings available with full support for scratch and sample decks -Flexibly combines stand-alone mixing of analog sources with MIDI control for DJ software -Built-in DVS audio system for direct use of timecode systems with vinyl or CD in Virtual DJ and other open applications via USB -2 input channels with routing facility for analog inputs and MIDI decks as desired -Full-fledged MIDI sections with 2 layers for 4-deck control -Perfect MIDI control for file browsing, transportation, hot cues, samples, sample recorder, loops, effects, pitch und video transitions -Advanced setup options for scratch DJs: crossfader and channel faders with adjustable curve and reverse selectors -Built-in USB sound card 4 IN/4 OUT -Supports Mac OSX, Windows XP, Vista, 7 -Professional-grade metal chassis with replaceable crossfader (45 mm) -2 line and 2 line/phono RCA inputs for connecting CD players, turntables and other external hardware -2 AUX inputs (3.5 mm/6.3 mm jack) connect MP3 players and tablets -Mic input (XLR/6.3 mm jack) with tone control and talkover -2 master outputs (XLR/RCA) for PA applications -Booth output (RCA), independently adjustable -3.5 mm/6.3 mm jack dual headphones output with cue mix control -Bright color-coded LED buttons provide optimal visual feedback while triggering loops, samples, effects and cue points -User-definable LED modes for Serato Scratch Live -Dual-function audio/video crossfader for video performances within Virtual DJ -3-band EQ (high, mid, low) and HP/LP filter per channel -Mixer section switchable between analog mode and MIDI mode -File selector encoder and 2 load buttons for mouseless music library control -8 Hot Cue buttons per channel -Auto Loop function with Beat Jump (Loop Cut), manual Loop In/Out buttons -FX/sampler units with 4 parameter controls and 4 buttons per channel -Various controls for GUI, mixer and video -Shift button for various dual-button operations -Separate VU meters for master and PFL signal -Crossfader with faderstart function for compatible CD players -Compatible to any MIDI-controlled DJ software including Serato Scratch Live, Traktor, Ableton Live -All MIDI control elements can be edited and freely assigned -ASIO drivers with minimum latency and high-quality audio characteristics available for download (PC) -PC connect: Virtual DJ via USB Midi compatible -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) 10603003 OMNITRONIC DD-5220L Turntable bk Direct drive DJ turntable "Ultra Torque" with switchable phono/line output -Direct drive high-torque motor -Quartz-controlled for highest speed precision -3 speeds (33 1/3, 45 and 78 RPM), pitch control ±10 %, ±20 %, ±50 % -Selectable quartz-controlled pitch lock -Quick start -Adjustable start/stop time -2 large start/pause buttons -Reverse run -Plug-in LED target lamp -Adjustable anti-skating -Tone arm height adjustable -Shock-absorbing and adjustable feet -Switchable phono/line output -Extremely resonance-free due to optimally combined components -Platter and motor are directly connected for highest stability -Recessed connections for easy case mounting -Delivery includes headshell, slipmat and RCA cable -Dust cover and pick-up system optionally available -Power connection: Fix Power supply cord with Euro plug (M) |
Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Audio output > XLR 3P |
yes
|
Electrical | |
power consumption watt, max |
14.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
Mechanical | |
weight |
4.00 kg
|
width |
265.00 mm
|
height |
105.00 mm
|
length |
360.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
