Info | |
---|---|
order code |
20000396
|
Product Name |

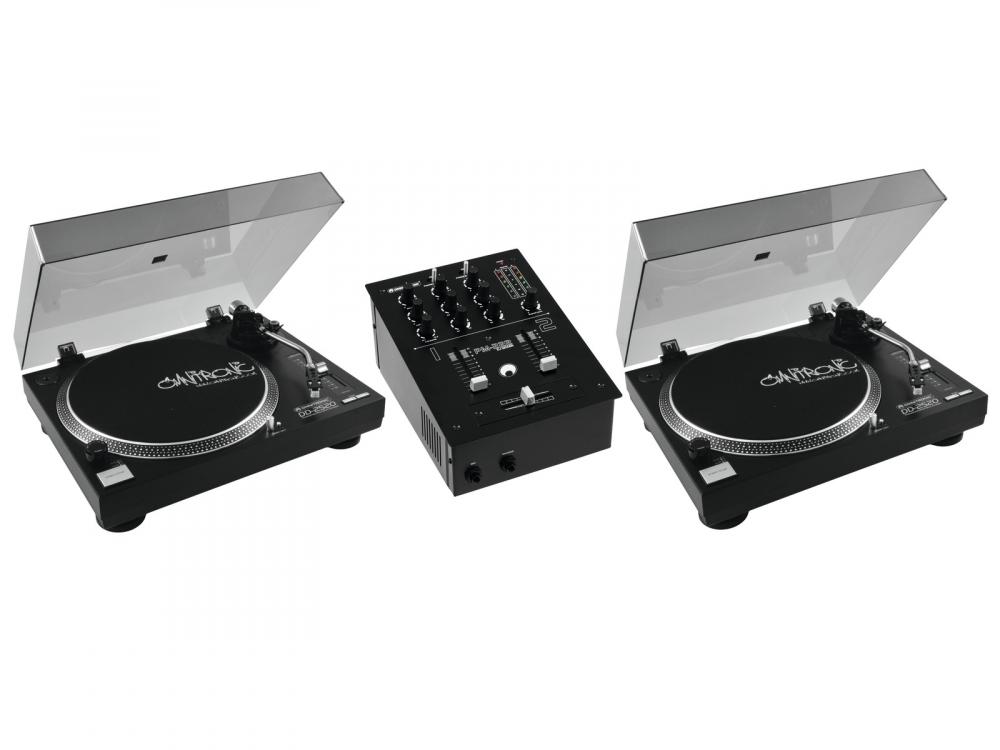

OMNITRONIC Set PM-222 + 2x DD-2520
|
product link | |
EAN |
4026397620177
|
main features |
10006819 OMNITRONIC PM-222 2-Channel DJ Mixer 2-channel DJ mixer -2 input channels with gain control, 2-way equalizer and phono/line switching -DJ microphone input with level control -Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output, with cue mix control -Replaceable crossfader for crossfading between both channels -6-digit stereo LED level meter and master level control -Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack) -Outputs: master and record (stereo RCA) -Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) (provided) 10603060 OMNITRONIC DD-2520 USB Turntable bk Direct-drive DJ turntable with switchable phono/line output -Built-in USB port and additional phono preamplifier, for a high-quality and convenient digitization of analog vinyl records -Driver installation not required, unit is identified automatically -Sampling rates of 44.1 kHz and 48 kHz in stereo, resolution: 16 bits -Incl. software for recording and editing -Precision direct drive -Delivery includes pick-up system -2 speeds, pitch control ±10 % -Large start/stop button -Strobe lamp for exact speed adjustment -Target lamp -Delivery includes removable dustcover -Adjustable anti-skating -Shock-absorbing feet -Switchable output phono/line -USB 1.1 support -Suitable for Windows XP, Vista, 7 and Mac OS X -Power connection: Fix Power supply cord with Euro plug (M) |
technical overview |
10006819 OMNITRONIC PM-222 2-Channel DJ Mixer Power supply: 100-240 V AC, 50/60 Hz Inputs: DJ microphone: 6.3 mm jack Minimum input voltage: 3 mV RMS/ 47 kohms LINE: stereo RCA Minimum input voltage: 150 mV RMS/ 47 kohms PHONO: stereo RCA Minimum input voltage: 3 mV RMS/ 47 kohms Outputs: MASTER: stereo RCA Max. output level: +19 dBu Output voltage: 7 V RMS REC: stereo RCA Output voltage: 2.4V RMS Headphones output: 6.3 mm stereo jack (min. 32 ohms) Tone control: 2 x High: -24 dB to +15 dB/ 12 kHz 2 x Low: -24 dB to +15 dB/ 100 Hz S/N ratio: >70 dB Distortion: Dimensions (L x W x H): 260 x 190 x 137 mm Weight: 2 kg Power consumption: 30,00 W Frequency range: 20 - 20000 Hz Height: 13,7 cm Depth: 26 cm Width: 19 cm Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) Power supply: 110-240 V AC, 50/60 Hz 10603060 OMNITRONIC DD-2520 USB Turntable bk Power supply: 115/230 V, 50/60 Hz Type: Manual turntable Drive method: Direct drive Motor: Brushless 24 V DC motor Speed: 33 1/3 RPM and 45 RPM Change time between speeds: 33 ->45 RPM in 45 ->33 RPM in Pitch adjustment: ±10 % via fader Initial torque: >1.0 kg/cm Start time: Stop time: Wow and flutter: Rumble: 55 dB DIN B Platter: Outer diameter 330 mm Tonearm: S-shape with Cardan's suspension Tonearm length: 230.5 mm Overhang: 16 mm Adjustable stylus pressure 0-4 g Anti-skating range: 0-7 g Phono output level: 1.5-3.6 mV/ 1 kHz 5 cm/sec Line output level: 90-216 mV/ 1 kHz 5 cm/sec Channel separation: >15 dB Output connectors: RCA, USB type B Dimensions: 450 x 350 x 155 mm Weight: 11 kg Power consumption: 12,00 W Drive type: Direct drive Frequency range: 20 - 20000 Hz Height: 15,5 cm Depth: 35 cm Width: 45 cm Power connection: Fix Power supply cord with Euro plug (M) Power supply: 110-240 V AC, 50/60 Hz |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Maximum Output Level |
19.00 dBu
|
Signal to Noise Ratio |
70.00 dB
|
Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Electrical | |
power consumption watt, max |
30.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
power input connector |
Europlug
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
Mechanical | |
weight |
2.00 kg
|
width |
190.00 mm
|
height |
137.00 mm
|
length |
260.00 mm
|
