Info | |
---|---|
order code |
20000397
|
Product Name |

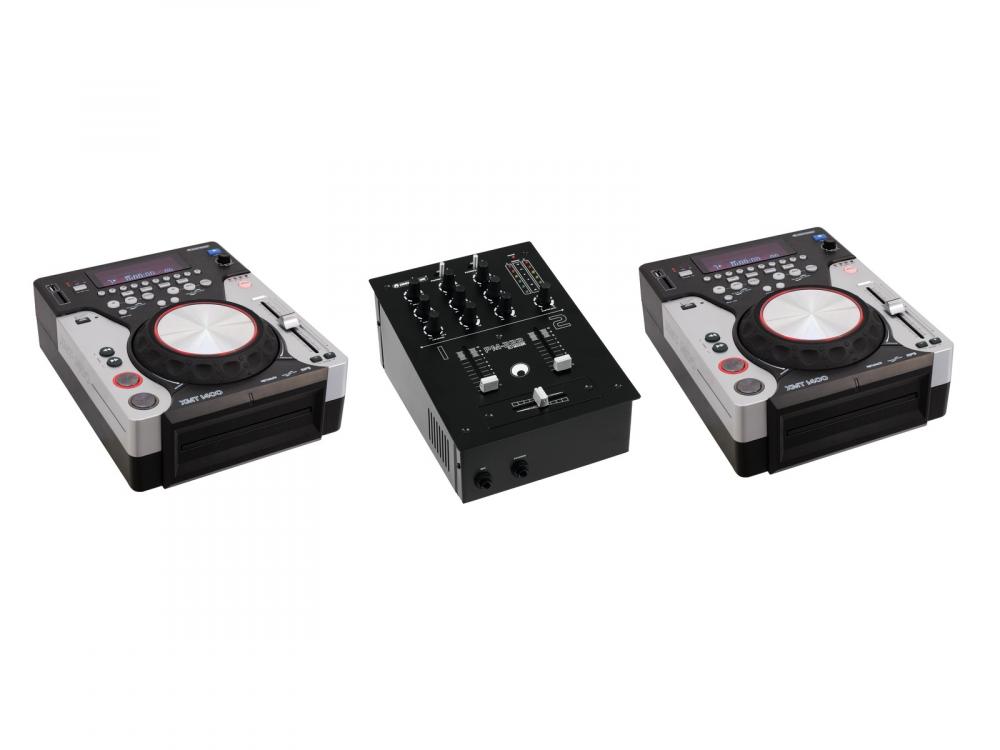

OMNITRONIC Set PM-222 + 2x XMT-1400
|
product link | |
EAN |
4026397620184
|
technical overview |
10006819 OMNITRONIC PM-222 2-Channel DJ Mixer Power supply: 100-240 V AC, 50/60 Hz Inputs: DJ microphone: 6.3 mm jack Minimum input voltage: 3 mV RMS/ 47 kohms LINE: stereo RCA Minimum input voltage: 150 mV RMS/ 47 kohms PHONO: stereo RCA Minimum input voltage: 3 mV RMS/ 47 kohms Outputs: MASTER: stereo RCA Max. output level: +19 dBu Output voltage: 7 V RMS REC: stereo RCA Output voltage: 2.4V RMS Headphones output: 6.3 mm stereo jack (min. 32 ohms) Tone control: 2 x High: -24 dB to +15 dB/ 12 kHz 2 x Low: -24 dB to +15 dB/ 100 Hz S/N ratio: >70 dB Distortion: Dimensions (L x W x H): 260 x 190 x 137 mm Weight: 2 kg Power consumption: 30,00 W Frequency range: 20 - 20000 Hz Height: 13,7 cm Depth: 26 cm Width: 19 cm Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) Power supply: 110-240 V AC, 50/60 Hz 11046035 OMNITRONIC XMT-1400 Tabletop CD Player Power supply: 100-240 V AC, 50/60 Hz Type: CD/USB/SD player Available disc: CD/-R/-RW in CD-DA and MP3 formats (8 and 12 cm) Available storage media: USB devices and SD(HC) cards (max. 32 GB) Pitch adjustment: ±4 %, ±8 %, ±12 %, ±16 % Frame accuracy: 1/75 sec Display: elapsed time, remain time, total remain time (audio CD) artitst, title name, elapsed time, remain time (MP3 file) Distortion: 0.01 %, 1 kHz S/N ratio: 86 dB Frequency range: 20-20000 Hz, ±1 dB Audio output: stereo RCA/ 2 V Dimensions: 310 x 230 x 120 mm Weight: 2,2 kg Power consumption: 20 W Audio player: USB + SD + CD player (ID3 tag) Anti-shock Seamless loop Height: 12 cm Depth: 31 cm Width: 23 cm Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |
10006819 OMNITRONIC PM-222 2-Channel DJ Mixer 2-channel DJ mixer -2 input channels with gain control, 2-way equalizer and phono/line switching -DJ microphone input with level control -Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output, with cue mix control -Replaceable crossfader for crossfading between both channels -6-digit stereo LED level meter and master level control -Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack) -Outputs: master and record (stereo RCA) -Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) (provided) 11046035 OMNITRONIC XMT-1400 Tabletop CD Player DJ player for CD, USB and SD -Tabletop player with scratch function for DJs -Audio CD/CD-R/CD-RW/MP3-CD -USB port for storage media and portable players -SD(HC) card slot -Anti-shock RAM buffer memory -Alphanumeric VFD supports CD text and ID3 tags (artist and title name) -Touch-sensitive scratch jog dial with mode selector: pitch bend, scratch, fast or frame search -Reverse run -Brake effect (as with analog turntables) -Comfortable track selection via 10-digit numerical track input -Folder navigation -Search buttons for fast forward and reverse -Pitch adjustment ±4 %, ±8 %, ±12 %, ±16 % -Pitch bend via jog dial or separate buttons -Manual beat counter -Instant start and cue function with preview -Double loop/reloop function -Single or continuous play -Repeat functions -Title programming -Indication of elapsed time, remain time (MP3 files) or total remain time (audio CD) -Bargraph display -Pitch adjustment is displayed in % -Large play/pause and cue buttons with color illumination -Housing design: Desktop console -Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Maximum Output Level |
19.00 dBu
|
Signal to Noise Ratio |
70.00 dB
|
Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Electrical | |
power consumption watt, max |
30.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
power input connector |
Europlug
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
Mechanical | |
weight |
2.00 kg
|
width |
190.00 mm
|
height |
137.00 mm
|
length |
260.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
