Info | |
---|---|
order code |
20000525
|
Product Name |

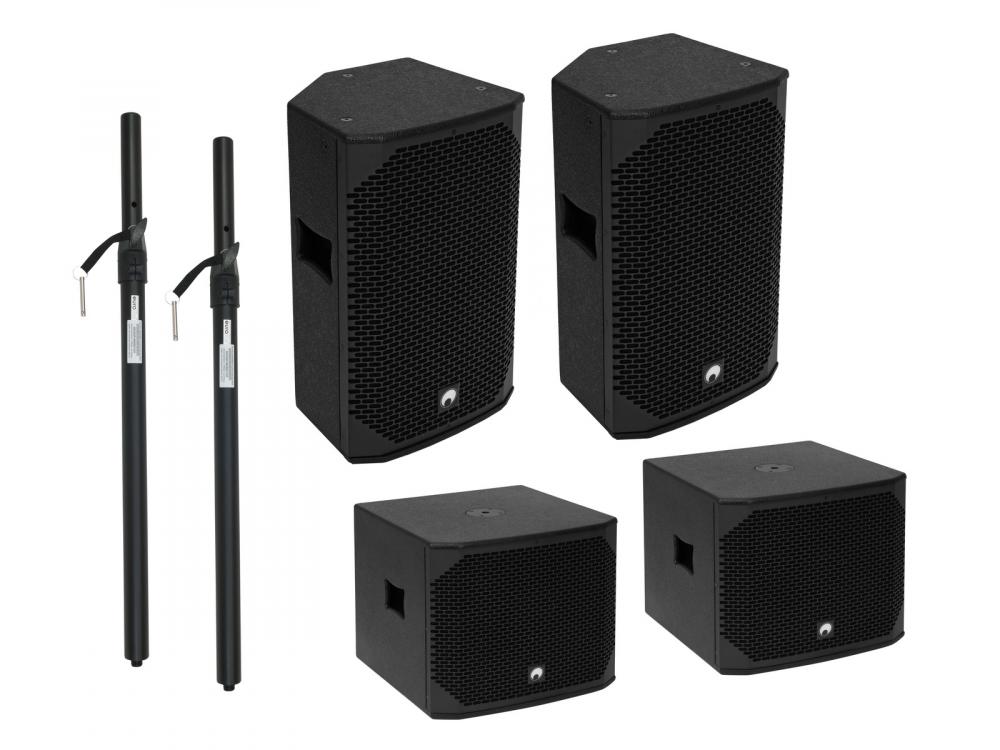

OMNITRONIC PA Set AZX S active
|
product link | |
EAN |
4026397651256
|
technical overview |
11039038 OMNITRONIC AZX-112A PA Subwoofer active 300W Power supply: 230 V AC, 50 Hz Power consumption: 650 W Amplifier power: 300 W RMS Signal input: XLR L/R Parallel output: XLR L/R High-pass output: XLR L/R Sensitivity: 93 dB Crossover frequency: 80-200 Hz Acoustic loading: Bassreflex Amplifier: Class D Dimensions (W x D x H): 575 x 500 x 450 mm Size of woofer: (12") ca. 30 cm Number of bass-woofer: 1 Pc/Pcs Frequency range: 40 - 250 Hz Weight: 21,90 kg Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Width: 50 cm Depth: 57,5 cm Height: 45 cm Material: MDF (Medium-density fibreboard) Power supply: 230 V AC, 50 Hz 11039029 OMNITRONIC AZX-212A 2-Way Top active 250W Power supply: 230 V AC, 50 Hz Power consumption: 650 W Amplifier power: 200 W RMS LF, 50 W RMS HF LF speaker: 30 cm bass/mids (12") with 50 mm voice coil HF speaker: 3,5 mm compression driver (1.35") Input mic/line: combination XLR/6.3 mm jack, bal. Output line: XLR, bal. Sensitivity: 95 dB Frequency range: 55 - 20000 Hz Number of bass-woofer: 1 Pc/Pcs Size of woofer: (12") ca. 30 cm Weight: 19,15 kg Width: 43 cm Depth: 40,5 cm Height: 67 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Material: MDF (Medium-density fibreboard) Power supply: 230 V AC, 50 Hz 60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20 Maximum load: 30 kg Adjustable height: 75-135 cm Tube diameter: 41/35 mm Weight: 1,6 kg Max. height: 1,35 m Min. height: 0,75 m Maximum carrying capacity: 30 kg Color: Black Attachment: Flange system 35mm |
main features |
11039038 OMNITRONIC AZX-112A PA Subwoofer active 300W Active 12" PA bassreflex subwoofer, 300 W -30 cm (12") bass speaker with 63 mm voice coil -Class D amplifier with 300 W -XLR inputs and parallel outputs L/R -XLR output L/R with high-pass filter -Adjustable crossover frequency 80-200 Hz -Phase reversal switch -Limiter for overload protection -Limit, signal and power LED -M20 metal flange for top speakers -Carrying handles -Housing made of 15 mm MDF -Scratch-resistant lacquer surface -Impact-resistant steel grille with acoustic foam -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) 11039029 OMNITRONIC AZX-212A 2-Way Top active 250W Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS -2-way bassreflex enclosure with 30 cm woofer and 3.5 cm titanium driver -Class D biamp amplifier (LF 200 W, HF 50 W) -Balanced signal input XLR/6.3 mm jack, switchable mic/line -XLR output for linking further active speaker systems -Master control with 2-band EQ -HF adjustment -4 dB, -2 dB, 0 dB -Limiter for overload protection -Limit, signal and power LED -Housing made of 15 mm MDF -Scratch-resistant lacquer surface -Carrying handles -Impact-resistant steel grille with acoustic foam -M10 threaded inserts for suspended installation -Dual flange with 0° and 5° tilt angle enables flexible positioning -Applications: standing, as monitor, on a subwoofer or speaker stand, suspended -Master equalizer: 1 x 2 band tone control -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) 60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20 Variable distance tube with M20 thread, height adjustable 75-135 cm -Connecting tube for satellite systems -Height adjustable 75-135 cm -Locking screw and bolt -M20 thread -Powder-coated steel version -Color: black -Thread: M20 |
Audio | |
Frequency response, from |
40 Hz
|
Frequency response, to |
250 Hz
|
Electrical | |
power consumption watt, max |
650.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
21.90 kg
|
width |
500.00 mm
|
height |
450.00 mm
|
length |
500.00 mm
|
enclosure material |
MDF (Medium-density fibreboard)
|
